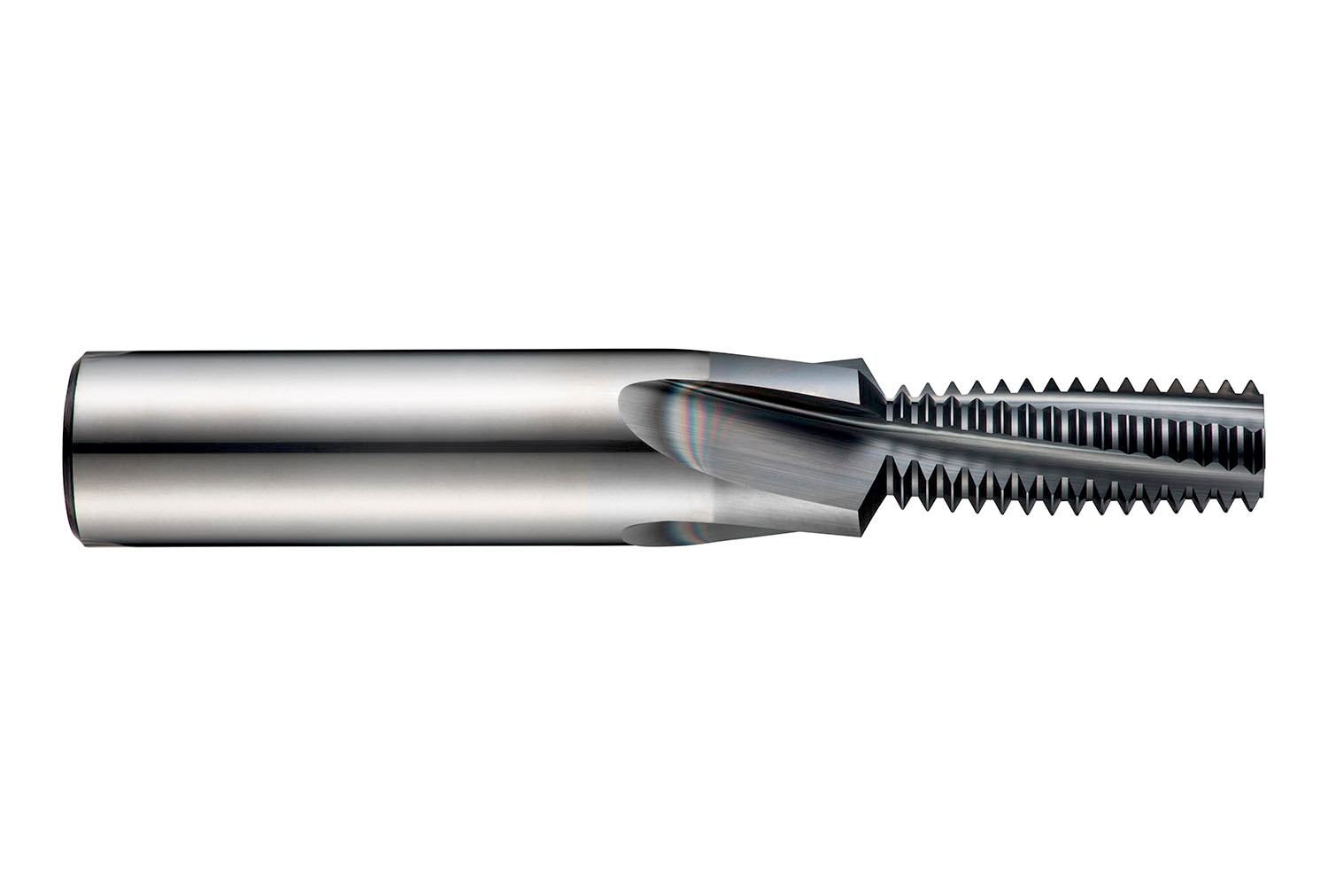

Thread and chamfer milling cutter, for ISO-Metric thread = M16 with 2.00 mm pitch, dimensions according to DORMER standard with 4 flutes, 13.6mm cutting diameter and 18mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 10° helix angle for milling a maximum of 34mm long right or left hand internal thread in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron and non-ferrous metals
- Product Name ISO: J20013.6X2.0
- Ordering Code ANSI: J20013.6X2.0
- EDP Number: 46821168
- Coating: Alcrona Pro
- Material Code (BMC): HM
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), N - Non-ferrous metals (metals including alloys without an appreciable amount of iron), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)

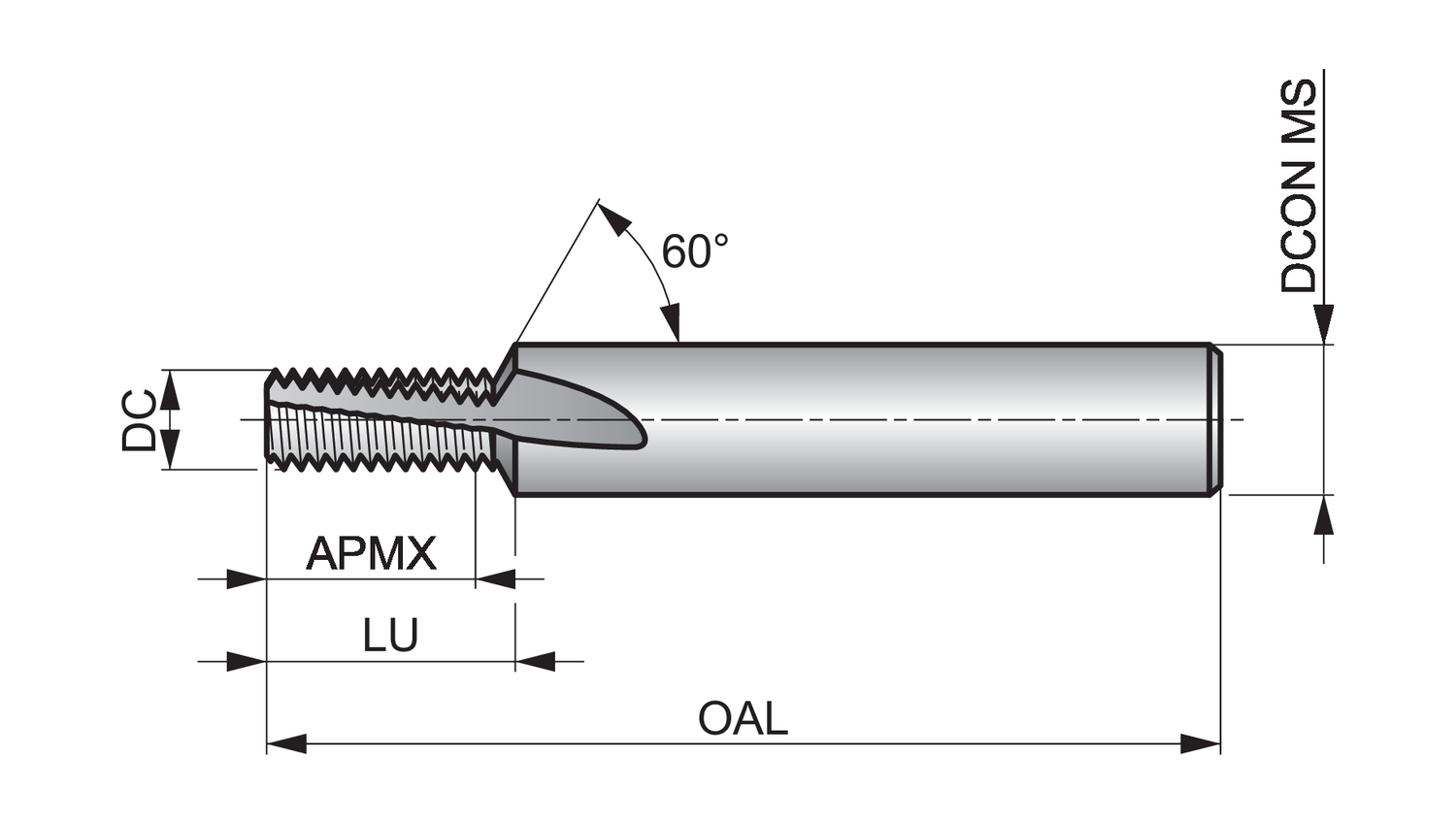

| Product Measurement Standard | Metric |
| Cutting Diameter (Mm.) | 13.6 |
| Cutting Diameter (In.) | 0.5354 |
| Depth of Cut Maximum (Mm.) | 34 |
| Connection Diameter (Mm.) | 18 |
| Overall Length (Mm.) | 92 |
| Usable Length (Mm.) | 36.2 |
| Connection Diameter (In.) | 0.7087 |
| Overall Length (In.) | 3.622 |
| Material Code | HM |
| Coating | Alcrona Pro |
| Shank | Cylindrical Shank DIN 6535 HA |
| Flute Count | 4 |
| Thread Form | M - Metric Coarse |
| Flute Geometry | Spiral Flute Geometry |
| Cutting Direction | Right |
| Thread Diameter Size | M16 |
