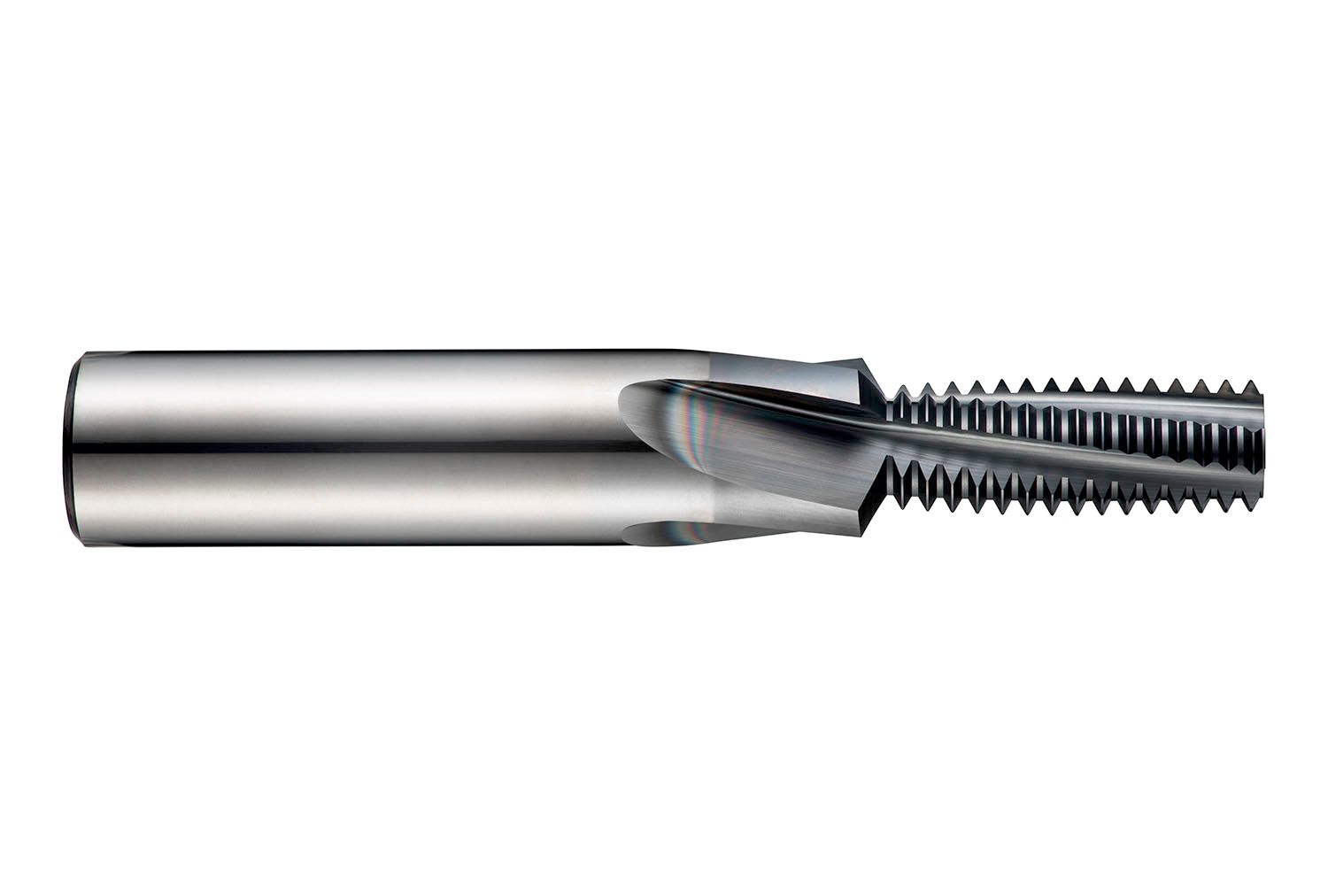

Thread and chamfer milling cutter, for ISO-Metric thread = M4 with 0.70 mm pitch, dimensions according to DORMER standard with 3 flutes, 3.2mm cutting diameter and 6mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 10° helix angle for milling a maximum of 8.4mm long right or left hand internal thread in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron and non-ferrous metals
- Product Name ISO: J2003.2X.7
- Ordering Code ANSI: J2003.2X.7
- EDP Number: 46821169
- Coating: Alcrona Pro
- Material Code (BMC): HM
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), N - Non-ferrous metals (metals including alloys without an appreciable amount of iron), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
Quick Ship Items | No, but I will Ship Soon |
Product Measurement Standard | Metric |

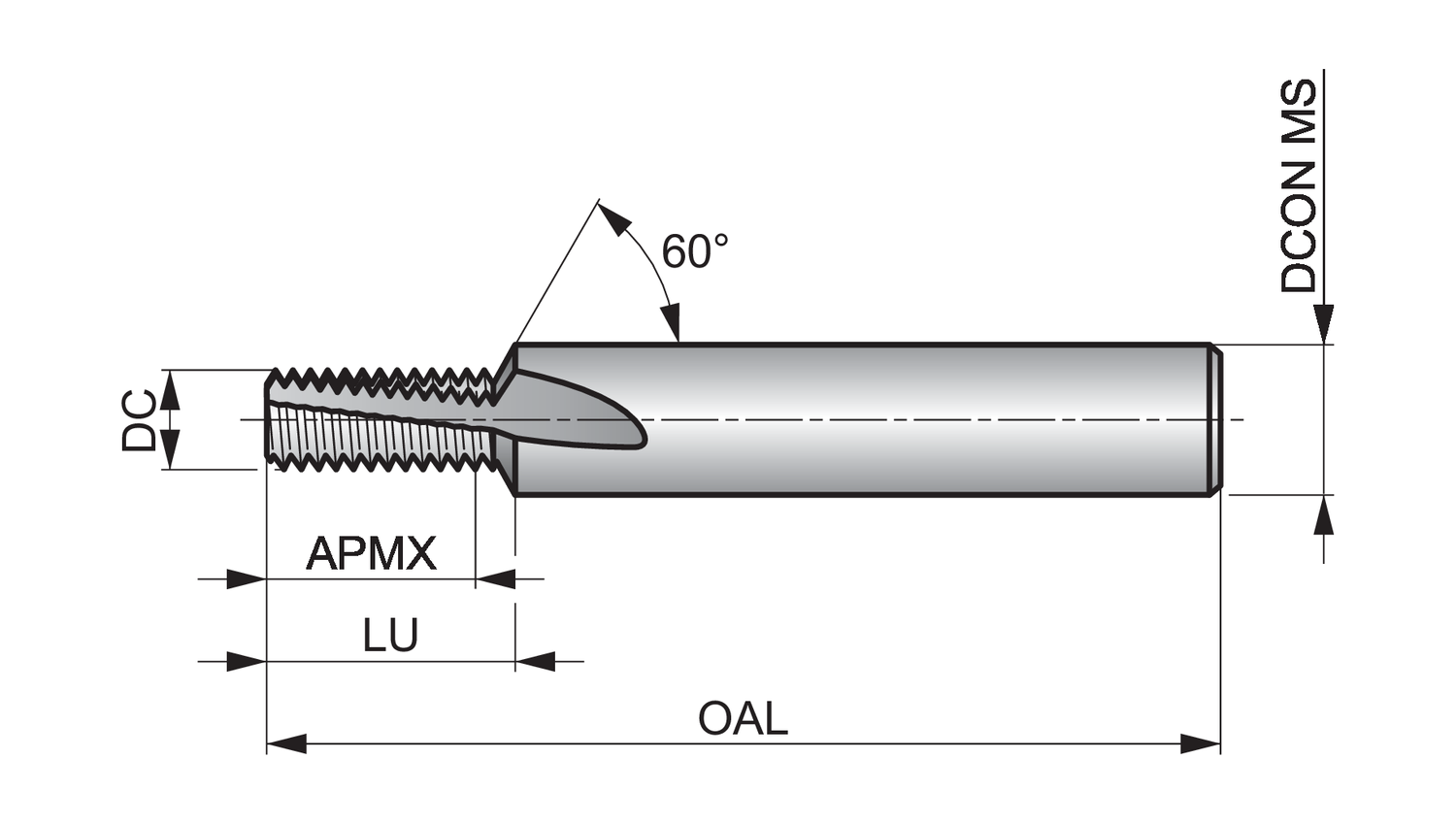

Cutting Diameter (Mm.) | 3.2 |
Cutting Diameter (In.) | 0.126 |
Depth of Cut Maximum (Mm.) | 8.4 |
Connection Diameter (Mm.) | 6 |
Overall Length (Mm.) | 57 |
Usable Length (Mm.) | 9.5 |
Connection Diameter (In.) | 0.2362 |
Overall Length (In.) | 2.2441 |
Material Code | HM |
Coating | Alcrona Pro |
Shank | Cylindrical Shank DIN 6535 HA |
Flute Count | 3 |
Thread Form | M - Metric Coarse |
Flute Geometry | Spiral Flute Geometry |
Cutting Direction | Right |
Thread Diameter Size | M4 |
