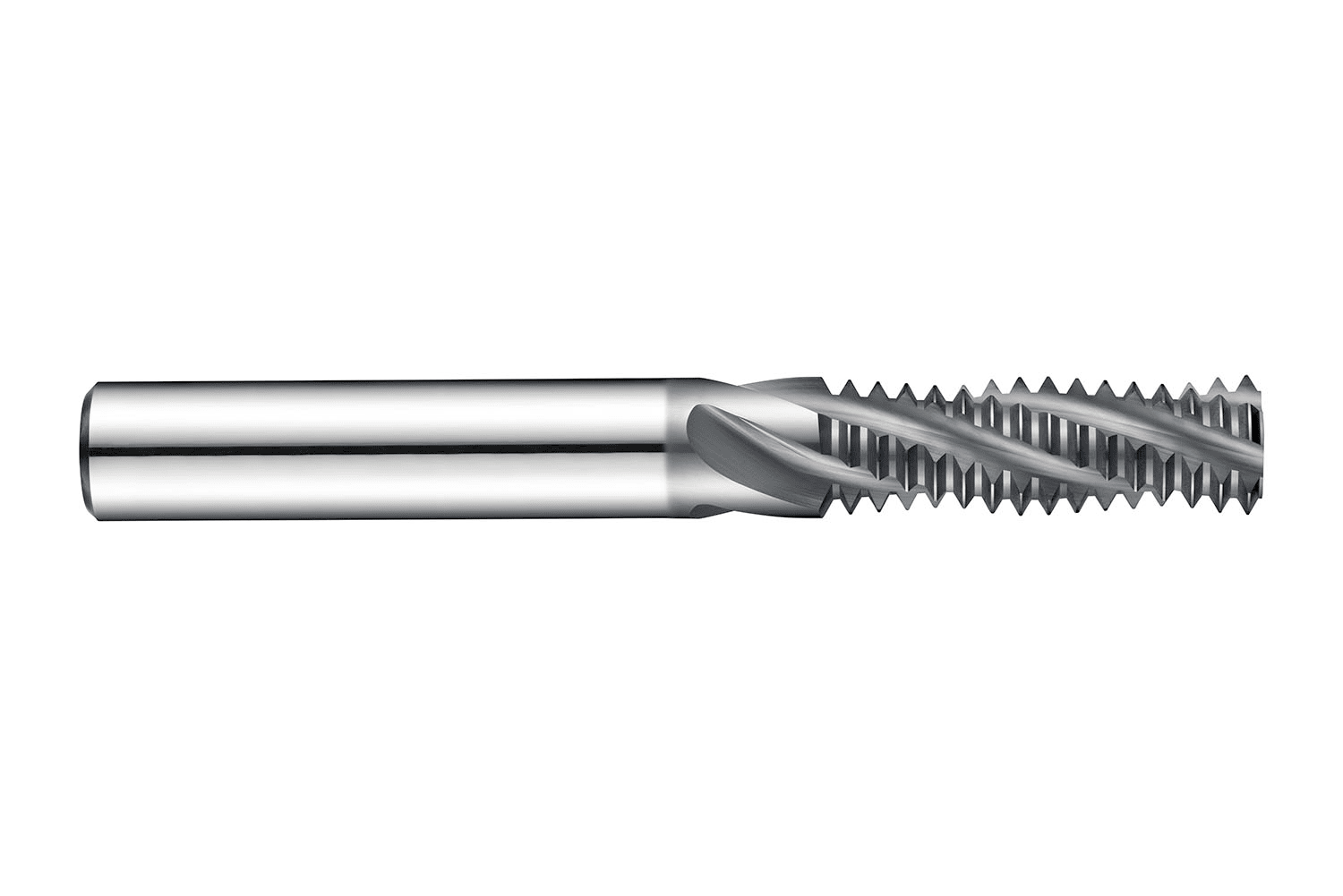

Thread milling cutter, for ISO-Metric thread = M6 with 1.00 mm pitch, dimensions according to DORMER standard with 3 flutes, 4.5mm cutting diameter and 6mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating, through coolant holes and 27° helix angle for milling a maximum of 13mm long right or left hand internal thread in steel and cast steel, stainless steel, cast-iron, non-ferrous metals, titanium or titanium alloys, chilled cast-iron
- Product Name ISO: J2154.5X1.0
- Ordering Code ANSI: J2154.5X1.0
- EDP Number: 46821308
- Coating: Alcrona Pro
- Material Code (BMC): HM
- Material Application Priority Usage: H - Hardened materials (any engineering metal with a hardness > 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), N - Non-ferrous metals (metals including alloys without an appreciable amount of iron), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
Quick Ship Items | No, but I will Ship Soon |
Product Measurement Standard | Metric |

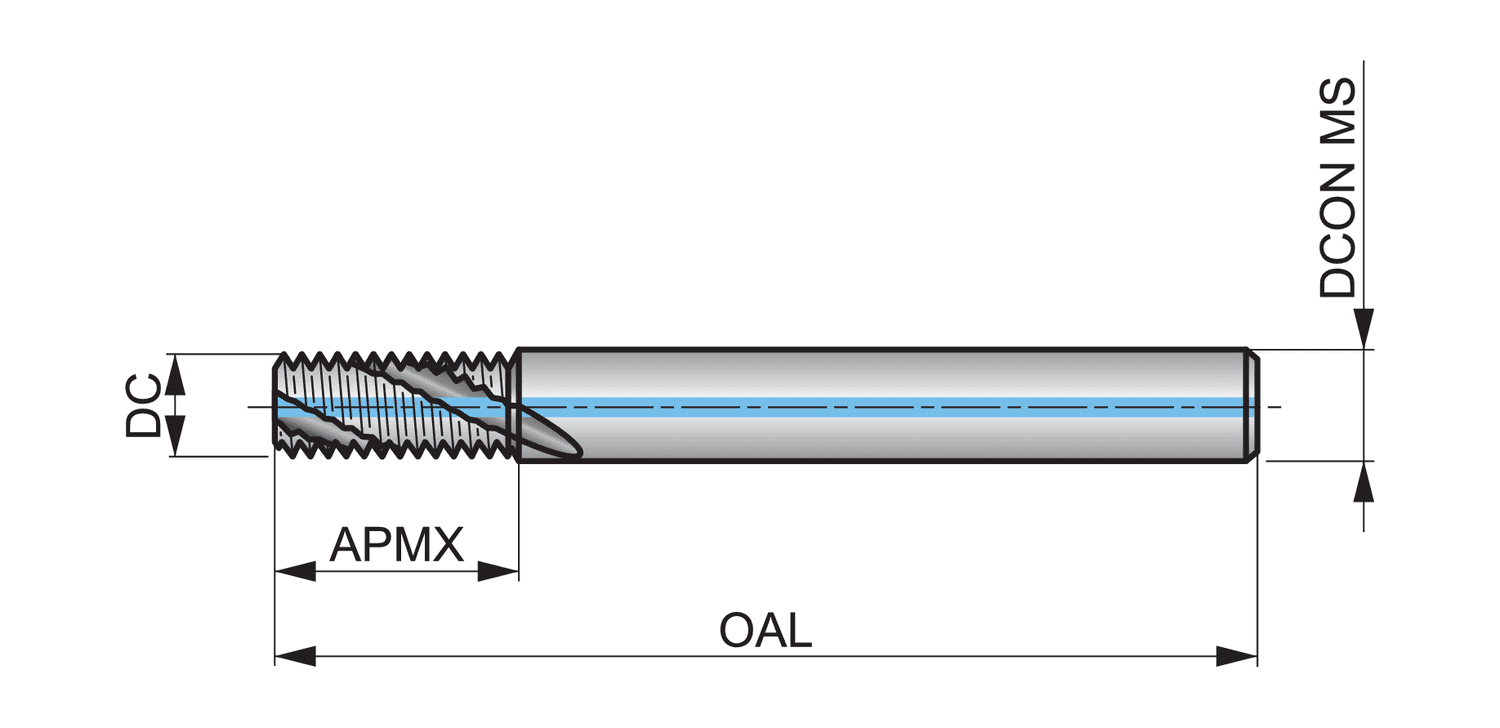

Cutting Diameter (Mm.) | 4.5 |
Cutting Diameter (In.) | 0.1772 |
Depth of Cut Maximum (Mm.) | 13 |
Connection Diameter (Mm.) | 6 |
Overall Length (Mm.) | 57 |
Connection Diameter (In.) | 0.2362 |
Overall Length (In.) | 2.2441 |
Material Code | HM |
Coating | Alcrona Pro |
Shank | Cylindrical Shank DIN 6535 HA |
Flute Count | 3 |
Thread Form | M - Metric Coarse |
Flute Geometry | Spiral Flute Geometry |
Cutting Direction | Right |
Cooling | 1 |
Thread Diameter Size | M6 |
