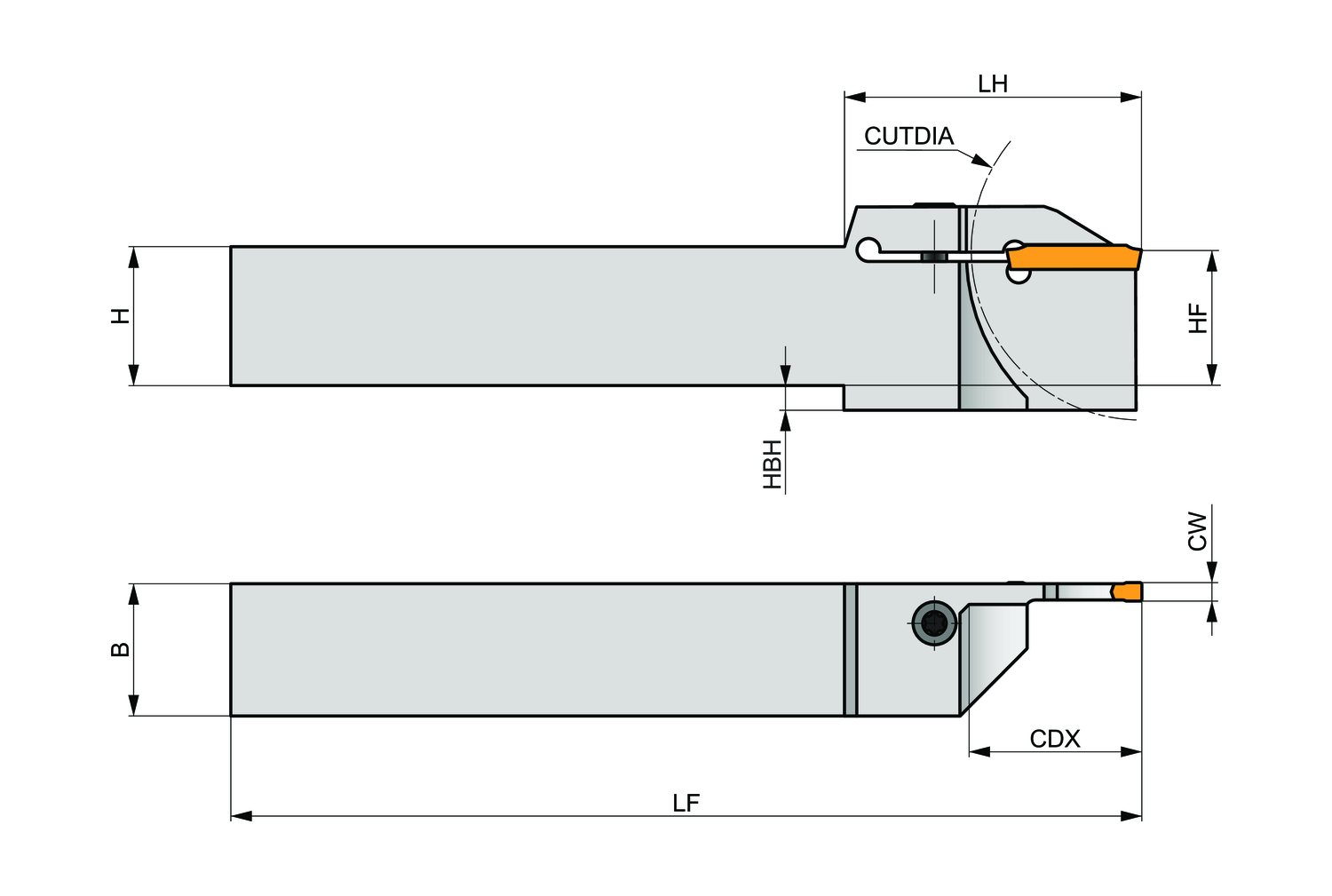

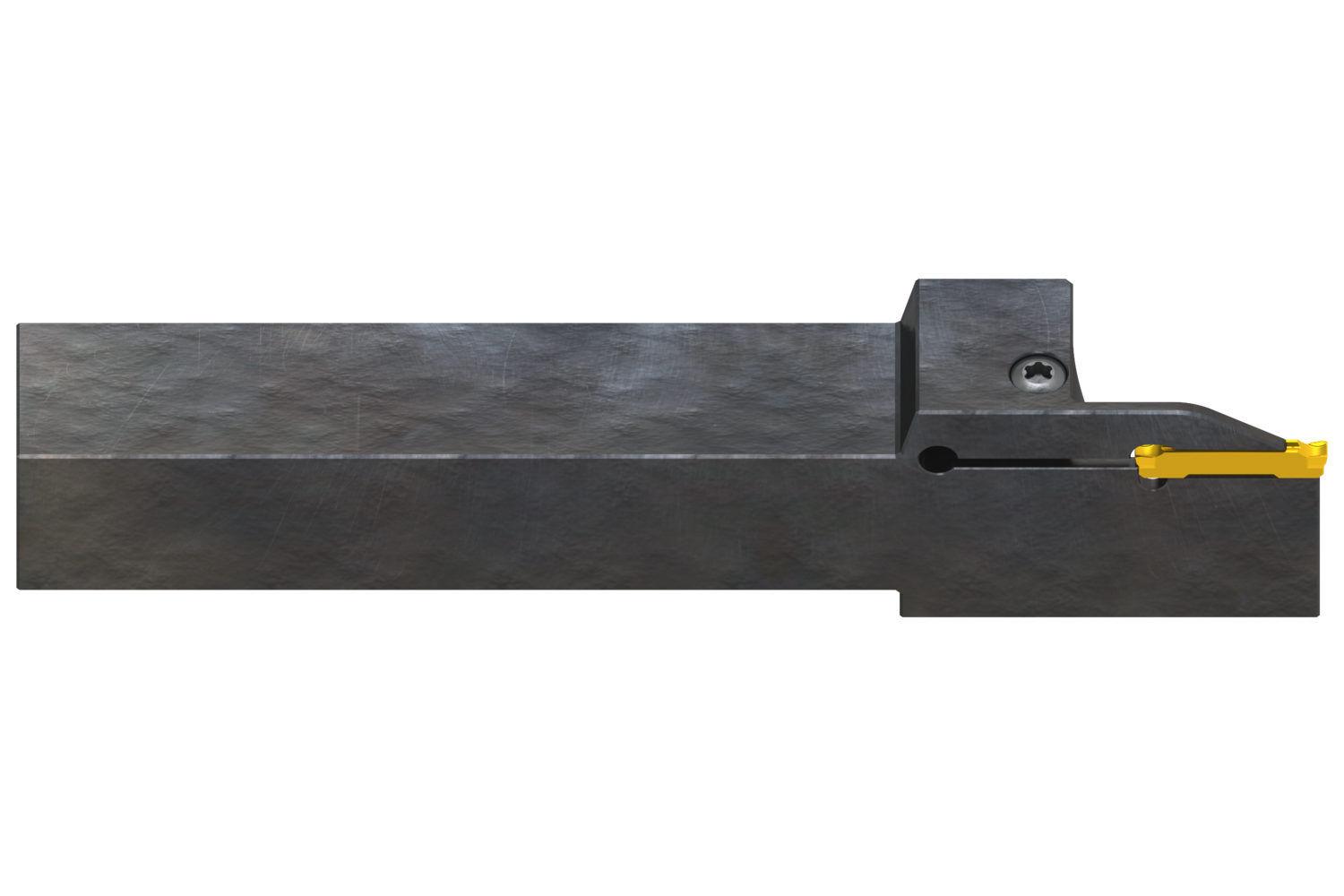

Top clamp grooving tool for holding a 0,984" long double ended insert with 0.118" cutting width (designation GL3-D… ), left handed with insert parallel to the shank for a maximum parting diameter of 3.150", shank height 1", width 1" and tool length 7" for multi-directional copy turning, shallow and deep radial grooving, radial groove turning, parting-off and tube parting-off

• Product Name ISO: GL3-S16EFL-1.26-3.15
• Ordering Code ANSI: GL3-S16EFL-1.26-3.15
• EDP Number: 7804147
• Material Application Priority Usage: H - Hardened materials (any engineering metal with a hardness > 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), N - Non-ferrous metals (metals including alloys without an appreciable amount of iron), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
