10,000 Psi Air Pump 122 Cu
- High strength reinforced aluminum alloy reservoir is lightweight and corrosion resistant
- Pressure relief valve for overload protection
- Suggested air pressure range: 90-175 psi / 6-12 bar
- Designed to be used with single acting cylinders
- Dust cover protection for the release control valve
- Dual stage release control valve
- 5AS200 offers a turbo function that features high flow at high pressure condition
- 5AD150M offers a 4-way control valve for operation of double acting cylinders
- Maximum working pressure: 10,000 psi / 700 bar
Used with Cylinder | Single Acting |
Usable Oil Capacity, (In.3) | 122.1 |
Pressure Rating, (PSI) | 10,000 |
Oil Output Flow Rate, (In.3/Min.), No Load | 65 |
Oil Output Flow Rate, (In.3/Min.), Load | 12 |
Input Air Pressure Range, (PSI) | 100-200 |

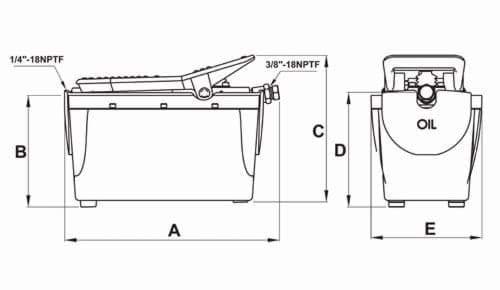

Dimensions (In.), A | 11.57 |
Dimensions (In.), B | 6.02 |
Dimensions (In.), C | 7.91 |
Dimensions (In.), D | 6.18 |
Dimensions (In.), E | 5.98 |
