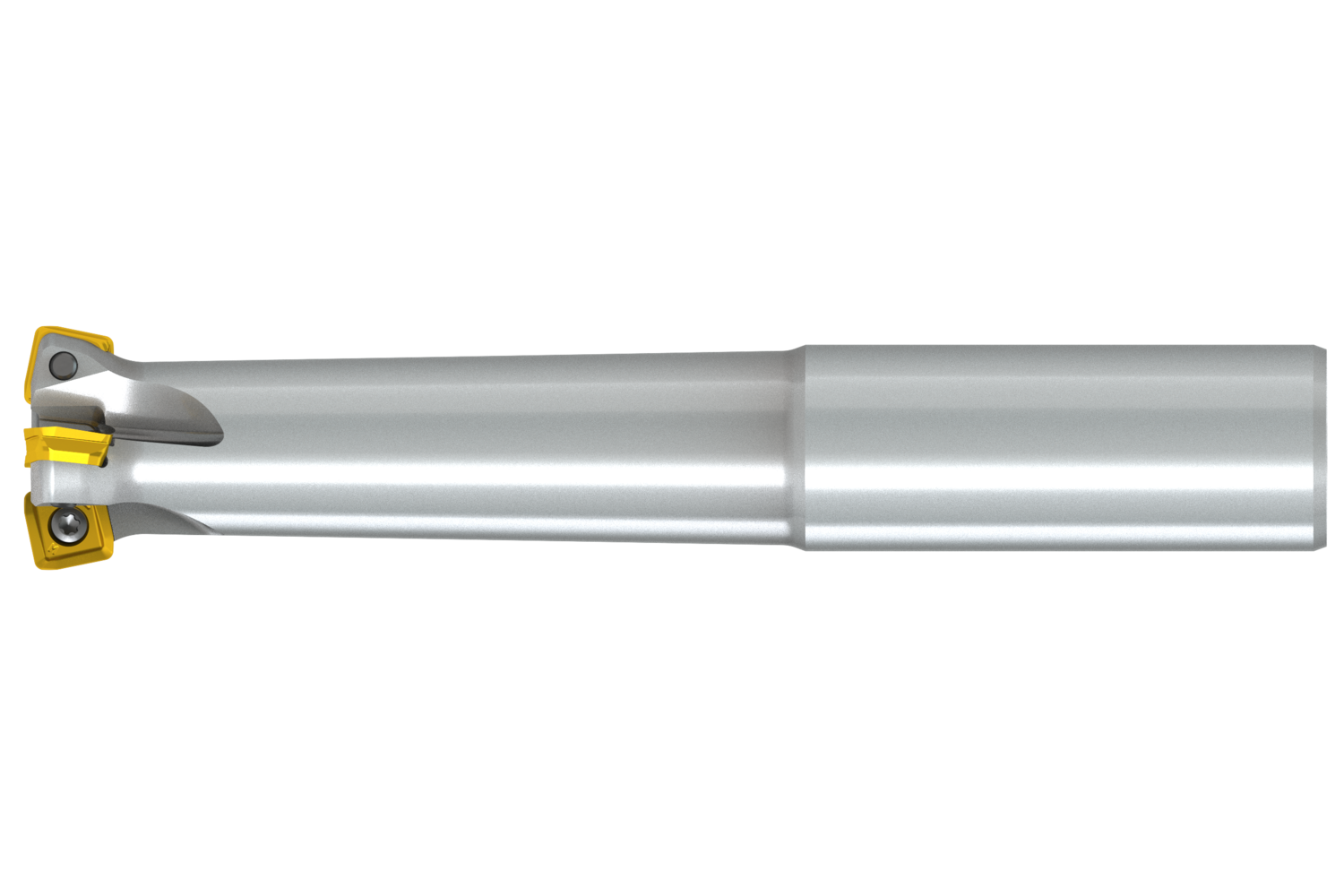

Highly versatile 12° high feed mill utilising single sided SO.. 12 style inserts with APMX of 1,9 mm Cutting diameter 0.803 inch with 12° approach angle and 1.25 inch parallel shank according to DIN 1835A, 4.724 inch functional and 7.874 inch inch overall length, through coolant and differential pitch for face milling, copy milling, ramping, helical milling, plunge milling and progressive plunge milling.
- Product Name ISO: 150E4R472C125-ISSO12-C
- Ordering Code ANSI: 150E4R472C125-ISSO12-C
- EDP Number: 8551877
- Material Application Priority Usage: H - Hardened materials (any engineering metal with a hardness > 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Inch |

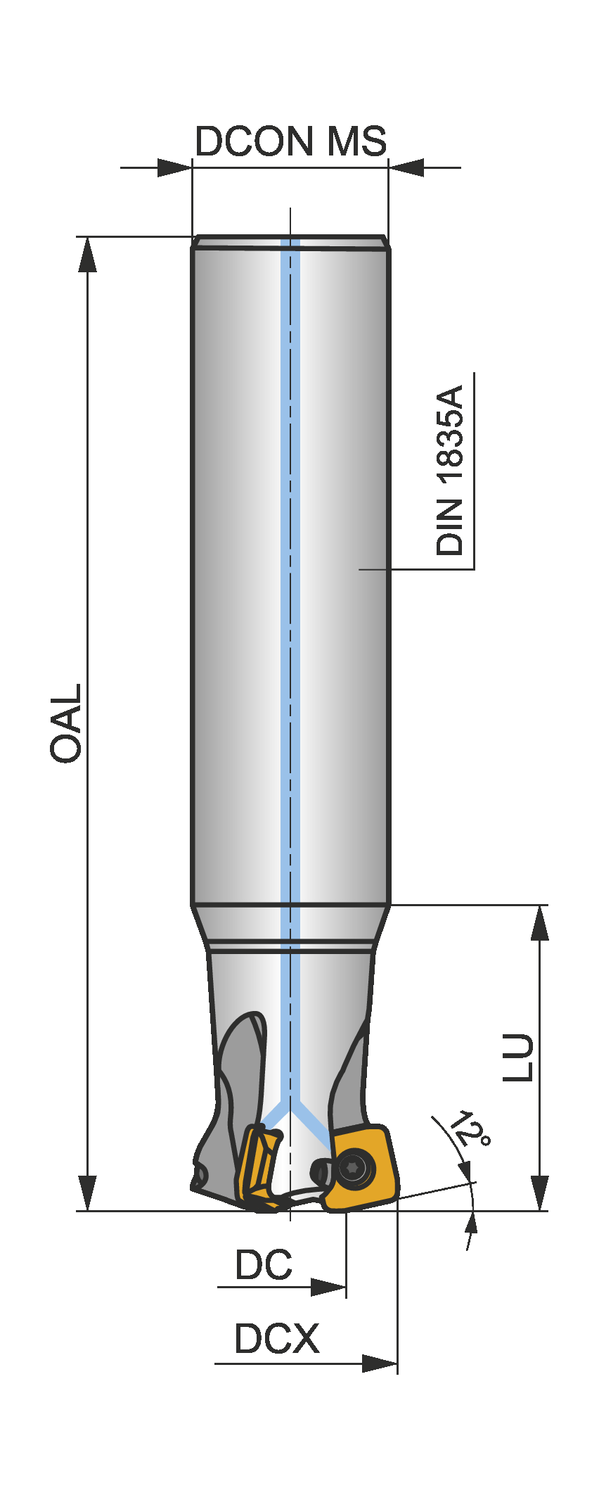

| Cutting Diameter (Mm.) | 20.4 |
| Cutting Diameter (In.) | 0.803 |
| Connection Diameter (Mm.) | 31.75 |
| Overall Length (Mm.) | 200 |
| Usable Length (Mm.) | 119.99 |
| Connection Diameter (In.) | 1.25 |
| Overall Length (In.) | 7.874 |
| Shank | Cylindrical Shank DIN 1835A |
| Clamping Type | Screw Clamping Through Hole |
| Cooling | 1 |
