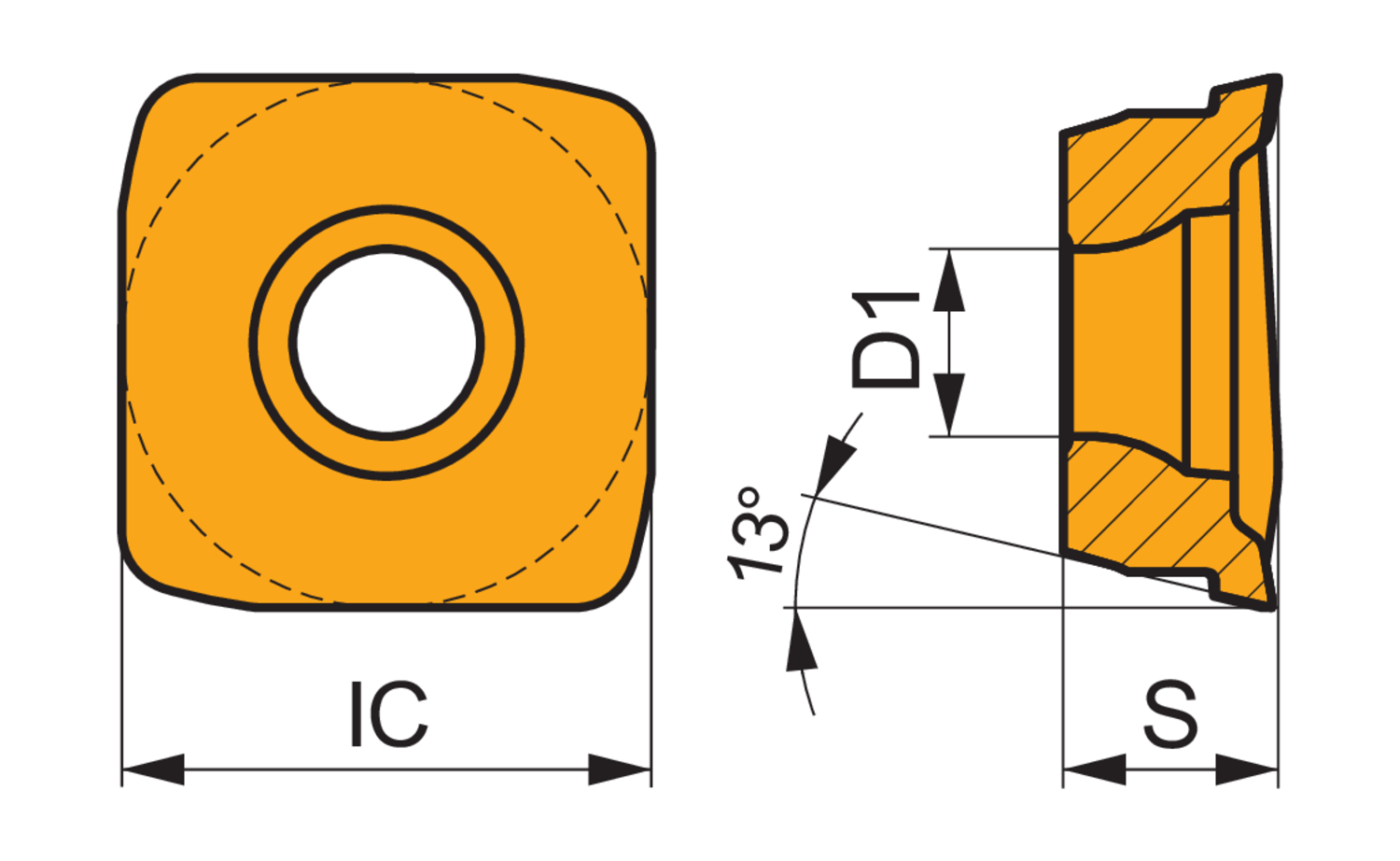

Single-sided HFC milling insert, square for a maximum depth of cut of 0.075inch, with 0.055 inch corner radius, an indexing accuracy according to ISO-tolerance class-H. M8340, PVD, WC-Co (< 1 µm) grade is suitable for Steel and cast steel. M geometry is versatile for a wide range of working conditions. Designed with positive rake, medium T-land and rounding of cutting edge for smooth HFC milling

• Product Name ISO: SOHT 120514SR-M:M8340
• Ordering Code ANSI: SOHT 120514SR-M:M8340
• EDP Number: 8551716
• Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
