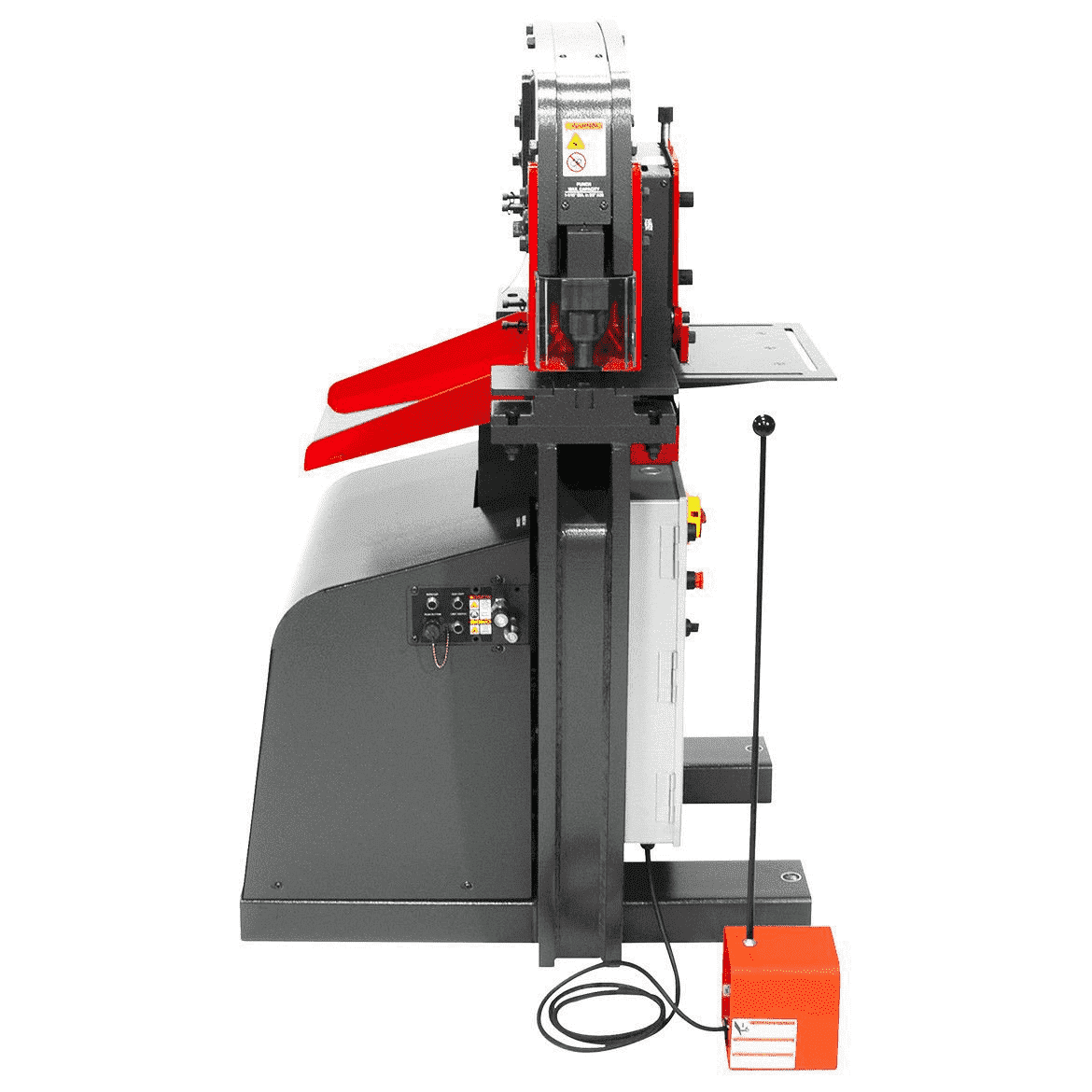

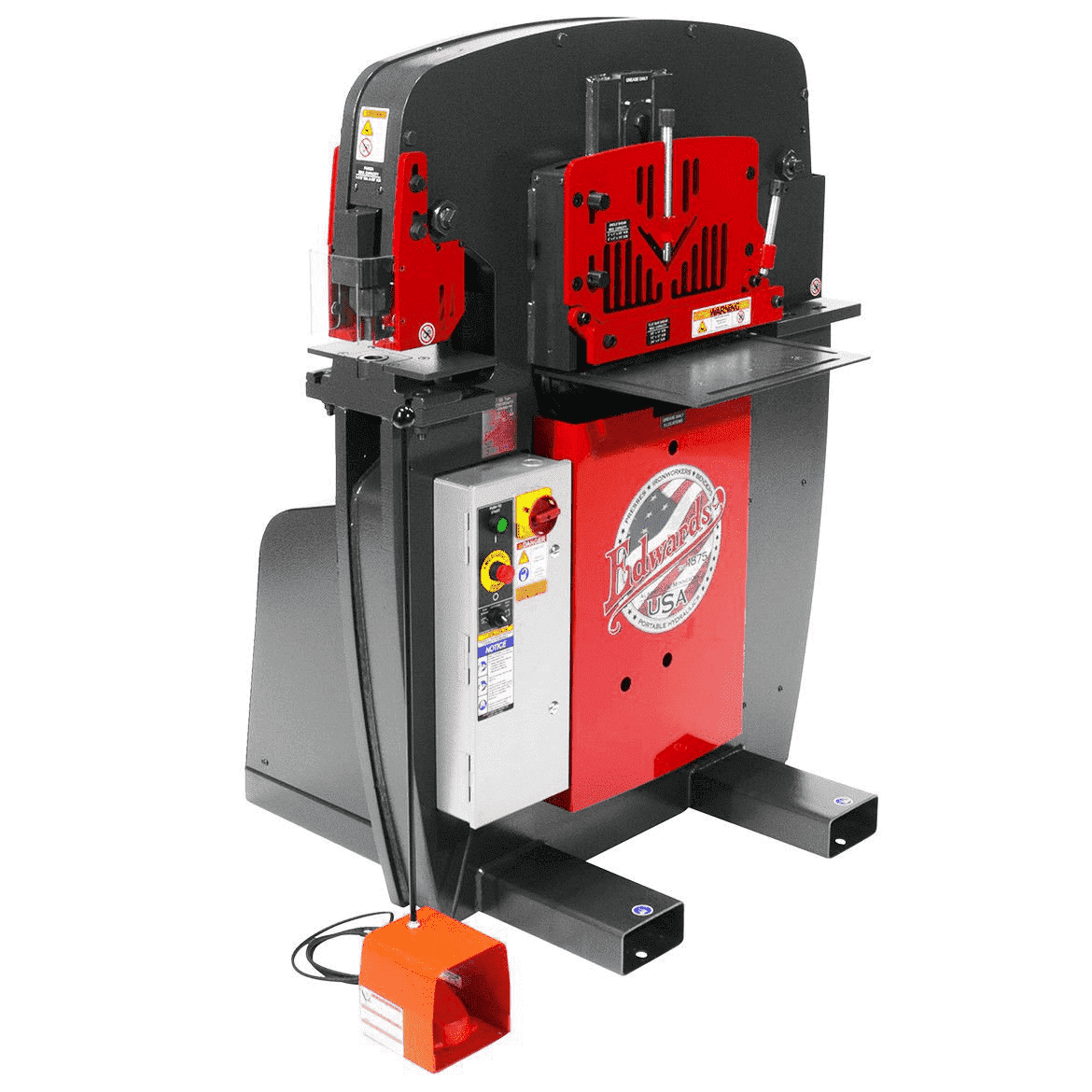

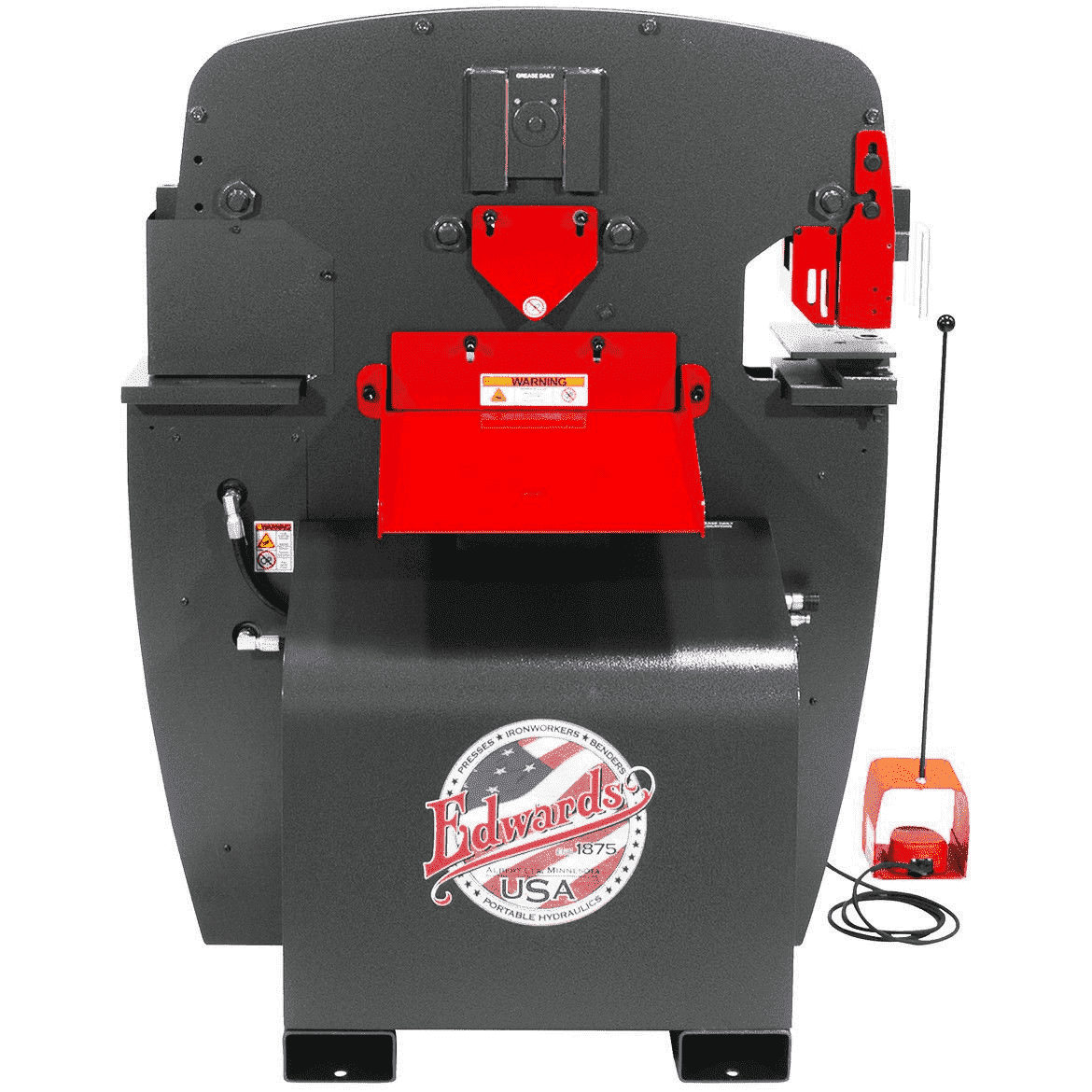

40 Ton Ironworker 1 Phase, 230 Volt, Coper Notcher
- Four Workstations: Standard (3) - Punch, Flat Bar Shear & Angle Shear; Open (1) - Customize your ironworker with 10 optional Attachments
- 11 interchangeable Attachments available to tailor the Ironworker to your needs
- 16 optional Accessories available to increase precision and efficiency
- Compact machine that allows for fast and easy transitions between fabrication operations: punch, shear, notch, bend or cope all in one machine.
- Optimized workstation heights for improved efficiency
- Electric foot pedal with integrated jog control
- Adjustable electric stoke control
- Bright LED lights increase visibility
- ANSI B11.5-1988(02) Compliant Guarding
- ETL Certified Controls
| Punch Max Capacity (In.) | 1 diam. in 1/2 mild steel |
| Punch Rating (Tons) | 40 |
| Punch Work Height (In.) | 41-1/2 |
| Punch Stroke (In.) | 1-3/8 |
| Punch Throat Depth (In.) | 7 |
| Flat Bar Shear Work Height (In.) | 52-1/2 |
| Flat Bar Shear Max Capacity (In.) | 3/8 x 10, 1/2 x 6 |
| Flat Bar Shear Max Round Capacity (In.) | 1/2 diam. |
| Flat Bar Shear Max Square Capacity (In.) | 1/2 |
| Angle Shear Work Height (In.) | 52-1/2 |
| Angle Shear Max Capacity (In.) | 3 x 3 x 1/4 |
| Open Workstation Throat Depth (In.) |
|
| Opt. Coper Notcher Max Capacity (In.) | 2 x 3 x 5/16 |
| Opt. Coper Work Height (In.) | 35-3/4 |
| Motor | 5 HP 230V 3Ph |
| AMPS | 14 |
| Hydraulics (GPM) | 3-1/2 |
| Hydraulic Reservoir (Gal.) | 7 |
| Hydraulics (PSI) | 2750 |
| Product Dimensions (In.) | 32 x 23 x 60-1/2 |
| Shipping Dimensions (In.) | 45 x 51 x 67 |
| Weight (Lbs.) | 1900 |
