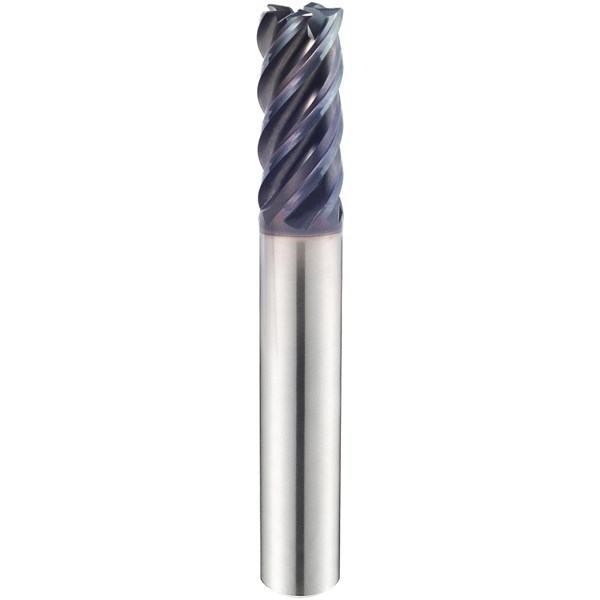

Series UGMG34 TitaNox-Power 5 FL CR End Mill - 5/16(R.015) x 5/16 x 1 x 3
- Type: 5 Flute Corner Radius
- Shank Style: Plain
- Application: M,S
| Quick Ship Items | No, but I will Ship Soon |
| Number of Flutes RH | 5 |
| Diameter Decimal (In.) | 0.3125 |
| Diameter Decimal (Mm.) | 7.9375 |
| Shank Diameter Decimal (In.) | 0.3125 |
| Shank Diameter Decimal (Mm.) | 7.9375 |
| Length of Cut (In.) | 1.0000 |
| Length of Cut (Mm.) | 25.4000 |
| Overall Length Decimal (In.) | 3.0000 |
| Overall Length Decimal (Mm.) | 76.2000 |
| Corner Radius Decimal (In.) | 0.0150 |
| Corner Radius Decimal (Mm.) | 0.3810 |
| Shank Style | Plain |
| Helix Angle | Variable |
| Coating | Y-Coating |
| Material | Carbide |
| Cut Type | Center Cut |
| Cutting Direction | Right |
| Product Measurement Standard | Inch |
