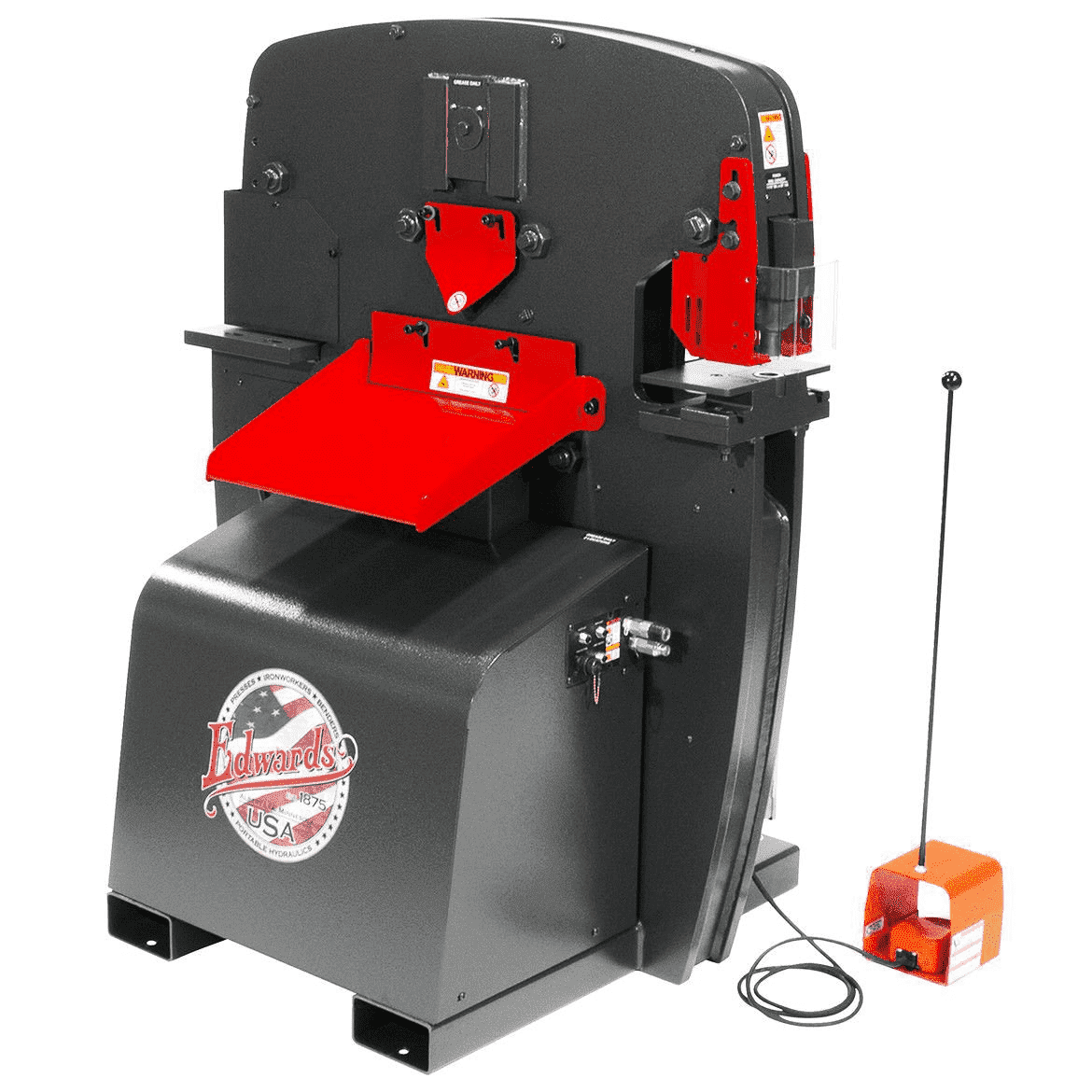

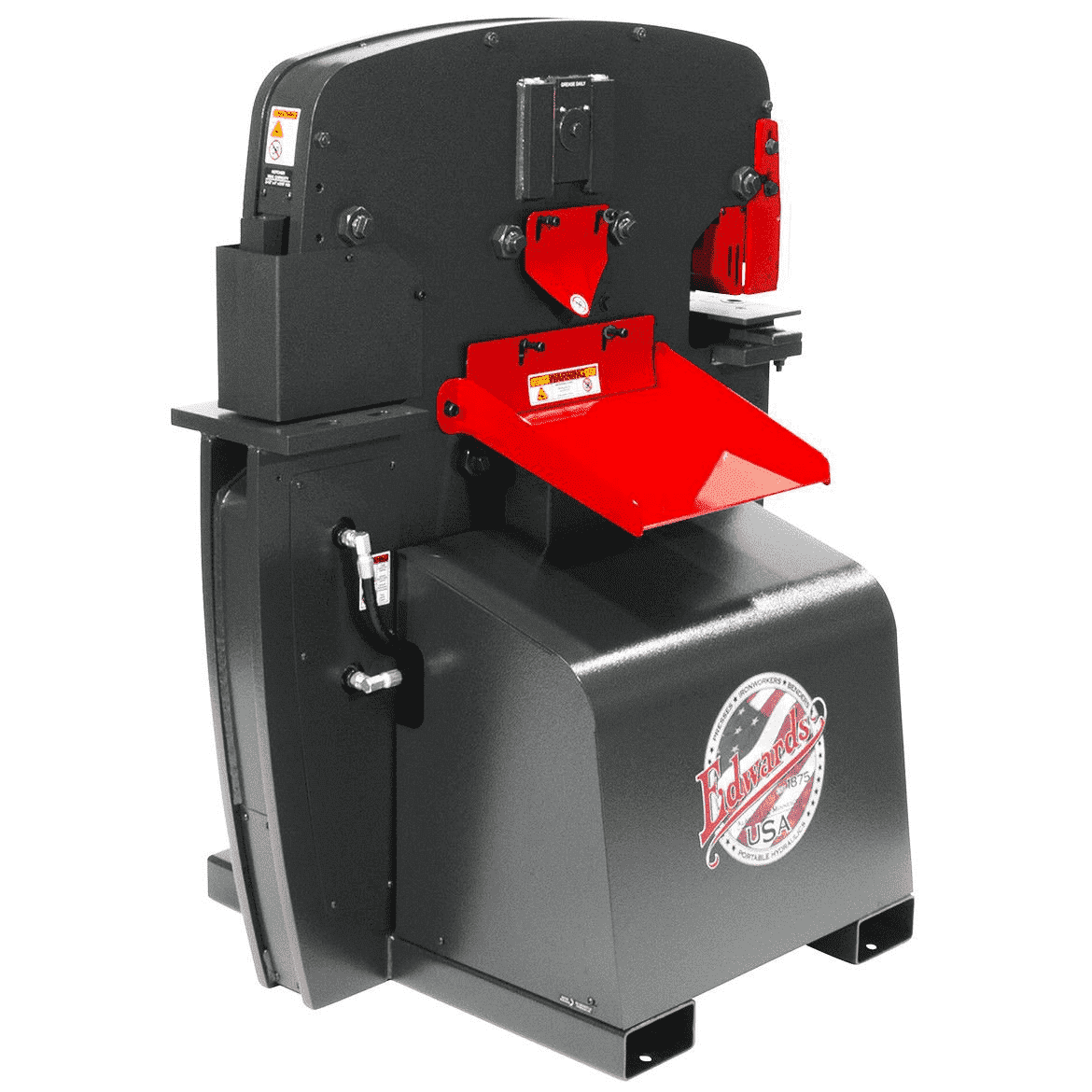

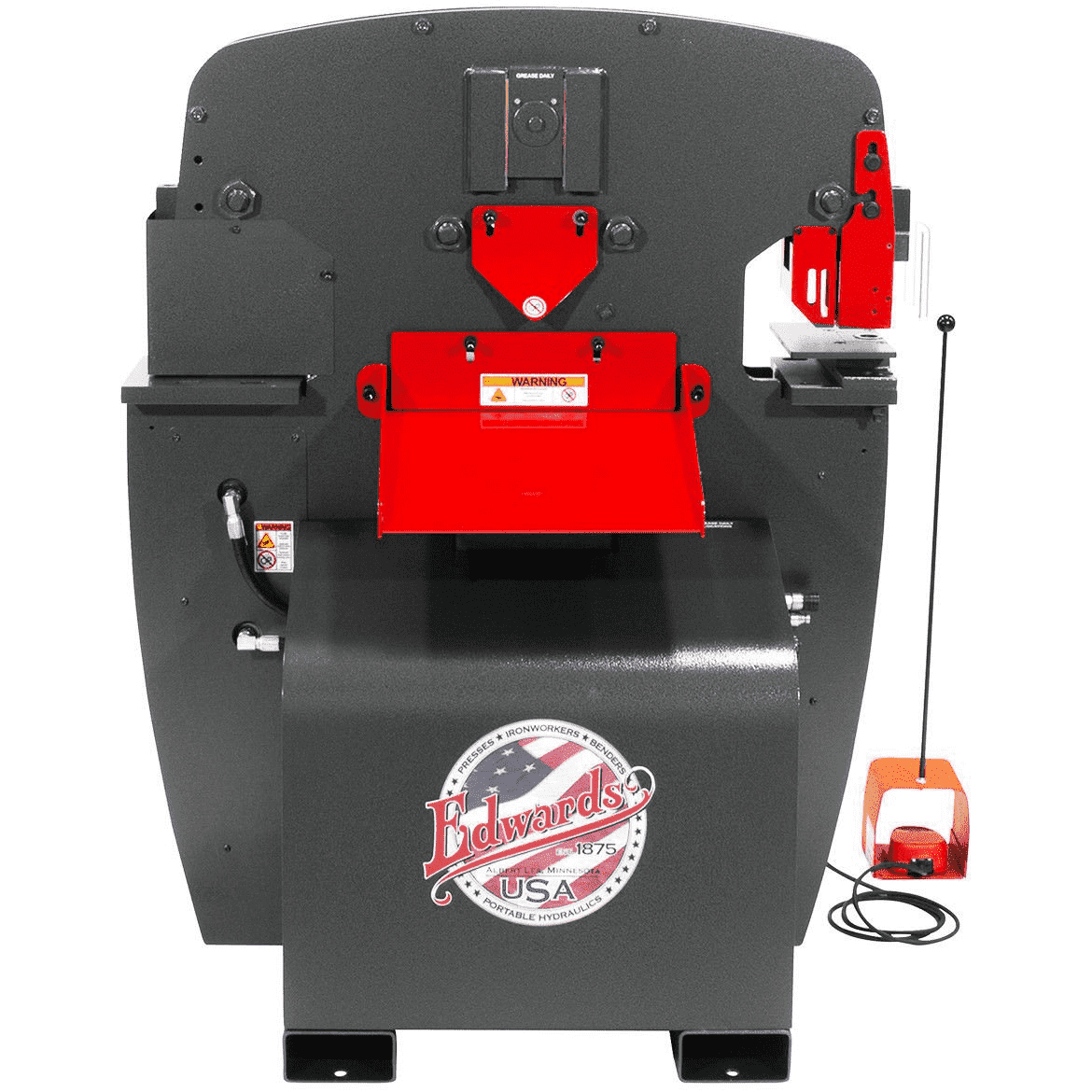

55 Ton Ironworker 3 Phase, 230 Volt, PowerLink, 10" Brake
- Four Workstations: Standard (3) - Punch, Flat Bar Shear & Angle Shear; Open (1) - Factory installed 10" Brake
- 11 interchangeable Attachments available to tailor the Ironworker to your needs
- 17 optional Accessories available to increase precision and efficiency
- PowerLink⢠System increases your capabilities by turning your Ironworker into a power source for our ever expanding line of Hydraulic Tools
- Compact machine that allows for fast and easy transitions between fabrication operations: punch, shear, notch, bend and cope all in one machine
- Optimized workstation heights for improved efficiency
- Electric foot pedal with integrated jog control
- Adjustable electric stoke control
- Bright LED lights increase visibility
- ANSI B11.5-1988(02) Compliant Guarding
| Punch Rating (Tons) | 55 |
| Punch Stroke (In.) | 1-1/4 |
| Punch Throat Depth (In.) | 7-1/2 |
| Punch Max Capacity (In.) | 1-1/16 diam. in 5/8 mild steel |
| Punch Work Height (In.) | 36-9/16 |
| Flat Bar Shear Max Capacity (In.) | 3/8 x 14 1/2 x 12 3/4 x 4 |
| Flat Bar Shear Work Height (In.) | 34-1/2 |
| Flat Bar Shear Max Round Capacity (In.) | 7/8 diam. |
| Flat Bar Shear Max Square Capacity (In.) | 7/8 |
| Angle Shear Work Height (In.) | 39-7/8 |
| Angle Shear Max Capacity (In.) | 3 x 3 x 3/8 4 x 4 x 1/4 |
| Open Workstation Throat Depth (In.) | 11-3/16 |
| Open Workstation Work Height (In.) | 34-1/2 |
| Opt Coper Notcher Work Height (In.) | 39-1/2 |
| Opt. Coper Max Capacity (In.) | 2-1/2 x 4 x 5/16 |
| Motor | 5 HP 230V 3Ph |
| AMPS | 14 |
| Hydraulics (PSI) | 2500 |
| Hydraulics (GPM) | 3-1/2 |
| Product Dimensions (In.) | 36-1/8 x 44-3/8 x 55-1/4 |
| Shipping Dimensions (In.) | 45 x 51 x 62 |
| Weight (Lbs.) | 2,480 |
