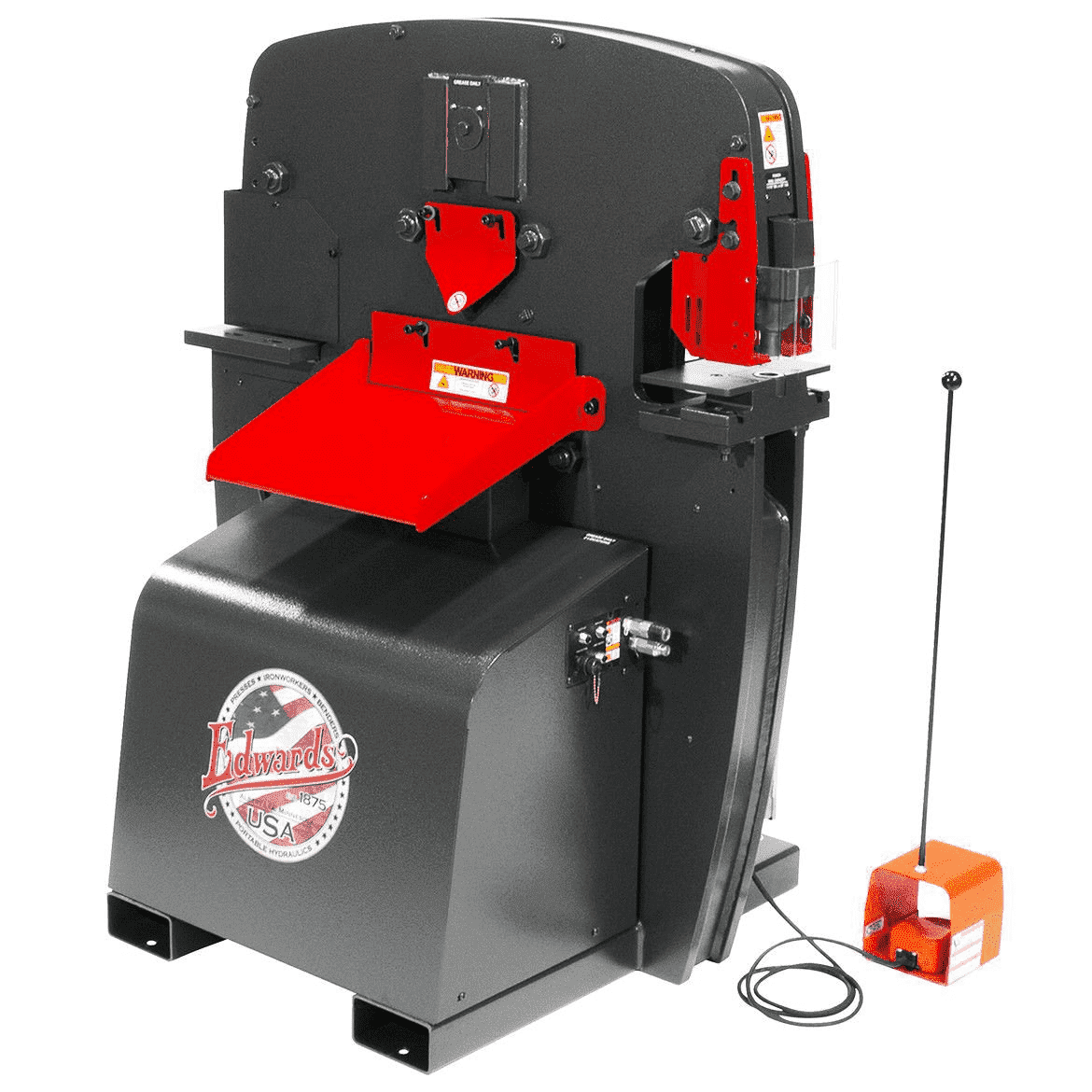

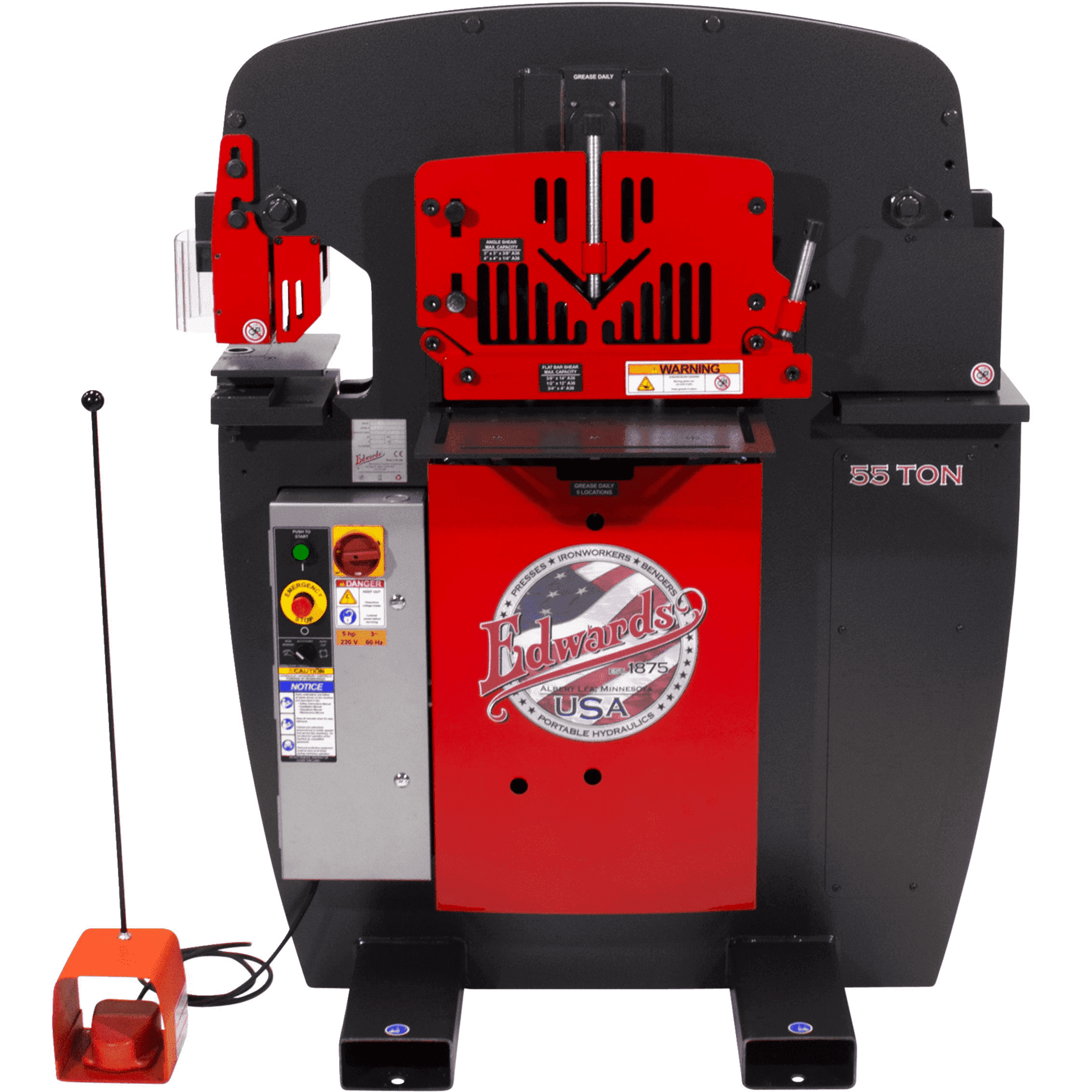

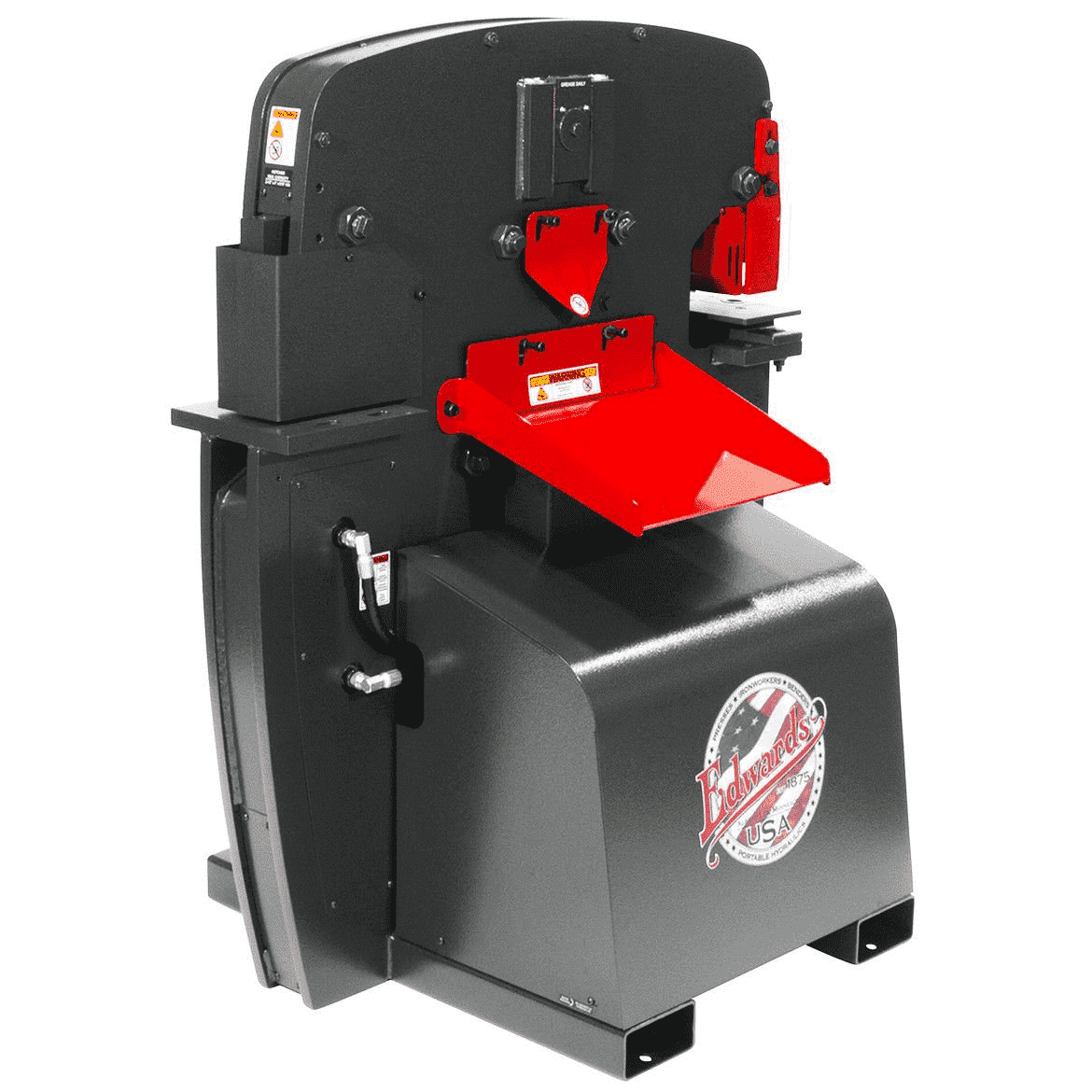

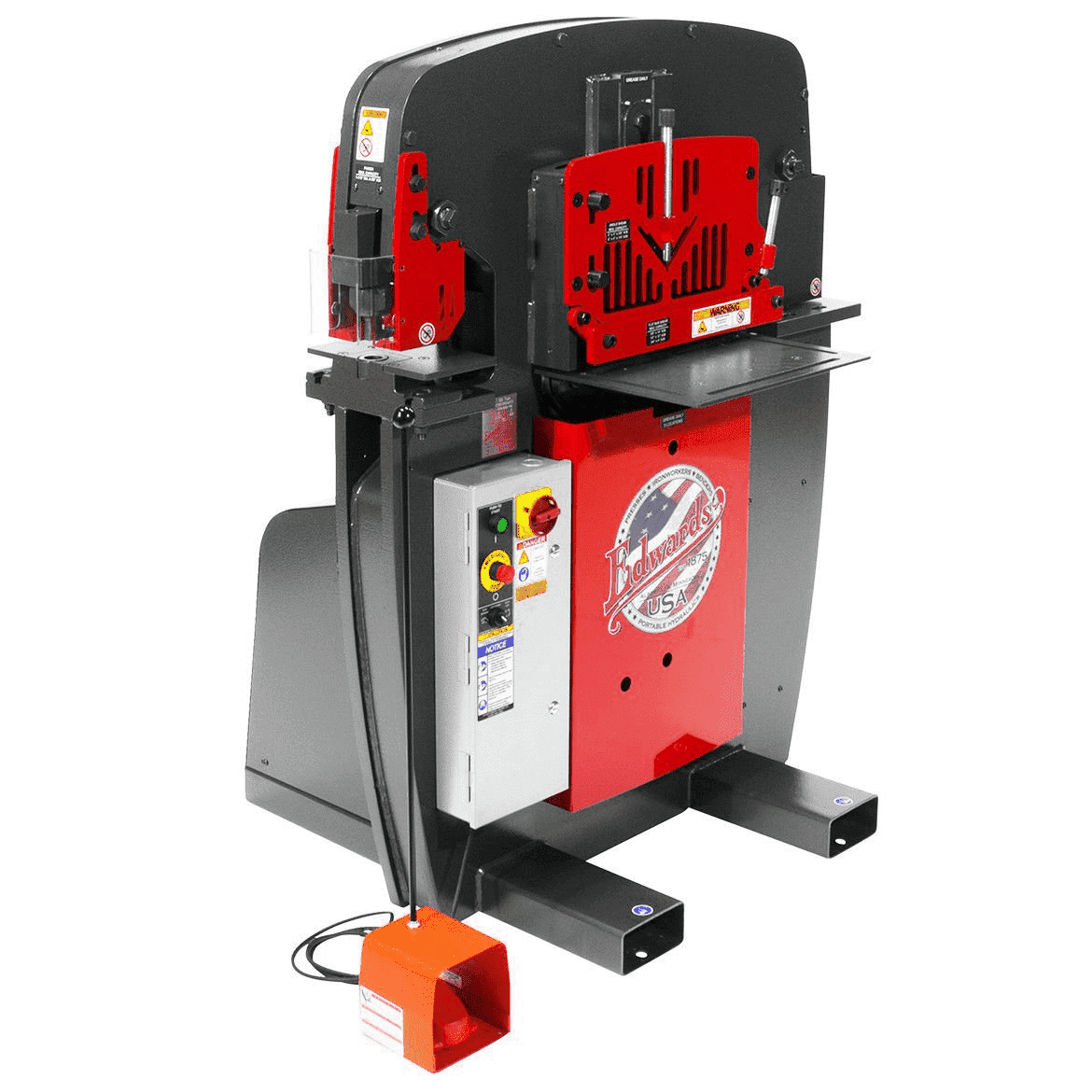

55 Ton Ironworker 208V, 3Ph with PowerLink
- Four Workstations: Standard (3) - Punch, Flat Bar Shear & Angle Shear; Open (1) - Customize your ironworker with 12 optional Attachments
- 12 interchangeable Attachments available to tailor the Ironworker to your needs
- 17 optional Accessories available to increase precision and efficiency
- PowerLink⢠System increases your capabilities turning your Ironworker into a power source for our ever expanding line of Hydraulic Tools
- ANSI B11.5- 1988(02) Compliant Guarding
- ETL/UL Approved Controls
- Integrated E-Stop, Lock-out/Tag-out
- Optimized workstation heights for improved efficiency
- Electric foot pedals with integrated jog control
- Adjustable electric stoke control
| Punch Rating (Tons) | 55 |
| Punch Stroke (In.) | 1-1/4 |
| Punch Throat Depth (In.) | 7-1/2 |
| Punch Max Capacity (In.) | 1-1/16 diam. in 5/8 mild steel |
| Punch Work Height (In.) | 36-9/16 |
| Flat Bar Shear Max Capacity (In.) | 3/8 x 14, 1/2 x 12, 3/4 x 4 |
| Flat Bar Shear Work Height (In.) | 34-1/2 |
| Flat Bar Shear Max Round Capacity (In.) | 7/8 diam. |
| Flat Bar Shear Max Square Capacity (In.) | 7/8 |
| Angle Shear Work Height (In.) | 39-7/8 |
| Angle Shear Max Capacity (In.) | 3 x 3 x 3/8, 4 x 4 x 1/4 |
| Open Workstation Throat Depth (In.) | 11-3/16 |
| Open Workstation Work Height (In.) | 34-1/2 |
| Opt Coper Notcher Work Height (In.) | 39-1/2 |
| Opt. Coper Max Capacity (In.) | 2-1/2 x 4 x 5/16 |
| Motor | 5 HP 208V 3Ph |
| AMPS | 14 |
| Hydraulics (PSI) | 2500 |
| Hydraulic Reservoir (Gal.) | 7 |
| Hydraulics (GPM) | 3-1/2 |
| Product Dimensions (In.) | 44-3/8 x 36-1/8 x 55-1/4 |
| Shipping Dimensions (In.) | 45 x 51 x 62 |
| Weight (Lbs.) | 2,480 |
