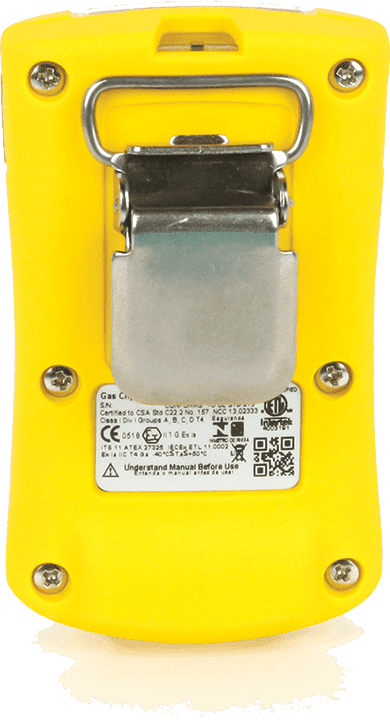

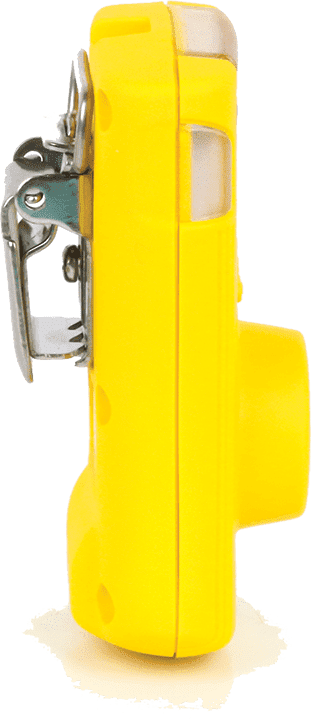

Gas Detector Gas 1 - CO
- Unmatched sensor reliability for H2S and CO
- “Hibernate” mode
- Adjustable alarm set points
- Real-time gas reading capability
- 50% larger battery capacity
- 0.1 ppm resolution for sensor and display
- Two-way IR communication for event downloads, bump tests, unit configuration and firmware updates
- Programmable unique 6 digit detector identification
- “Bump Check” confirmation/identification
- Optional calibration
- Calibration confirmation/identification
- Docking capability with Gas Clip Technologies SGC Dock
- Model numbers: SGC-P-H (H2S); SGC-P-C (CO)
- Be sure to compare these features to our Multi Gas Clip and Single Gas Clip to find the right product for your current application
- Size: 3.2” H × 2.0” W × 1.1” D (81 mm H × 50 mm W × 28 mm D)
- Weight: 2.7 oz. (76 g)
- Temperature H2S: -40°C to +50°C/ -40°F to +122°F CO: -40°C to +50°C/ -40°F to +122°F
- Humidity 5% to 95% non-condensing relative humidity
- Alarms Visual, Vibrating and Audible (minimum 95 db)
- Tests Full function self-test on activation and every 20 hours; continuous automatic battery and sensor tests
- Ratings IP 67/ Complies with EMC directives 89/336/EEC
- Certifications UL 913 and CSA-22.2 No 157 Class 1 Division 1&2 Groups A, B, C and D; ATEX: II 1 G Ex ia IIC T4; IECEX: Ex ia IIC T4
- Warranty 3 years from activation or 24 months of operational life (whichever occurs first); 1 year shelf life
- Measuring Range H2S: 0-100 (Low alarm limit: 10 ppm; High alarm limit: 15 ppm) CO: 0-300 ppm (Low alarm limit: 35 ppm; High alarm limit: 200 ppm)
- Notes: Real-time gas display or time remaining; adjustable alarm set points and bump check reminder
- System Requirements: Available for Windows based PCs (64 bit versons of Vista, 7, 8.x, 10)
- Users must also install Microsoft Net 4.0 software (Please use Chrome, Firefox, Opera or Edge to download)
There are no reviews yet
Manufacturer warranty | ||
2 Year | ||
Warranty details | ||
All Gas Clip Technologies(GCT) products have been tested to the highest quality standards by GCT. This Limited Warranty offered by GCT covers defects in material or workmanship in GCT products
For official Warranty information, please visit Gas Clip Technologies website or click here. |
- Manual.pdf (Manual)
- TDS.pdf (TDS)
