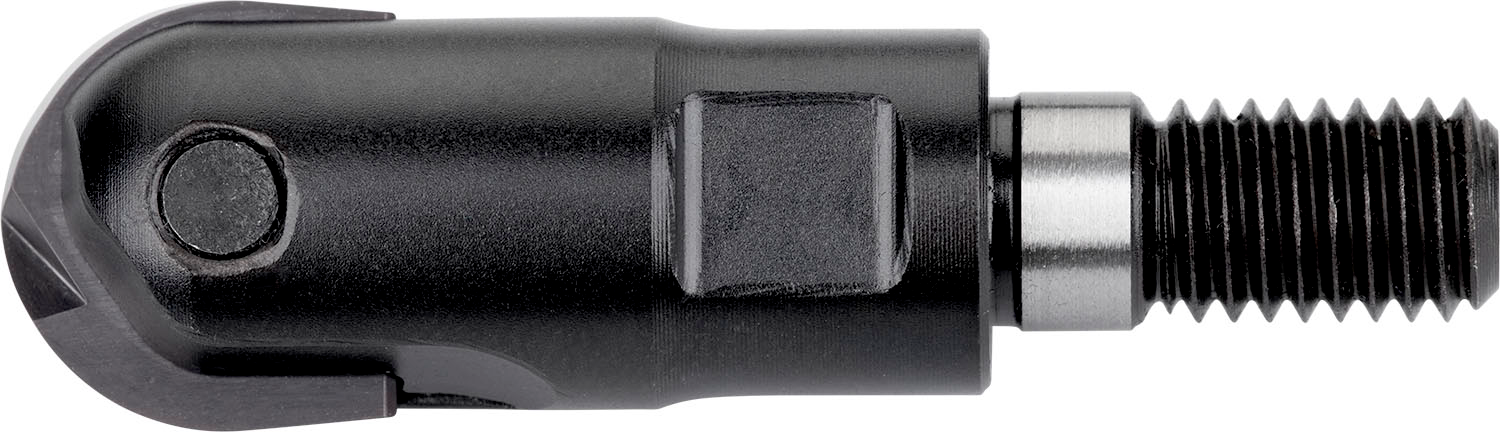

Copy end mill which utilises 1 off RC 12 or RC 12-F single-sided insert, cutting diameter 12mm with M6 threaded shank for standard modular tool-holders, 30mm protrusion length for copy milling with a maximum depth of cut of 0.6-3.2mm
- Product Name ISO: 12K2R30M06-SRC12-A
- Ordering Code ANSI: 12K2R30M06-SRC12-A
- EDP Number: 7051473
- Material Application Priority Usage: H - Hardened materials (any engineering metal with a hardness > 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)

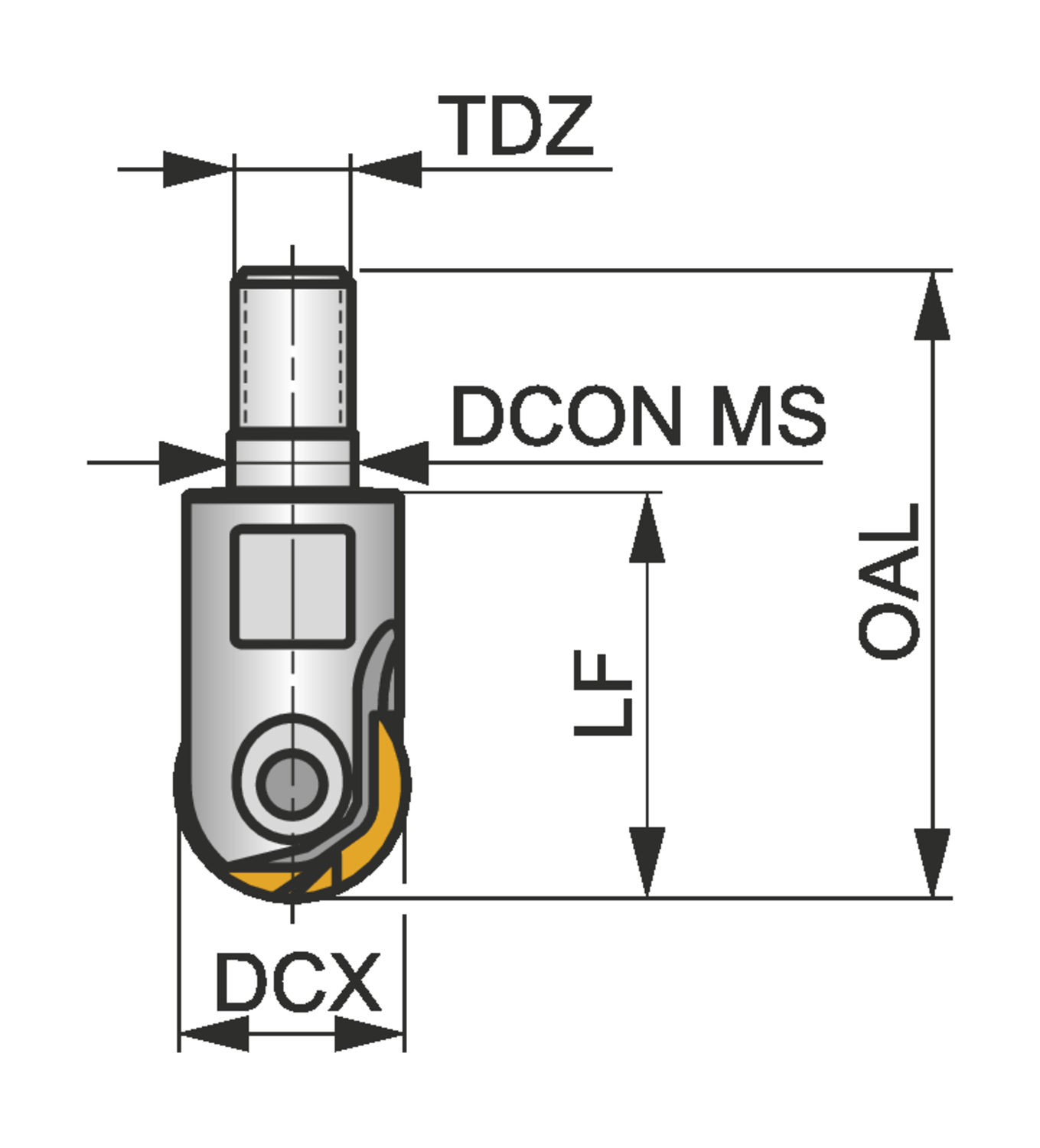

Product Measurement Standard | Metric |
Connection Diameter (Mm.) | 6.5 |
Overall Length (Mm.) | 45 |
Connection Diameter (In.) | 0.256 |
Overall Length (In.) | 1.772 |
Shank | Threaded Coupling |
Clamping Type | Screw Clamping Through Hole |
Thread Diameter Size | M6 |
