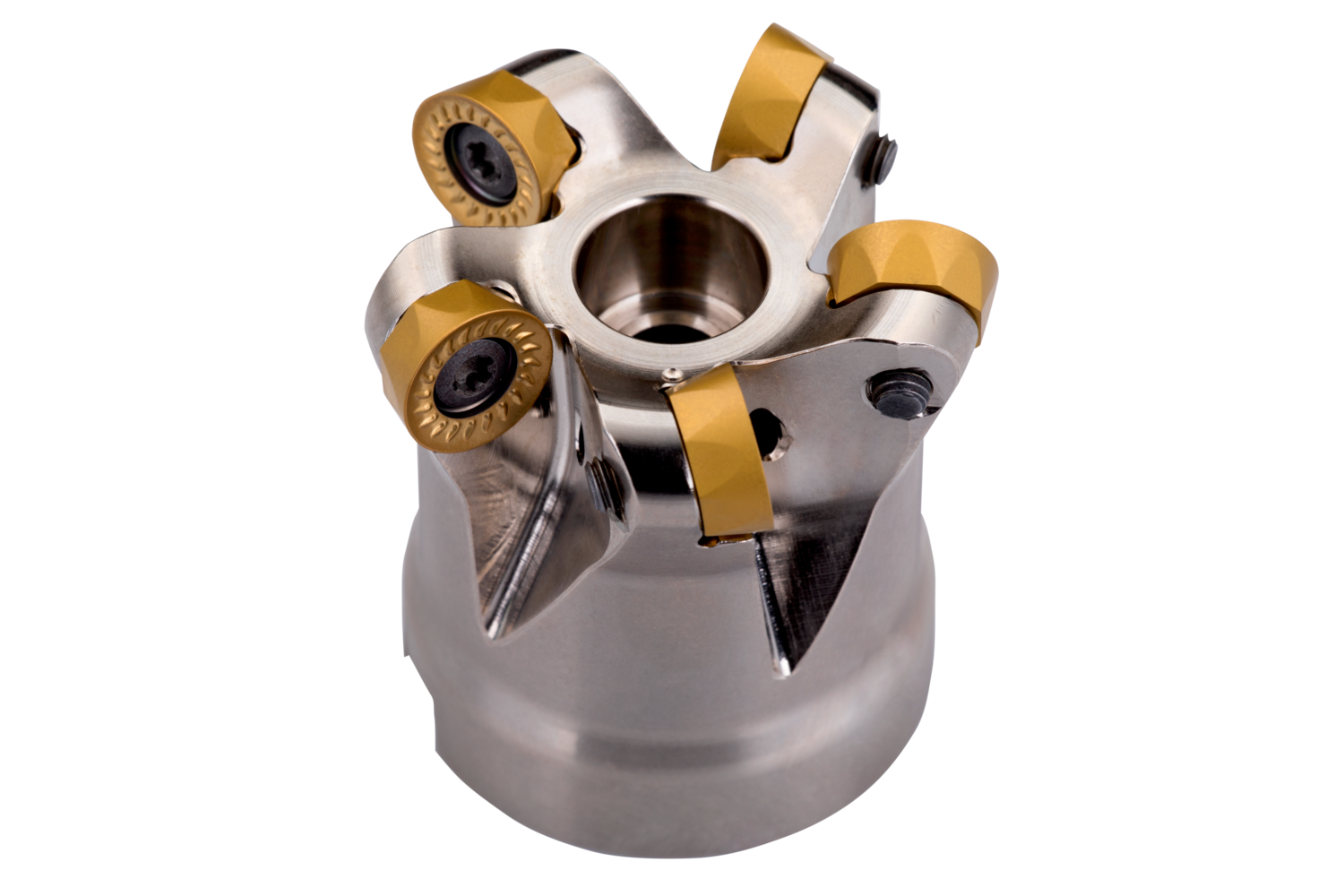

Copy face mill with double negative geometry which utilises 6 off RCMT 10T3MO.. single-sided inserts, cutting diameter 2.500'' with .750'' connection bore according to DIN 8030-A, 1.575'' protrusion length, through coolant for face milling, copy milling, ramping, helical milling and plunge milling with a maximum depth of cut of .197''
- Product Name ISO: 250A06R-ISMORC10-C
- Ordering Code ANSI: 250A06R-ISMORC10-C
- EDP Number: 7455531
- Material Application Priority Usage: H - Hardened materials (any engineering metal with a hardness > 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
| Product Measurement Standard | Inch |
| Cutting Diameter (Mm.) | 53.5 |
| Cutting Diameter (In.) | 2.106 |
| Connection Diameter (Mm.) | 19.1 |
| Connection Diameter (In.) | 0.75 |
| Shank | Shell Mill DIN 8030 A |
| Cutting Direction | Right |
| Clamping Type | Screw Clamping Through Hole |
| Cooling | 1 |
