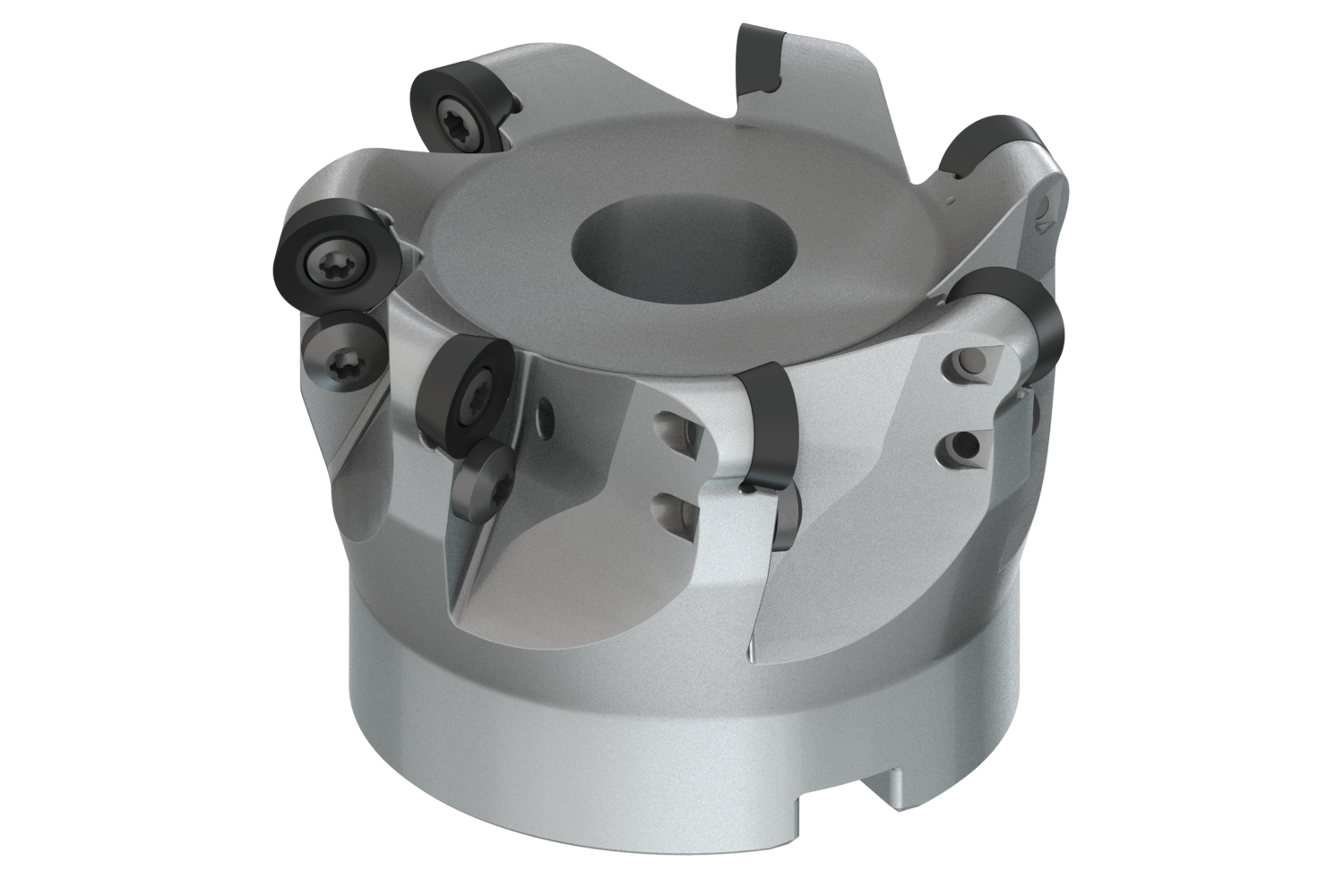

Copy face mill with double positive geometry which utilises 7 of RD.. 12T3MOT or RDHT 12T3MO-FA single-sided inserts, cutting diameter to maximum 3.000" with 1.000" connection bore according to DIN 8030-A, 2.047" functional and, through coolant for face milling, copy milling, ramping, progressive plunge milling and helical milling with a maximum depth of cut of 0.118"
- Product Name ISO: 300A07R-ISCMORD12-CF
- Ordering Code ANSI: 300A07R-ISCMORD12-CF
- EDP Number: 7979760

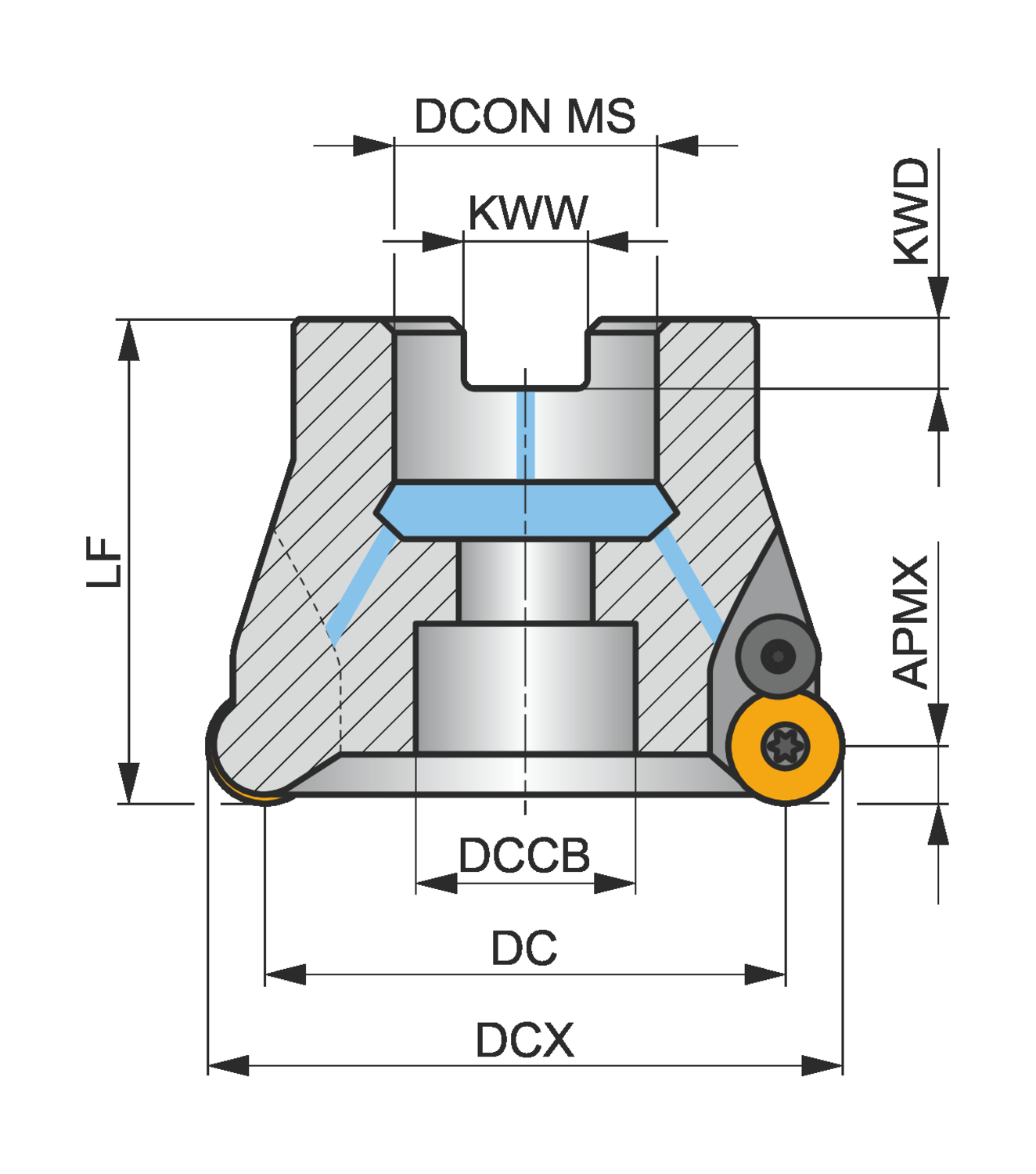

| Product Measurement Standard | Inch |
| Cutting Diameter (In.) | 2.528 |
| Connection Diameter (Mm.) | 25.4 |
| Max Depth of Cut (In.) | 0.118 |
| Connection Diameter (In.) | 1 |
| Shank | Shell Mill DIN 8030 A |
| Cutting Direction | Right |
| Clamping Type | System SC |
| Cooling | 1 |
