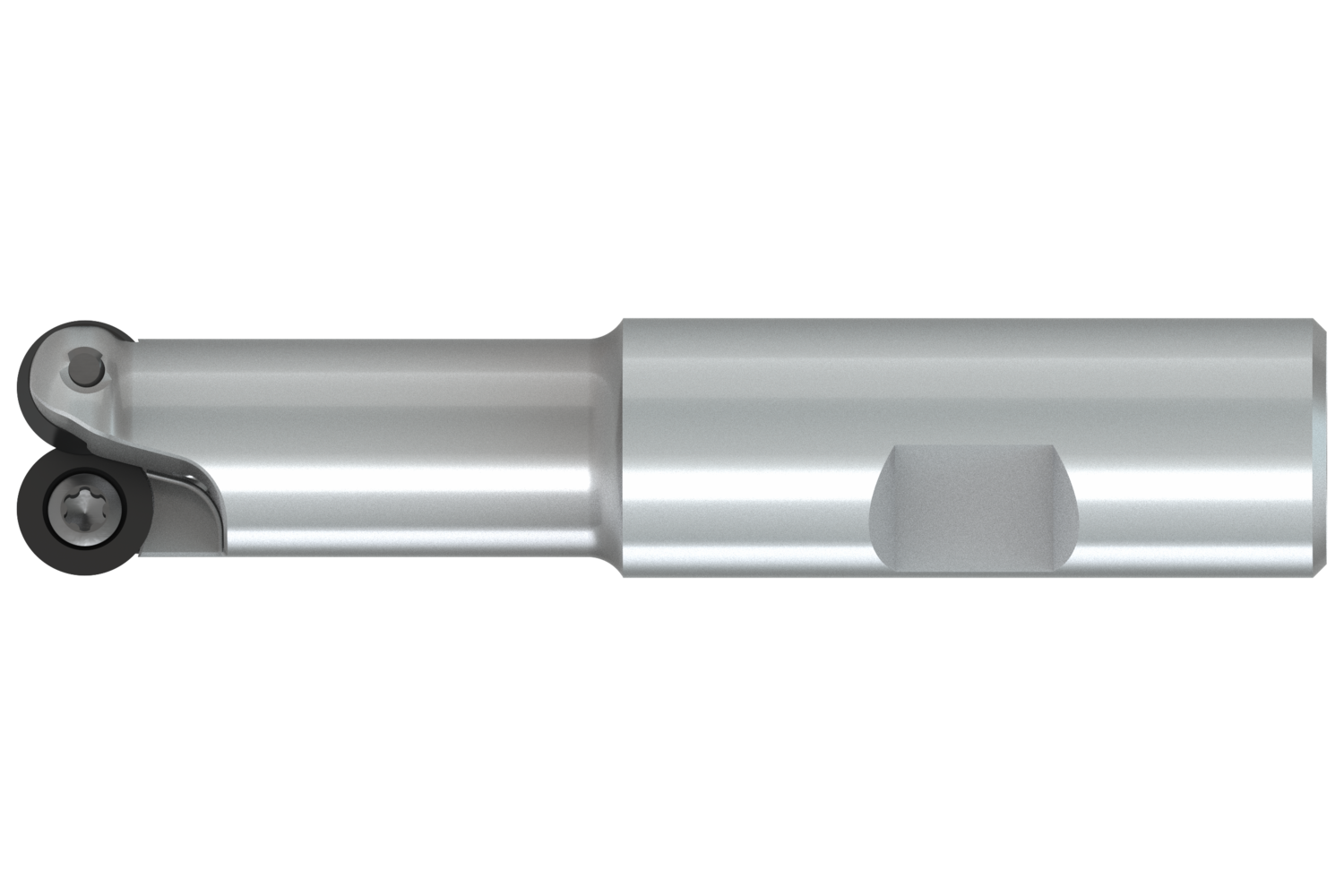

Copy face mill with positve/negative geometry which utilises 2 of RD.. 1003MOT or RDHT 1003MO-FA single-sided inserts, cutting diameter to maximum 0.750" with 0.750" Weldon shank according to DIN 1835B, 1.750" usable and 3.780" overall length, through coolant for face milling, copy milling, ramping, progressive plunge milling and helical milling with a maximum depth of cut of 0.098"
- Product Name ISO: 075E2R175W075-ISRD10-CF
- Ordering Code ANSI: 075E2R175W075-ISRD10-CF
- EDP Number: 7999182

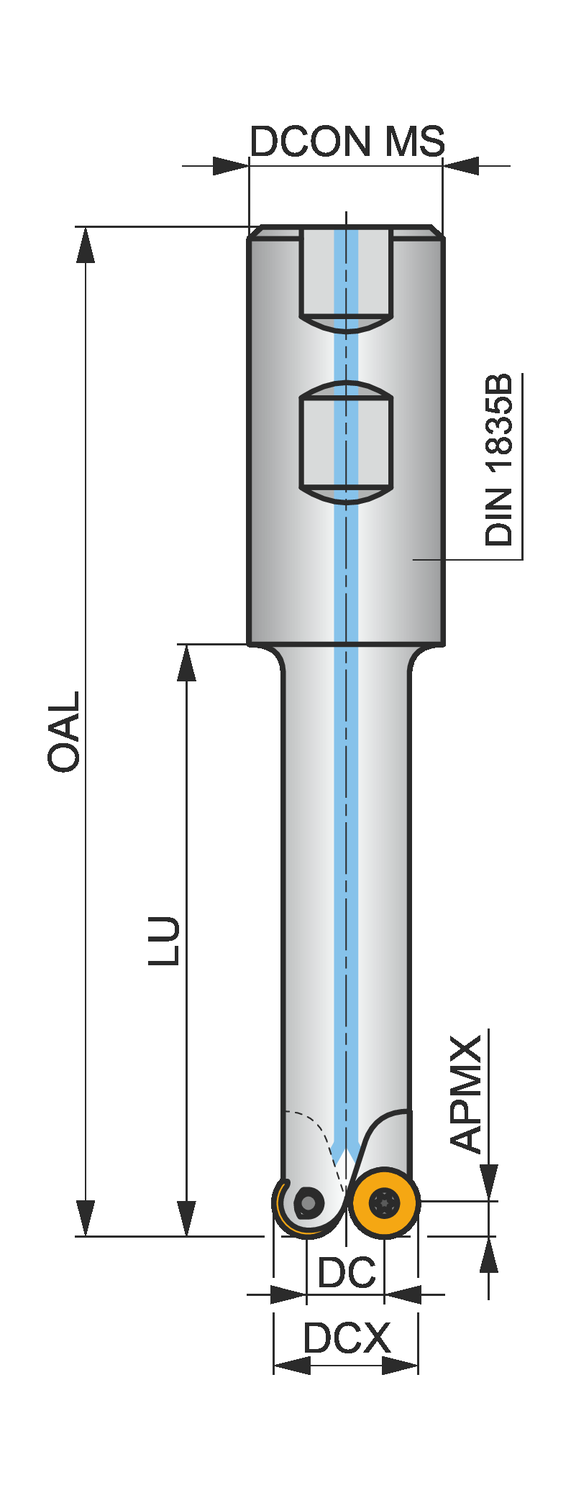

| Product Measurement Standard | Inch |
| Cutting Diameter (In.) | 0.357 |
| Connection Diameter (Mm.) | 19.1 |
| Overall Length (Mm.) | 96 |
| Max Depth of Cut (In.) | 0.098 |
| Connection Diameter (In.) | 0.75 |
| Overall Length (In.) | 3.78 |
| Shank | Weldon Shank DIN 1835B |
| Cutting Direction | Right |
| Clamping Type | Screw Clamping Through Hole |
| Cooling | 1 |
