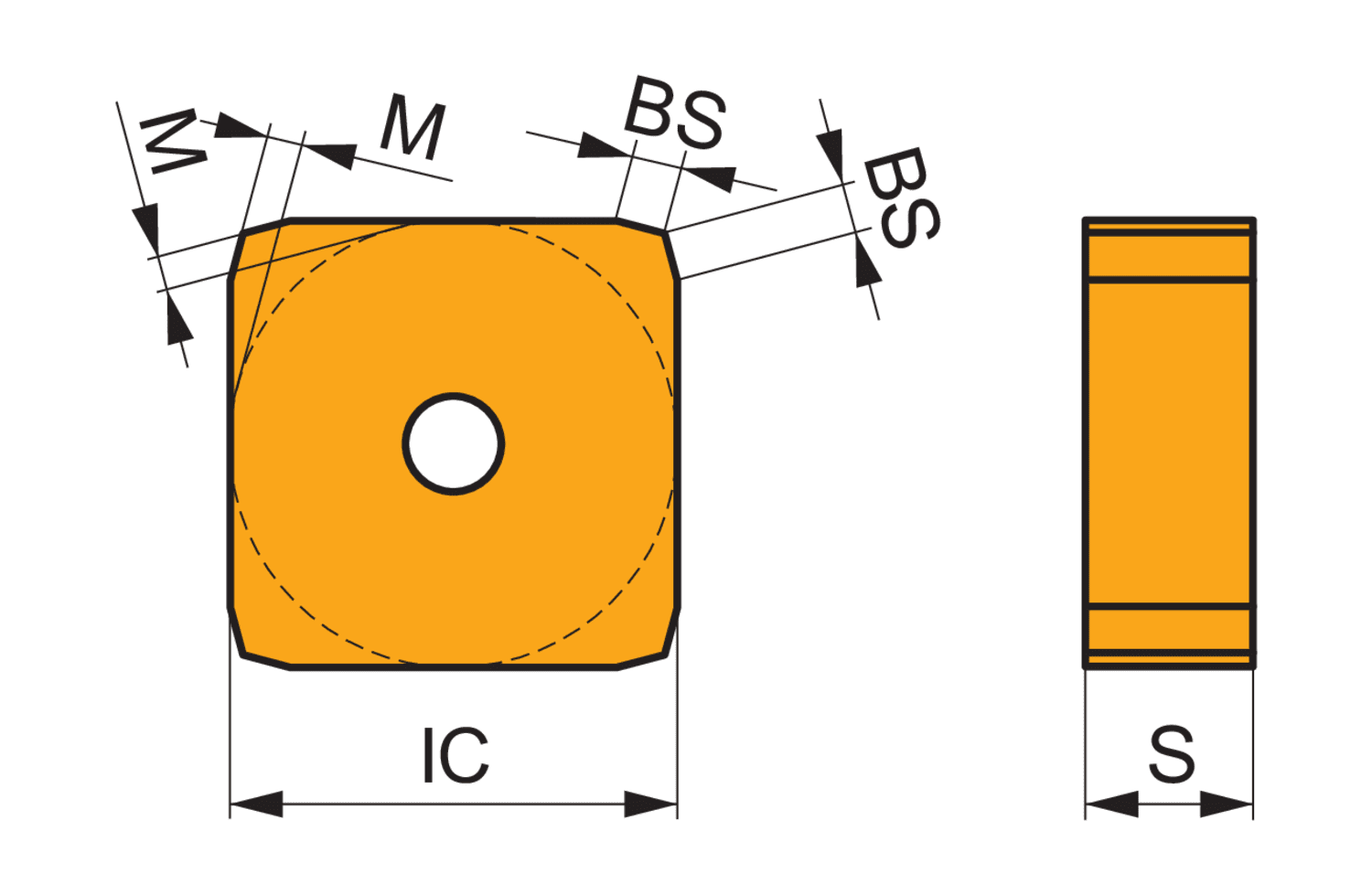

Double-sided milling insert SNHN 1204 with a plane rake surface, square for a maximum depth of cut of .3543", with " corner radius, an indexing accuracy according to ISO-tolerance class-H with rounded cutting edges, S26 uncoated WC-(Ti, Ta, Nb)C-Co carbide
- Product Name ISO: SNHN 1204ENEN:S26
- Ordering Code ANSI: SNHN 43ENEN:S26
- EDP Number: 6751637
- Coating: S26
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 9 |
| Inscribing Circle Dia. (Mm.) | 12.7 |
| Insert Thickness (Mm.) | 4.76 |
| Max Depth of Cut (In.) | 0.354 |
| Coating | S26 |
