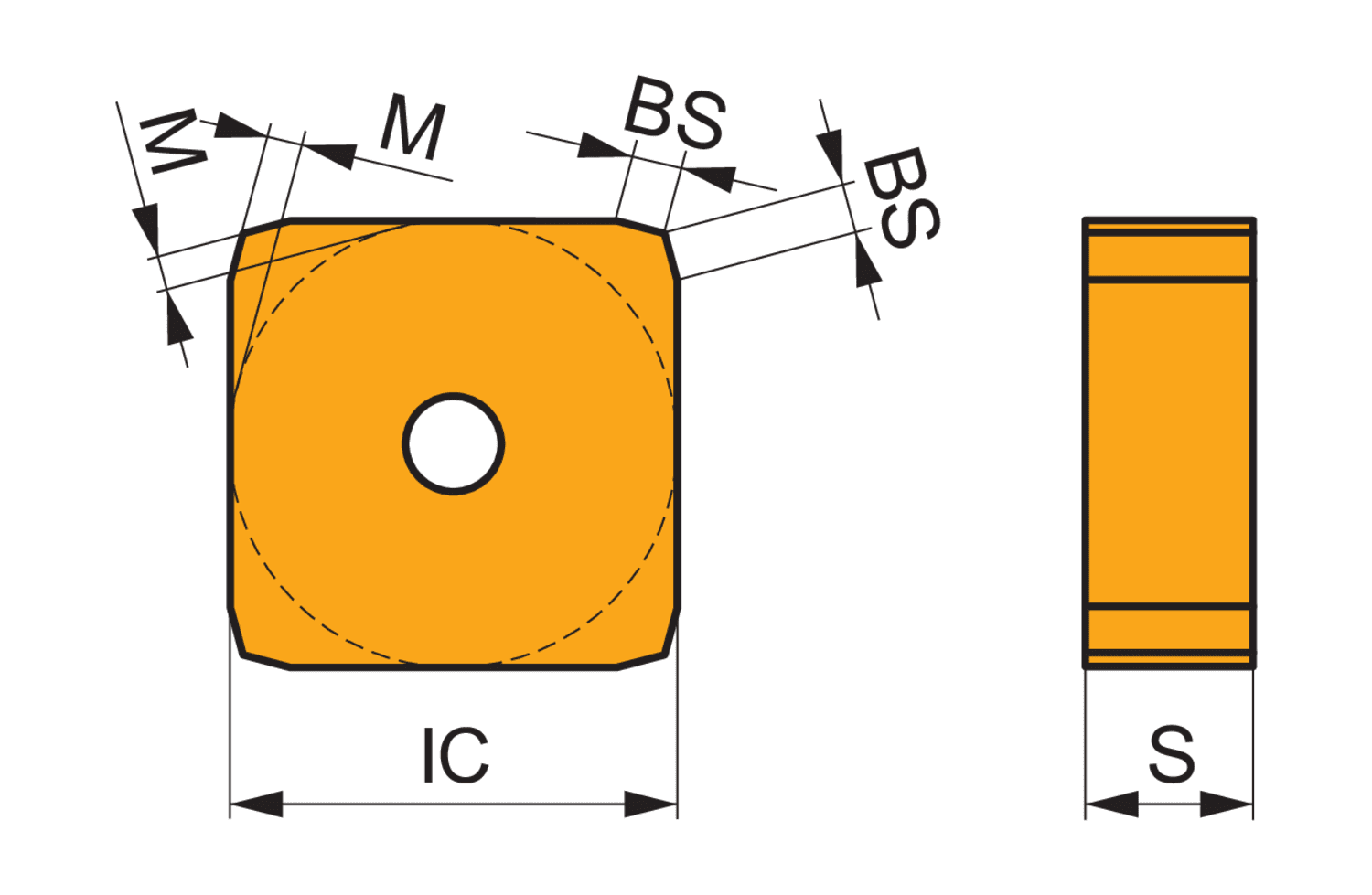

Double-sided milling insert SNHN 1504 with a plane rake surface, square for a maximum depth of cut of .5315", with " corner radius, an indexing accuracy according to ISO-tolerance class-H with rounded cutting edges, S26 uncoated WC-(Ti, Ta, Nb)C-Co carbide
- Product Name ISO: SNHN 1504ENEN:S26
- Ordering Code ANSI: SNHN 53ENEN:S26
- EDP Number: 6751639
- Coating: S26
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 13.5 |
| Inscribing Circle Dia. (Mm.) | 15.875 |
| Insert Thickness (Mm.) | 4.76 |
| Max Depth of Cut (In.) | 0.531 |
| Coating | S26 |
