Double-sided negative turning insert, 35° rhomboid with inscribed circle diameter of 9.525mm, 4.76mm thick, 0.4mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker SF with rounded cutting edges, in grade T8430, a PVD coated fine grained WC-Co carbide within ISO ranges P20 -P40 and M20 -M35, for fine to medium machining of steels and stainless-steels
- Product Name ISO: VNMG 160404E-SF:T8430
- Ordering Code ANSI: VNMG 331-SF:T8430
- EDP Number: 7977414
- Coating: T8430
- Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Product Measurement Standard | Metric |
| Corner Radius (Mm.) | 0.4 |
| Fixing Hole Diameter (Mm.) | 3.81 |
| Inscribing Circle Dia. (Mm.) | 9.525 |
| Insert Thickness (Mm.) | 4.76 |
| Insert Geometry | Negative |
| Coating | T8430 |
There are no reviews yet
Customers who bought this item also bought
Turning Insert - Positive - DCGT 32.50.5-SF3:T6310
$14.18 excl tax
New
Insert DCGT 3-1-AS IC20
$13.20 excl tax
Turning Insert - Positive - DCGT 32.51-SF3:T6310
$13.38 excl tax
Turning Insert - Negative - CNMG 432-SF:T8430
$9.82 excl tax
New
SR 14-551
$2.12 excl tax
New
Insert VNMG 2.5-1-NF IC907
$11.40 excl tax
New
End Mill - 1/8 x 1/2 x 1-1/2 5F .015R XVaria5
$24.74 excl tax
New
End Mill - 7/32 x 1/4 x 5/8 x 2-1/2 4F XVaria4
$28.92 excl tax
New
End Mill - 1/2 x 1-1/4 x 3 7F R.030 XVaria7
$82.82 excl tax
New
End Mill - 5/16 x 3/4 x 2 6F .015R XVaria6
$46.20 excl tax
New

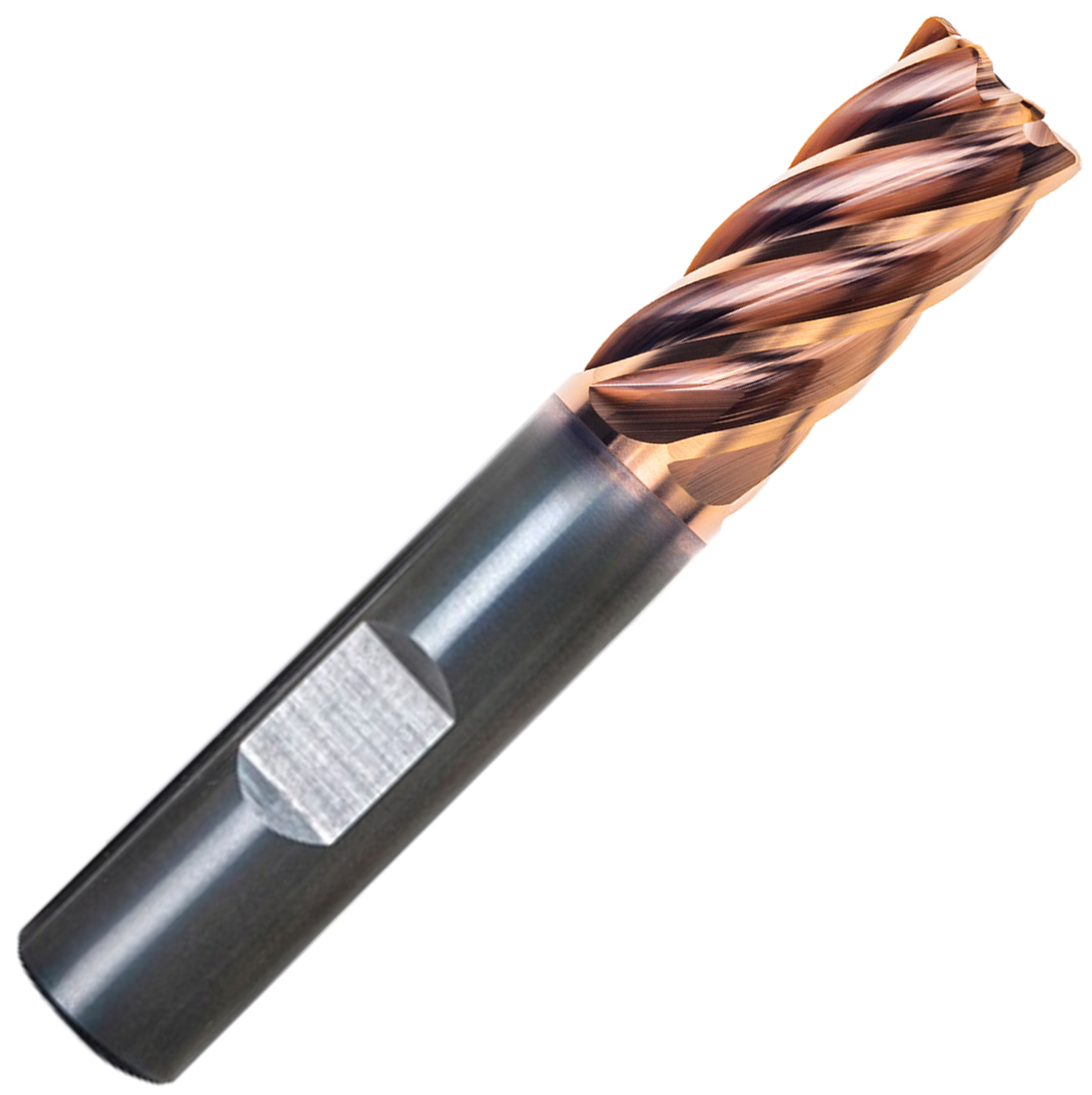

End Mill - 1/2 x 1-1/4 x 3 6F .060R XVaria6
