Double-sided negative turning insert, 55° rhomboid with inscribed circle diameter of 1/2", 3/16" thick, 1/32" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker M, in grade T9415, a MT-CVD coated functionally graded WC-Co carbide within ISO range P05 - P30, for fine to heavy machining of steels
- Product Name ISO: DNMG 150408E-M:T9415
- Ordering Code ANSI: DNMG 432-M:T9415
- EDP Number: 8183393
- Coating: T9415
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Product Measurement Standard | Metric |
| Corner Radius (Mm.) | 0.8 |
| Fixing Hole Diameter (Mm.) | 5.16 |
| Inscribing Circle Dia. (Mm.) | 12.7 |
| Insert Thickness (Mm.) | 4.76 |
| Insert Geometry | Negative |
| Coating | T9415 |
There are no reviews yet
Customers who bought this item also bought

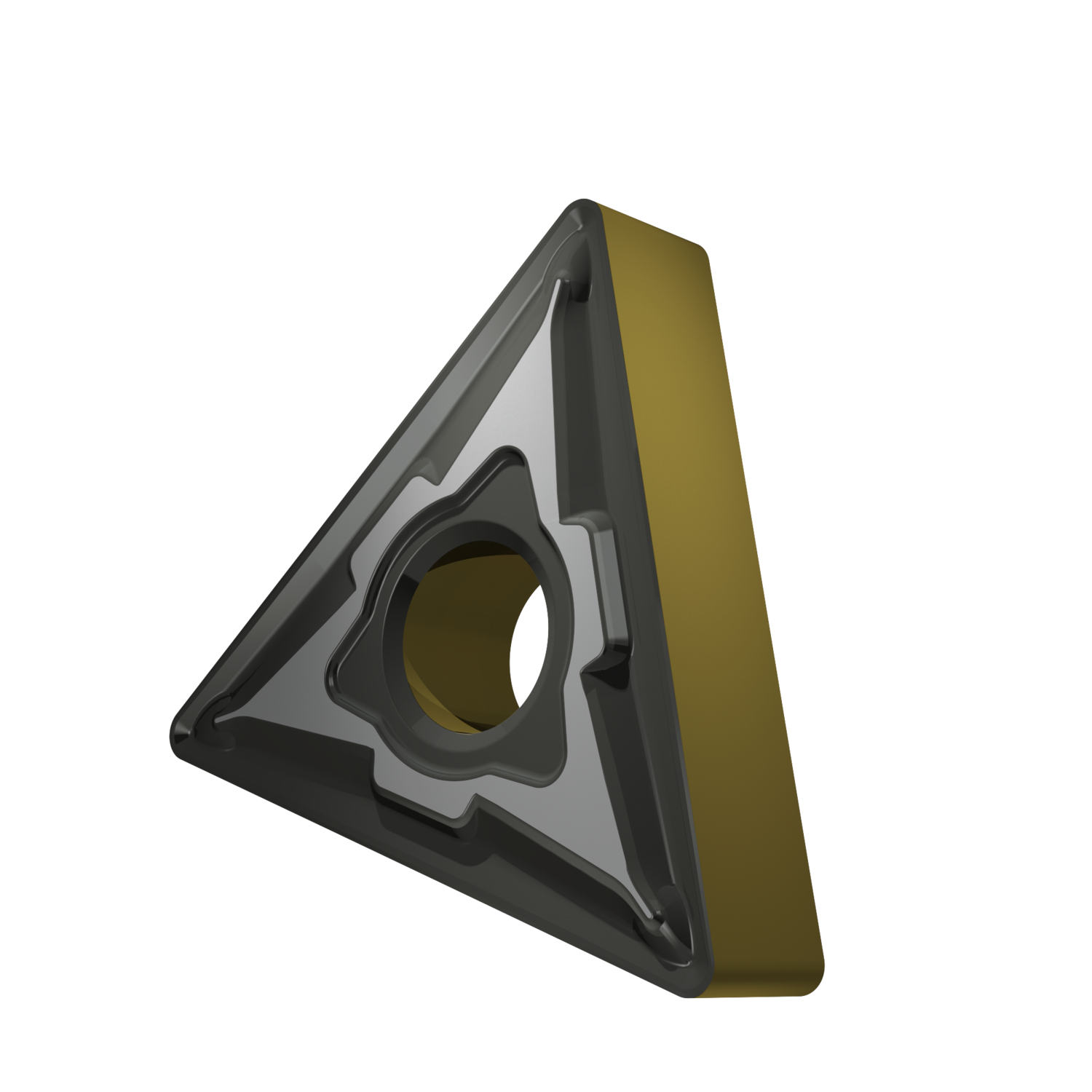

Turning Insert - Negative - TNMG 432-M:T9415
$11.47 excl tax
New
Glove Spandex w/ Palm Nitrile – L
From $1.95 excl tax

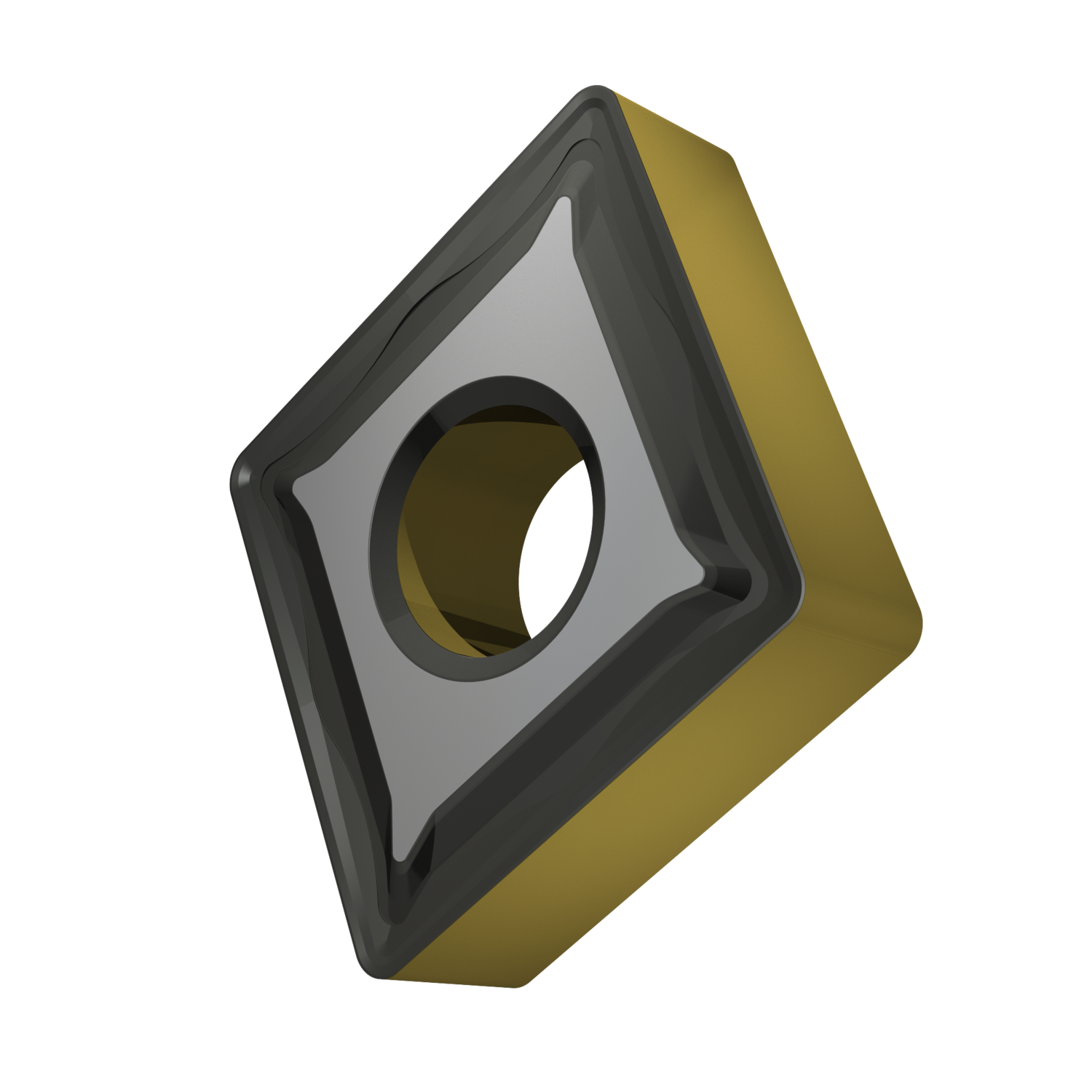

Turning Insert - Negative - CNMG 643-R:T9415
$21.20 excl tax
Turning Insert - Negative - TNMG 543-RM:T9325
$18.28 excl tax

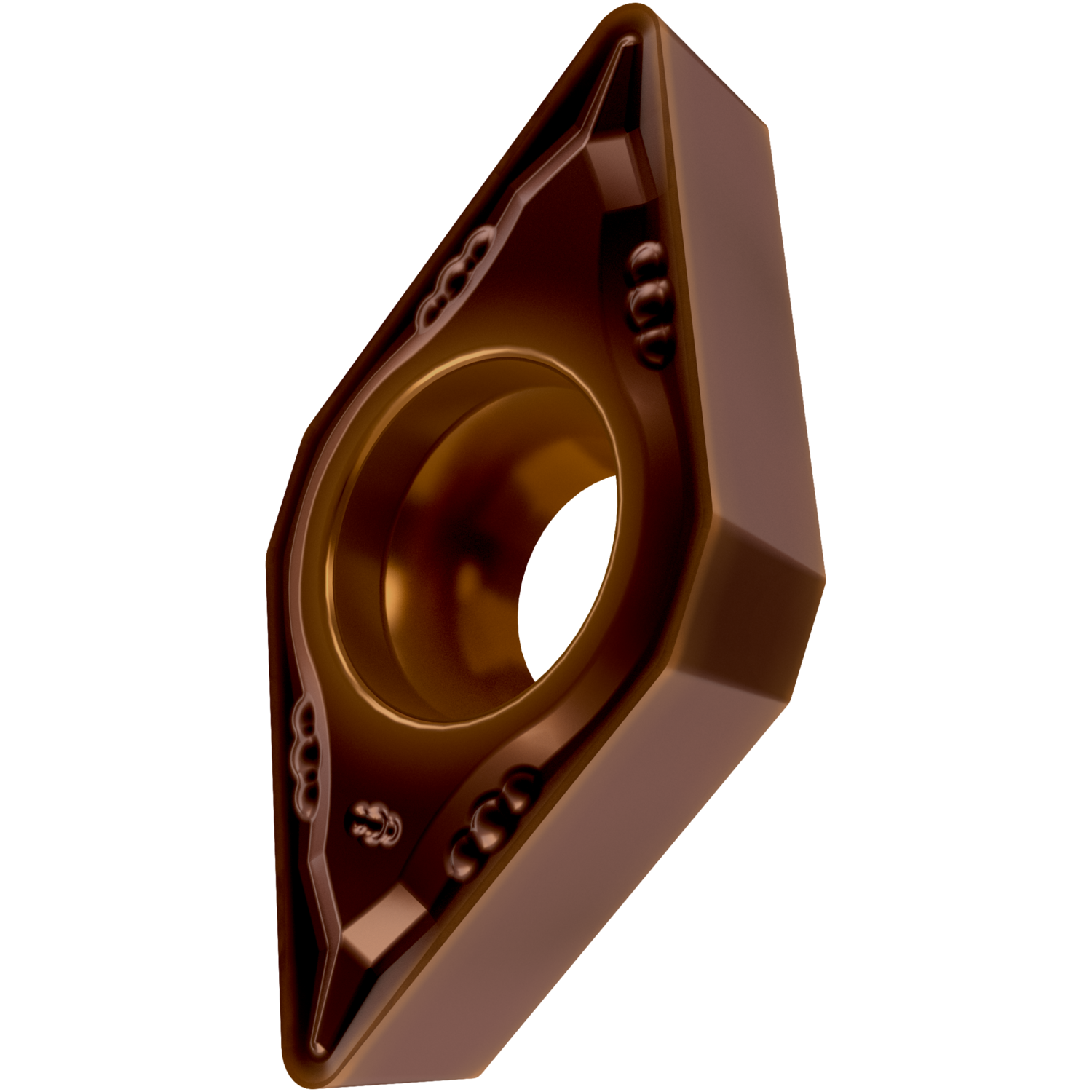

Turning Insert - Positive - DCMT 32.51-FM:T8430
