Double-sided negative turning insert, 80° rhomboid with inscribed circle diameter of 5/8", 1/4" thick, 3/64" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker R, in grade T9415, a MT-CVD coated functionally graded WC-Co carbide within ISO range P05 - P30, for medium to heavy machining of steels
- Product Name ISO: CNMG 160612E-R:T9415
- Ordering Code ANSI: CNMG 543-R:T9415
- EDP Number: 8244249
- Coating: T9415
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Product Measurement Standard | Metric |
| Corner Radius (Mm.) | 1.2 |
| Fixing Hole Diameter (Mm.) | 6.35 |
| Inscribing Circle Dia. (Mm.) | 15.875 |
| Insert Thickness (Mm.) | 6.35 |
| Insert Geometry | Negative |
| Coating | T9415 |
There are no reviews yet
Customers who bought this item also bought
5/32" Hex L-Wrench - Long
$0.42 excl tax
Turning Insert - Negative - CNMG 432-SM:ST5005
$11.25 excl tax
Hand Deburring Tool Blade - B10P
$3.87 excl tax
New
Insert NG4189L
$41.31 excl tax
6mm Hex L-Wrench - Long
$0.81 excl tax
14mm Hex L-Wrench - Long
$6.22 excl tax
7/64" Hex L-Wrench - Long
$0.36 excl tax
12mm Hex L-Wrench - Long
$5.38 excl tax
End Mill - 1/2 x 1-1/4 x 3 5F XVaria5
$118.00 excl tax
3/16" Hex L-Wrench - Long
$0.40 excl tax
3/32" Hex L-Wrench - Long
$0.34 excl tax

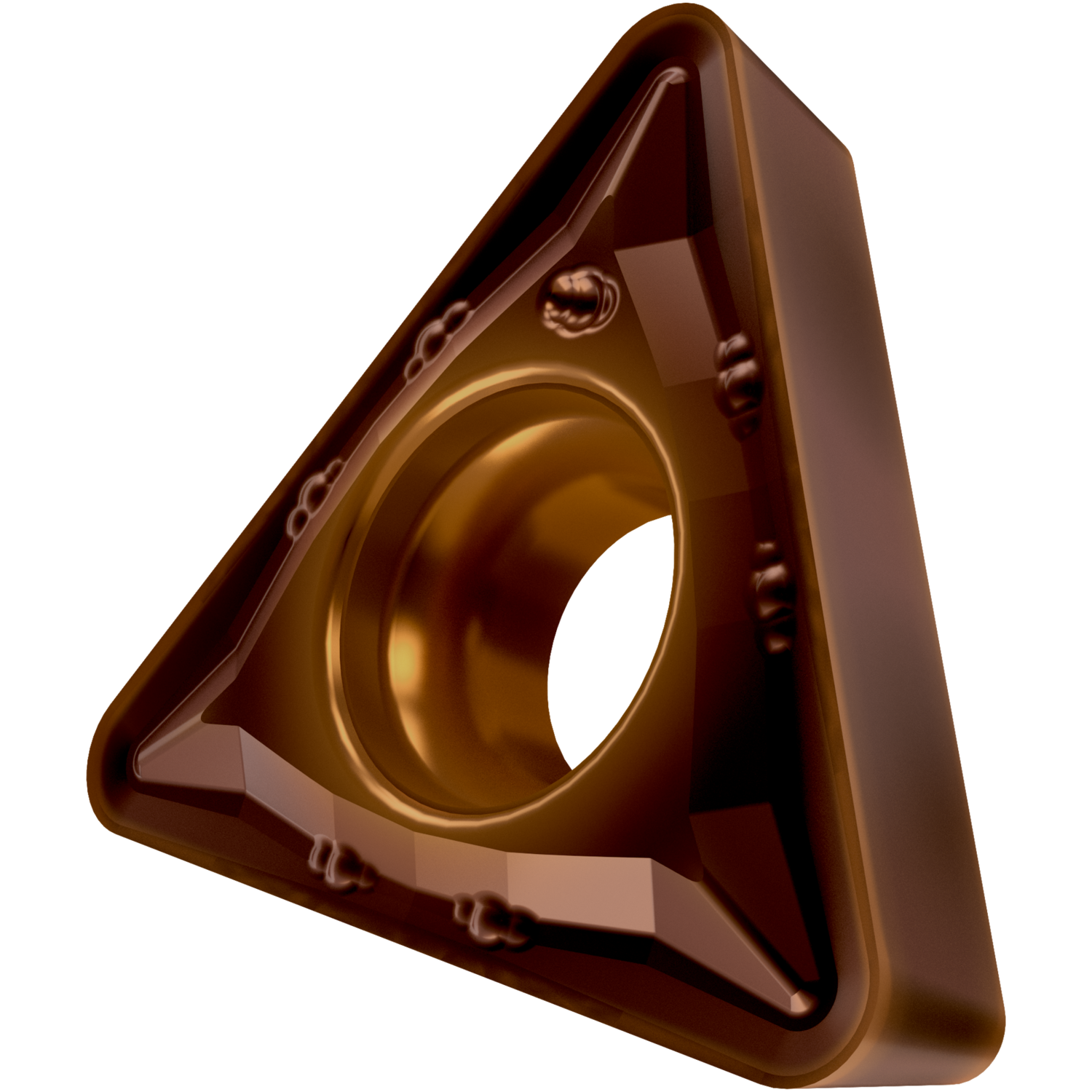

Turning Insert - Positive - TCMT 21.51-FM:T8430
