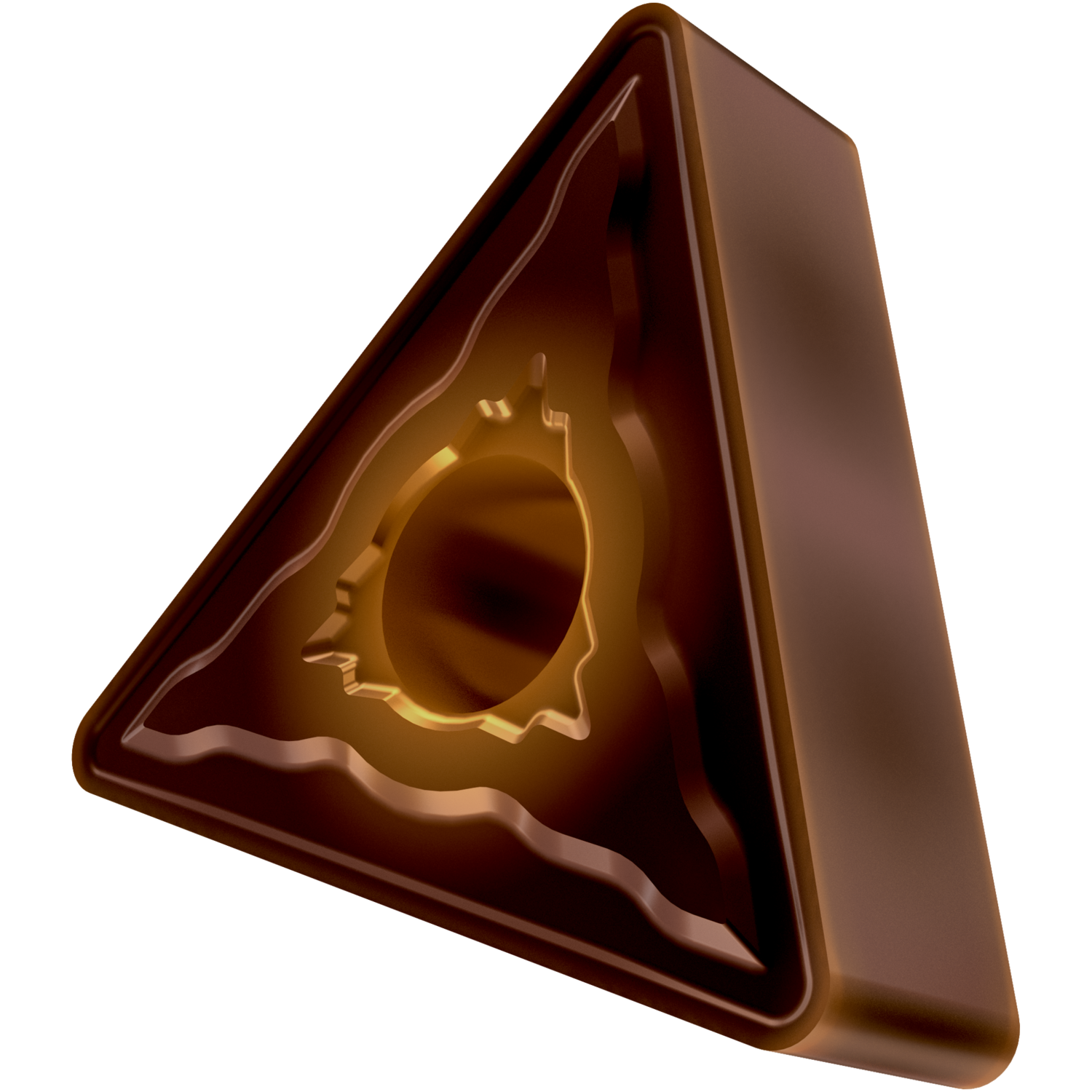

Double-sided negative turning insert, triangular with inscribed circle diameter of 9.525mm, 4.76mm thick, 0.8mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker FM with rounded cutting edges, in grade T8430, a PVD coated fine grained WC-Co carbide within ISO range P20 -P40, for fine to medium machining of steels
- Product Name ISO: TNMG 160408E-FM:T8430
- Ordering Code ANSI: TNMG 332-FM:T8430
- EDP Number: 7977140
- Coating: T8430
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Product Measurement Standard | Metric |
| Corner Radius (Mm.) | 0.8 |
| Fixing Hole Diameter (Mm.) | 3.81 |
| Inscribing Circle Dia. (Mm.) | 9.525 |
| Insert Thickness (Mm.) | 4.76 |
| Insert Geometry | Negative |
| Coating | T8430 |
