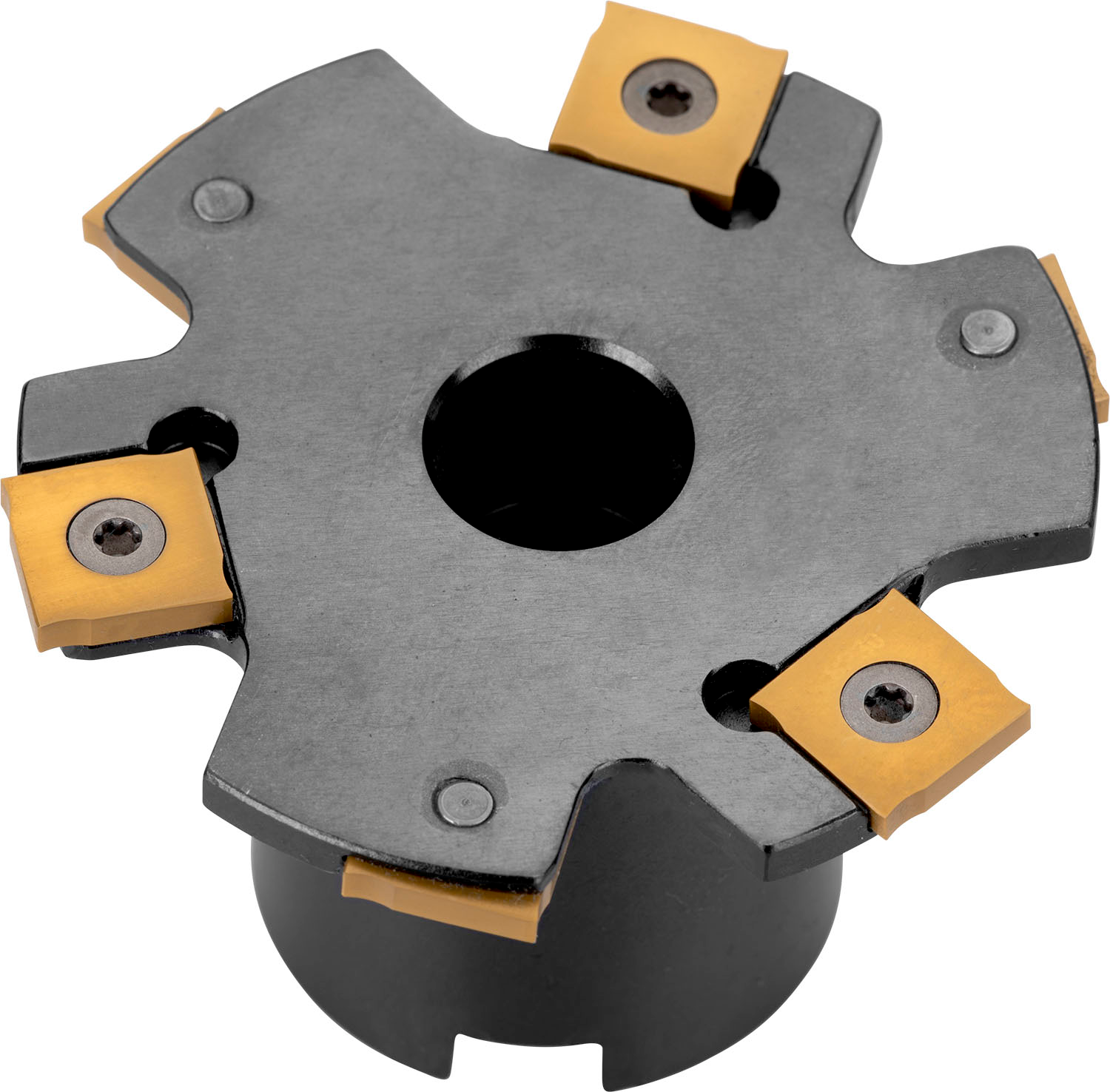

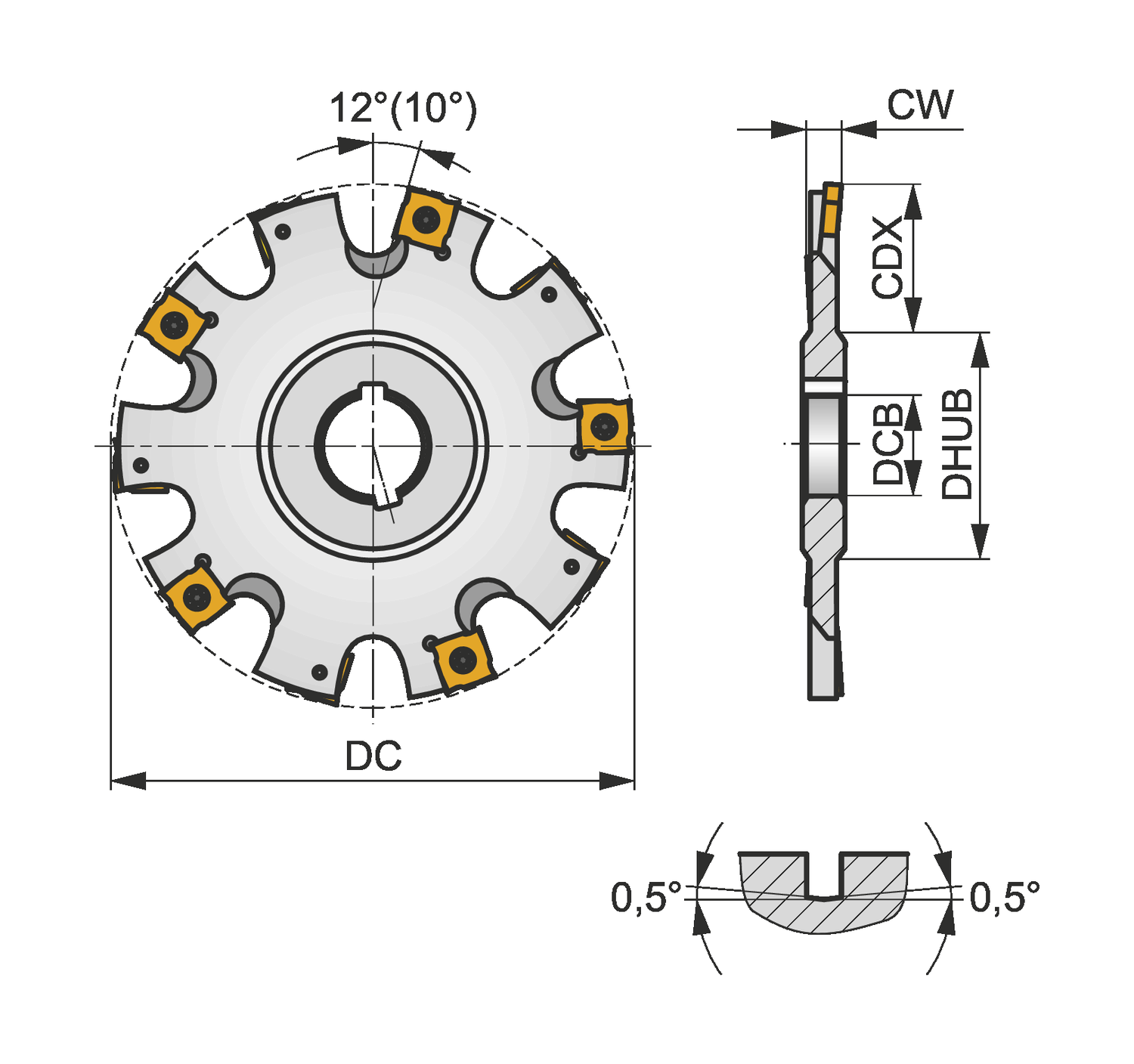

Disc mill with double positive geometry which utilises 8 off SNHQ 1102.. double-sided inserts, cutting diameter 3.000'' with 90° approach angle and .750'' connection bore according to DIN 8030-A, 1.575'' protrusion length for deep slot milling with a width of cut of .187''
- Product Name ISO: 300A04R-IS90SN11N3
- Ordering Code ANSI: 300A04R-IS90SN11N3
- EDP Number: 6789670
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Product Measurement Standard | Inch |
| Cutting Diameter (Mm.) | 76.2 |
| Cutting Diameter (In.) | 3 |
| Overall Length (Mm.) | 40 |
| Overall Length (In.) | 1.575 |
| Shank | Shell Mill DIN 8030 A |
| Cutting Direction | Right |
| Clamping Type | Screw Clamping Through Hole |
