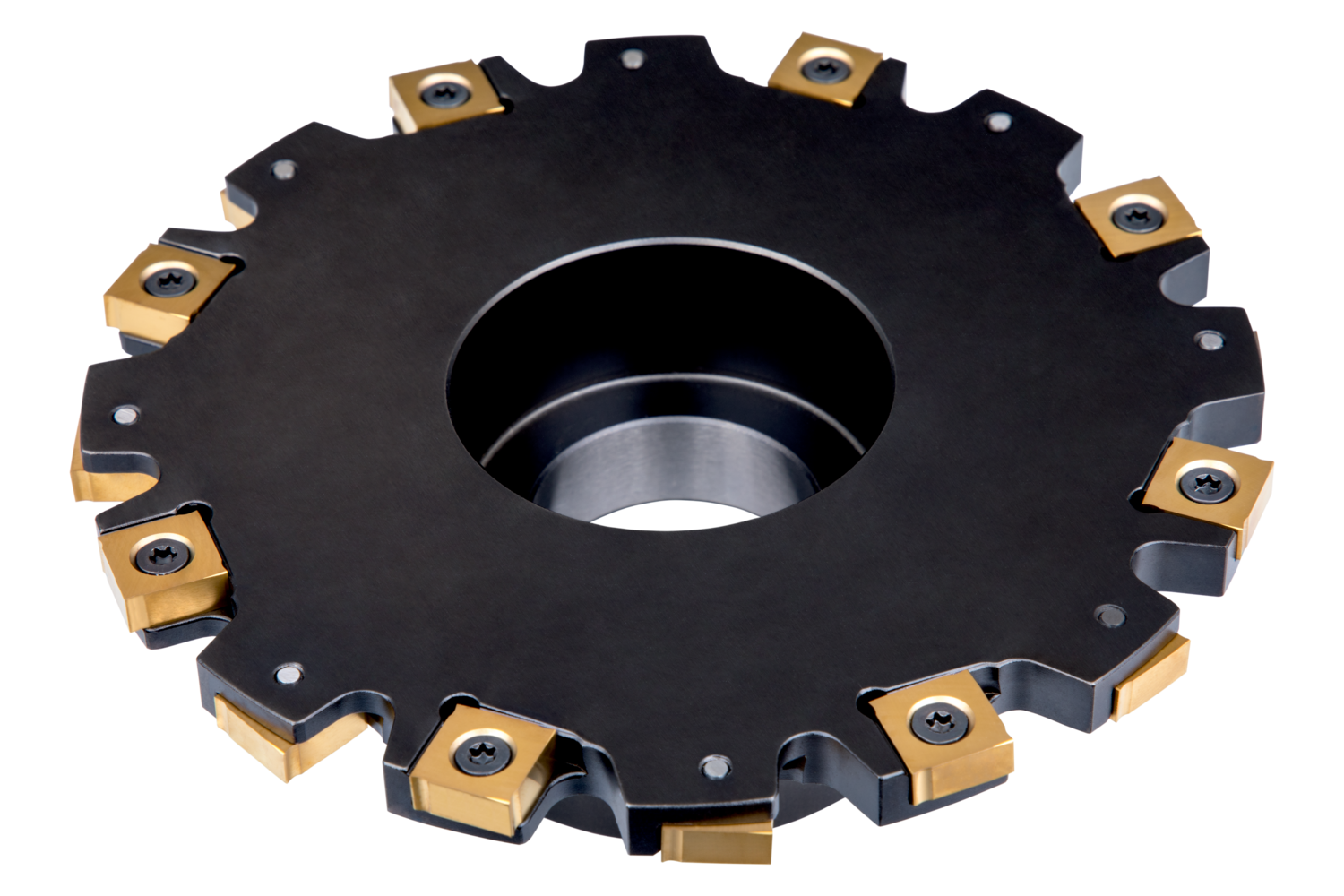

Disc mill with double positive geometry which utilises 16 off SNHQ 1102.. double-sided inserts, cutting diameter 6.000'' with 90° approach angle and 1.500'' connection bore according to DIN 8030-B, 1.969'' protrusion length for deep slot milling with a width of cut of .375''
- Product Name ISO: 600B08R-IS90SN12N6
- Ordering Code ANSI: 600B08R-IS90SN12N6
- EDP Number: 6789681
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Product Measurement Standard | Inch |
| Cutting Diameter (Mm.) | 152.4 |
| Cutting Diameter (In.) | 6 |
| Overall Length (Mm.) | 50 |
| Overall Length (In.) | 1.969 |
| Shank | Shell Mill DIN 8030 B |
| Cutting Direction | Right |
| Clamping Type | Screw Clamping Through Hole |
