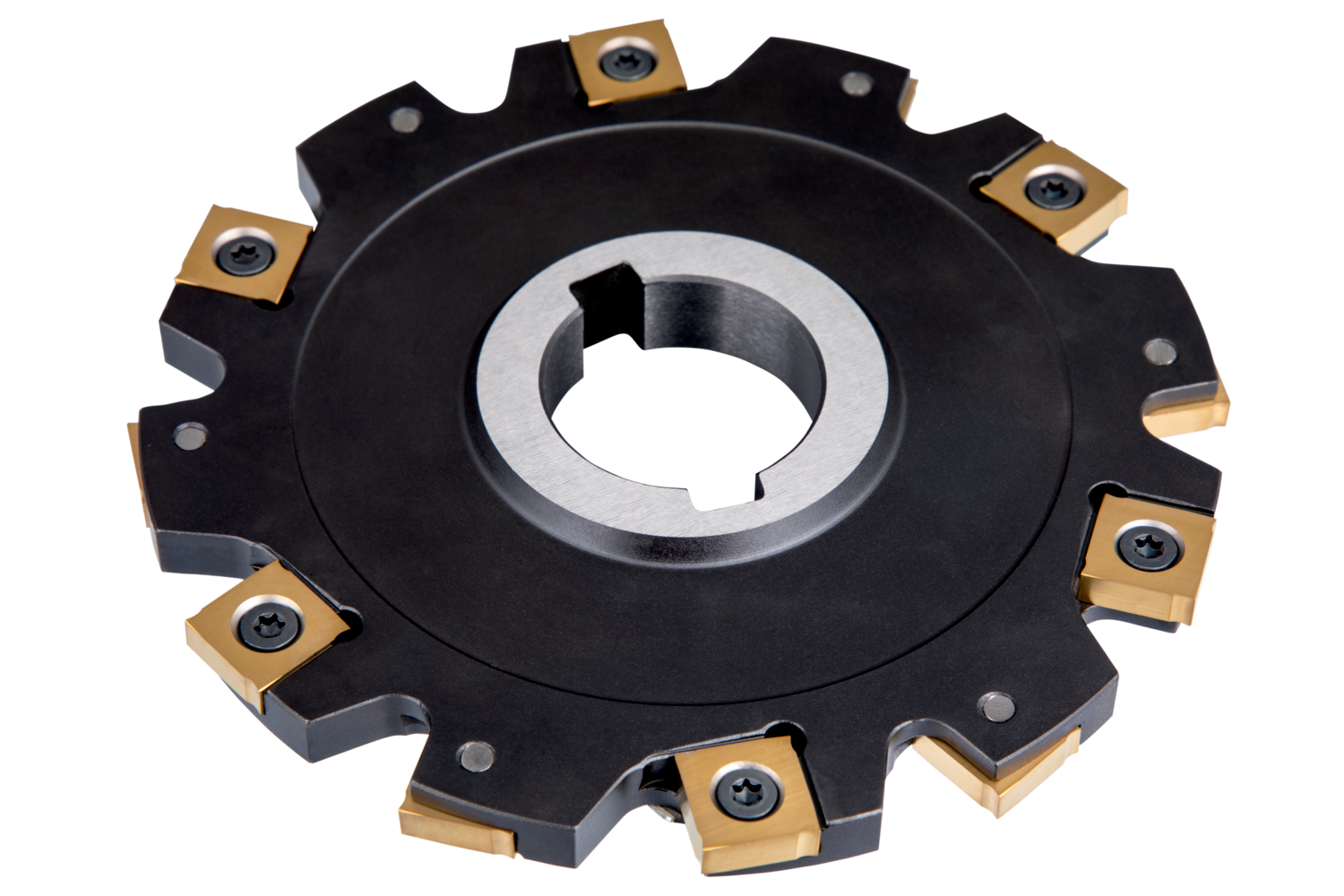

Disc mill with double positive geometry which utilises 16 off SNHQ 1102.. double-sided inserts, cutting diameter 6.000'' with 90° approach angle and 1.250'' connection bore according to DIN 8030, for deep slot milling with a width of cut of .250''
- Product Name ISO: 600H08N-IS90SN12N4
- Ordering Code ANSI: 600H08N-IS90SN12N4
- EDP Number: 6789682
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)

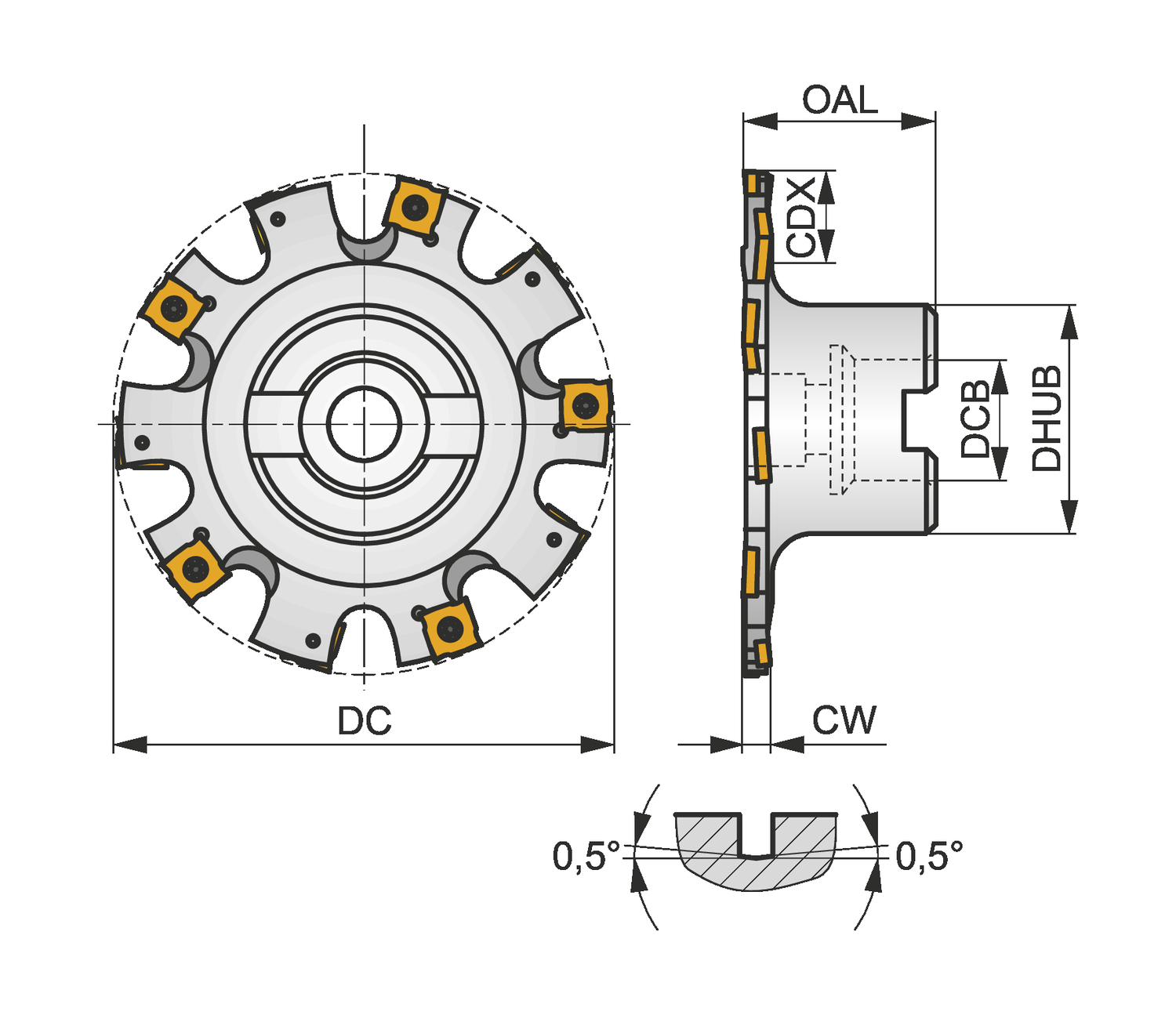

Product Measurement Standard | Inch |
Cutting Diameter (Mm.) | 152.4 |
Cutting Diameter (In.) | 6 |
Shank | Shell Mill DIN 8030 – Disc Mill |
Cutting Direction | Neutral |
Clamping Type | Screw Clamping Through Hole |
