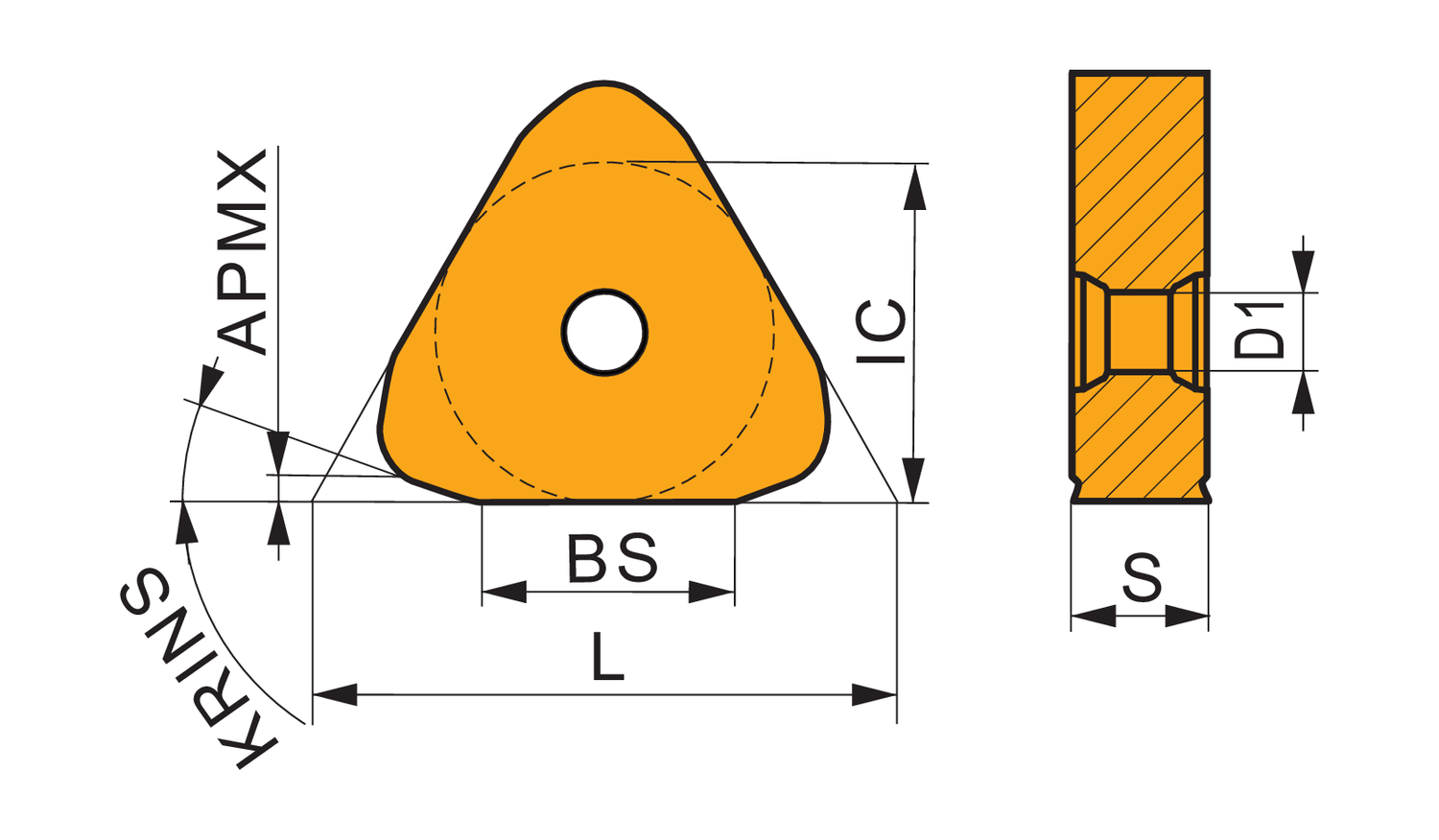

Double-sided negative barpeeling insert, triangular with inscribed circle diameter of 21.96mm, 7.94mm thick for 2mm depth of cut, indexing accuracy according to ISO-tolerance class-G, chip-breaker PM with S02 cutting edge preperation, in grade T9226, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges P15-P35 and M10-M30, for medium strength steels and stainless-steels
- Product Name ISO: TNGJ 220720-PM-S02:T9226
- Ordering Code ANSI: TNGJ 220720-PM-S02:T9226
- EDP Number: 6931833
- Coating: T9226
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 2 |
| Fixing Hole Diameter (Mm.) | 7 |
| Inscribing Circle Dia. (Mm.) | 21.96 |
| Insert Thickness (Mm.) | 7.94 |
| Max Depth of Cut (In.) | 0.079 |
| Coating | T9226 |
