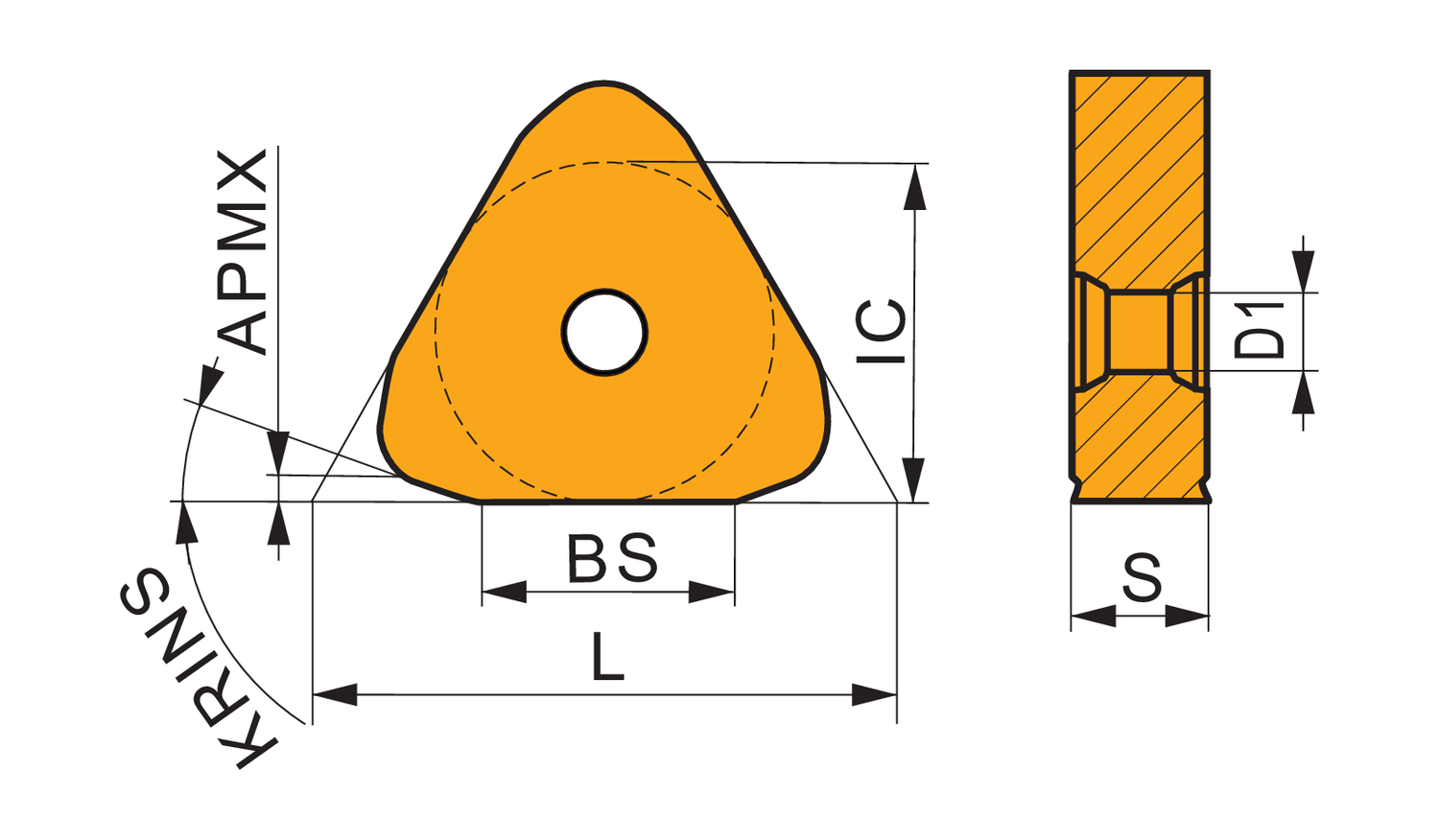

Double-sided negative barpeeling insert, triangular with inscribed circle diameter of 28.6mm, 10mm thick for 2.5mm depth of cut, indexing accuracy according to ISO-tolerance class-G, chip-breaker PF with S01 cutting edge preperation, in grade 6630, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges P15-P35 and M10-M30, for high strength steels and stainless-steels
- Product Name ISO: TNGJ 281025-PF-S01:6630
- Ordering Code ANSI: TNGJ 281025-PF-S01:6630
- EDP Number: 6752812
- Coating: 6630
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 2.5 |
| Fixing Hole Diameter (Mm.) | 7 |
| Inscribing Circle Dia. (Mm.) | 28.6 |
| Insert Thickness (Mm.) | 10 |
| Max Depth of Cut (In.) | 0.098 |
| Coating | 6630 |
