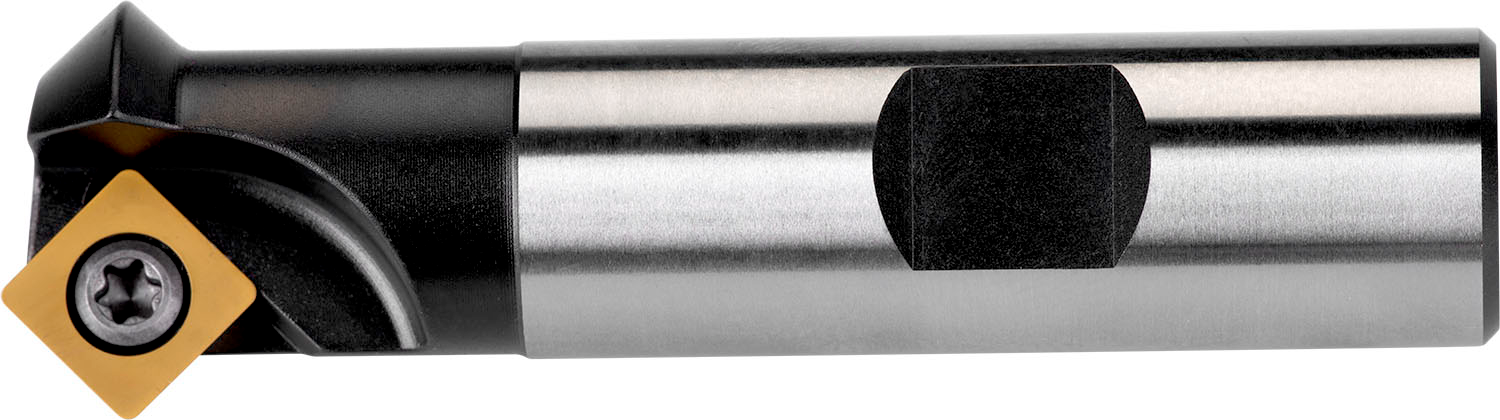

Chamfer mill with double negative geometry which utilises 2 off SDEW 0903.. or SDEX 0903.. single-sided inserts, cutting diameter .625'' with 45° approach angle and .625'' Weldon shank according to DIN 1835B, 2.969'' overall length for chamfering with a maximum depth of cut of .177''
- Product Name ISO: 062N2R106W062-ISSD09
- Ordering Code ANSI: 062N2R106W062-ISSD09
- EDP Number: 6789708
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)

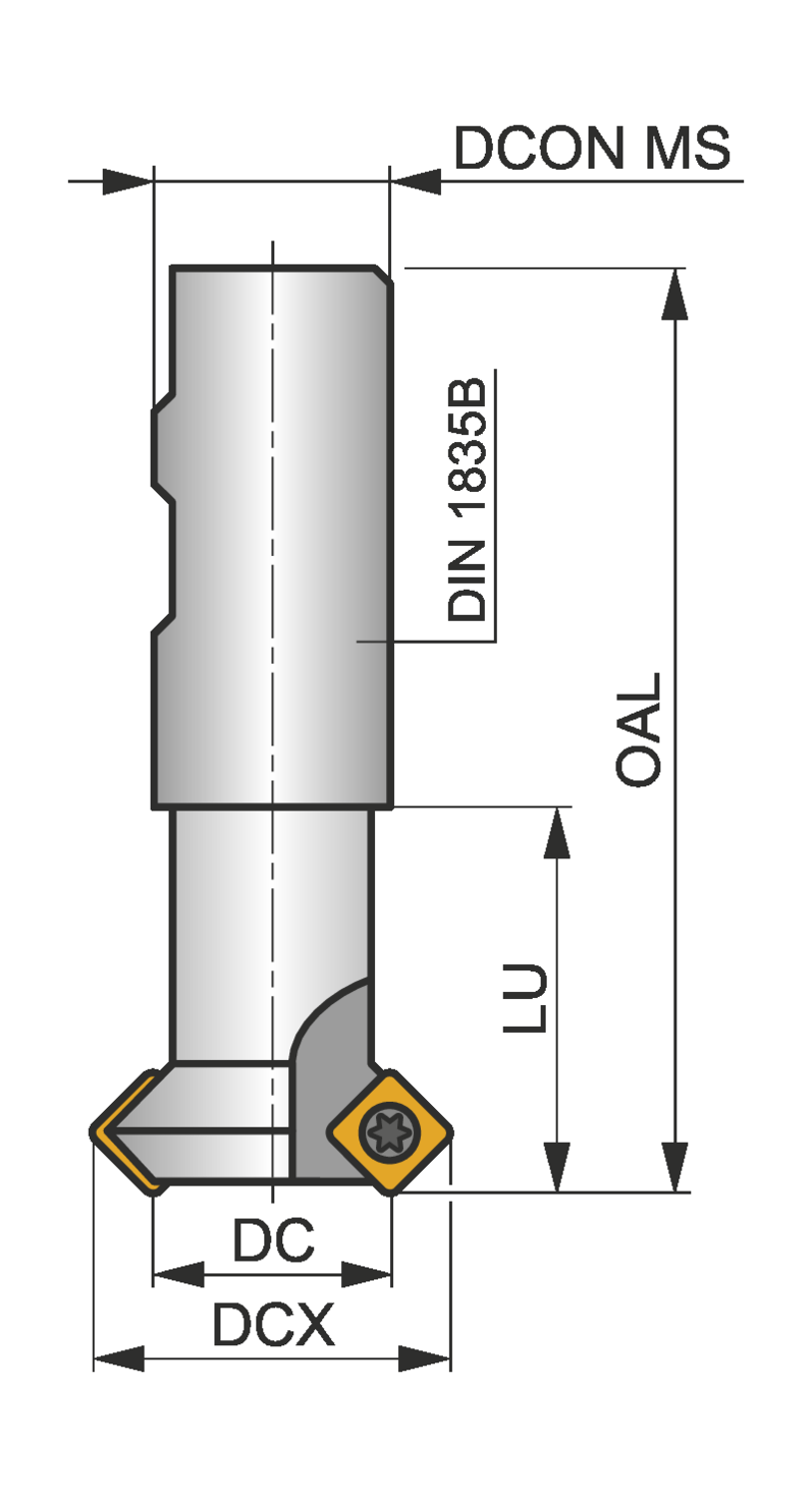

| Product Measurement Standard | Inch |
| Cutting Diameter (Mm.) | 15.9 |
| Cutting Diameter (In.) | 0.625 |
| Connection Diameter (Mm.) | 15.9 |
| Overall Length (Mm.) | 75 |
| Connection Diameter (In.) | 0.625 |
| Overall Length (In.) | 2.969 |
| Shank | Weldon Shank DIN 1835B |
| Cutting Direction | Right |
| Clamping Type | Screw Clamping Through Hole |
