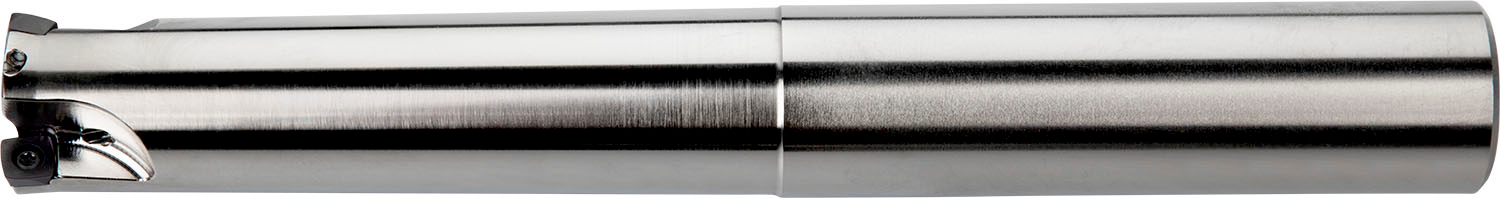

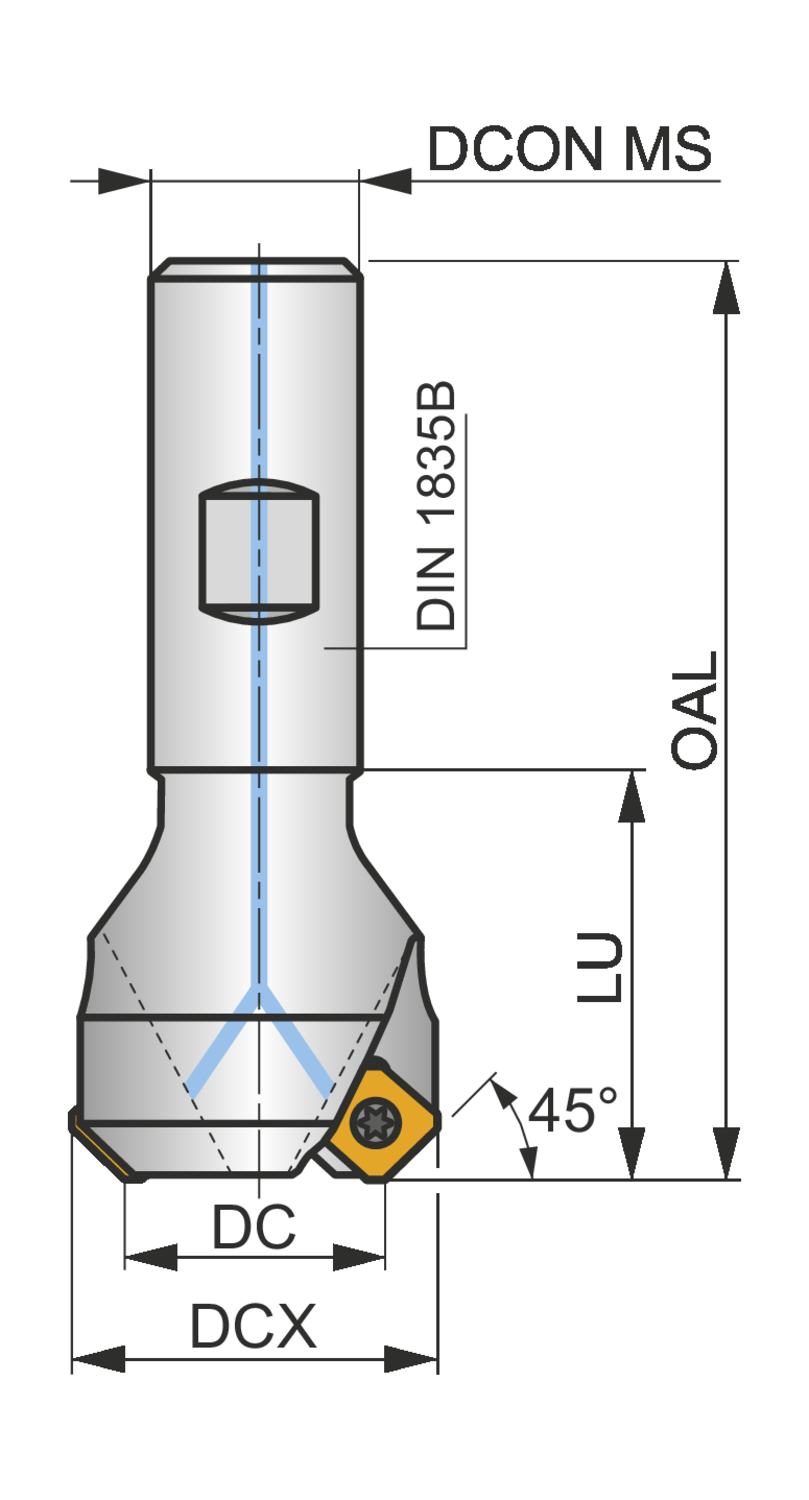

Face mill with positve/negative geometry which utilises 4 off SEET 09T3AF.. or SEMT 09T3AF.. single-sided inserts, cutting diameter 1.250 to maximum 1.644'' with 45° approach angle and 1.250'' Weldon shank according to DIN 1835B, 4.039'' overall length, through coolant for face milling and chamfering with a maximum depth of cut of .177''
- Product Name ISO: 125N4R150W125-ISSE09-C
- Ordering Code ANSI: 125N4R150W125-ISSE09-C
- EDP Number: 6789714
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Product Measurement Standard | Inch |
| Cutting Diameter (Mm.) | 31.8 |
| Cutting Diameter (In.) | 1.25 |
| Connection Diameter (Mm.) | 31.8 |
| Overall Length (Mm.) | 103 |
| Connection Diameter (In.) | 1.25 |
| Overall Length (In.) | 4.039 |
| Shank | Weldon Shank DIN 1835B |
| Cutting Direction | Right |
| Clamping Type | Screw Clamping Through Hole |
| Cooling | 1 |
