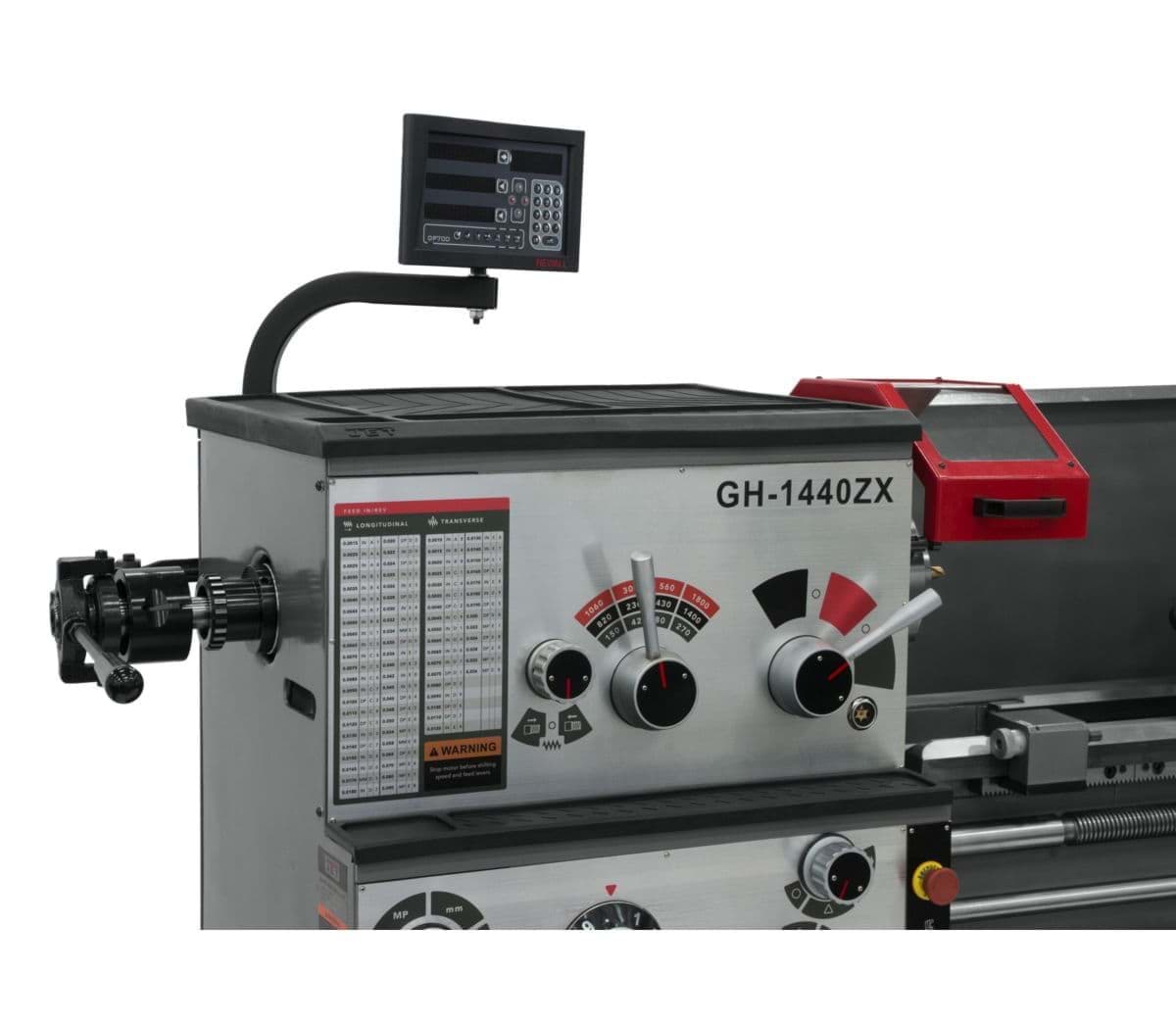

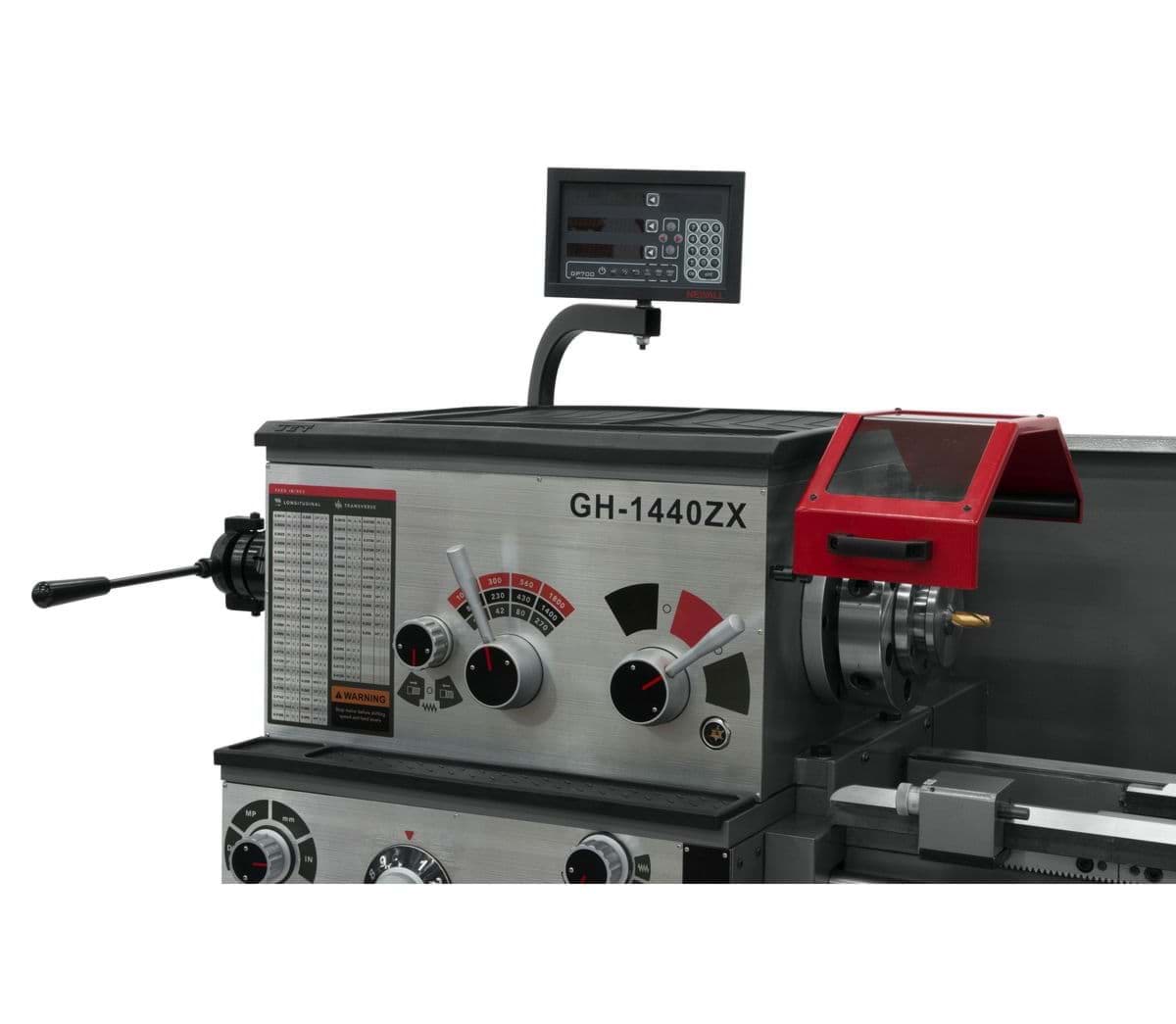

GH-1440ZX With Newall DP700 DRO With Collet Closer
- 3-1/8” bore spindle is supported by two tapered and one ball bearings
- Chrome molybdenum headstock gears are hardened, ground and shaved
- Universal gearbox allows inch, metric, diametral and module pitch threads, no change gears required
- Carriage features one-shot lubrication and Turcite-B on bed sliding surfaces
- T-slotted compound slide featuring four-way tool post
- One piece cast iron base absorbs vibration allowing heavier cuts
- High quality ANSI Class 50 wear resistant cast iron bed ways are
- Removable gap allows large diameter work
- Five position automatic carriage stop increases productivity
- Meehanite Castings
| Number of Longitudinal and Cross Feed Rates | 46/31 |
| Number of Metric Threads | 24 |
| Max Tool Size (In.) | 1 x 1 |
| Overall Dimensions (LxWxH)(In.) | 96 x 44 x 66 |
| Swing Through Gap (In.) | 23-5/8 |
| Weight (Lbs.) | 5,187 |
| Width of Bed (In.) | 13-3/8 |
| Motor (HP) | 7-1/2 HP, 230/460, 3 Ph |
| Swing Over Bed (In.) | 14 |
| Cross Slide Travel (In.) | 9 |
| Taper in Tailstock Spindle | MT-4 |
| Compound Slide Travel (In.) | 5-1/8 |
| Range of Metric Threads | .05 - 20 |
| Carriage Travel (In.) | 36-9/16 |
| Steady Rest Capacity (In.) | 3/8 - 7 |
| Number of Inch Threads | 61 |
| Range of Spindle Speeds (RPM) | 42 - 1,800 |
| Spindle Mount | D-18 |
| Follow Rest Capacity (In.) | 1/2 - 3-1/2 |
| Spindle Bore (In.) | 3-1/8 |
| Range of Inch Threads (TPI) | 1-5/8 - 72 |
| Digital Readout | Newall DP700 |
| Size | 14 x 40 |
| Spindle Taper with Sleeve | MT-7 (MT-5) |
| Swing Over Cross Slide (In.) | 7-5/8 |
| Number of Spindle Speeds | 12 |
| Tailstock Spindle Travel (In.) | 6 |
| Style (Type) | Engine - Large Spindle Bore |
| Accessory 2 | Collet Closer |
| Length of Gap (In.) | 12 |
| Range of Cross Feeds (IPR) | .0006 - .0360 |
| Distance Between Centers (In.) | 40 |
| Range of Longitudinal Feeds (IPR) | .0015 - .0900 |
| Prewired (V.) | 230 |
