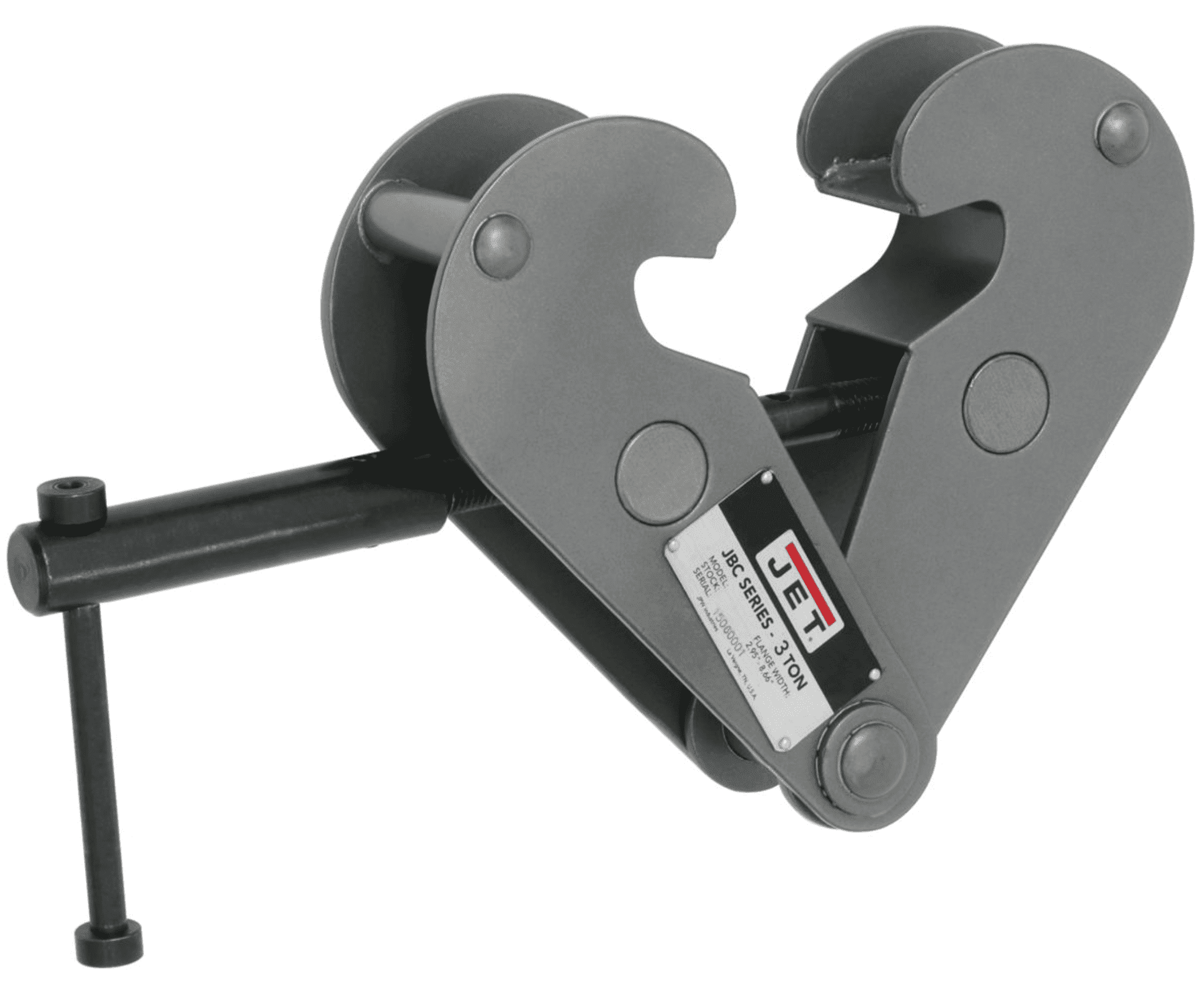

JBC-3, 3-Ton Beam Clamp
- Durability
- Robust construction for increased durability and longer life in demanding industrial environments
- Welded, enclosed pockets provide greater stability and durability where the beam clamp attaches to the beam/structure
- Larger, thicker diameter pins for increased durability and life
- Welded all-steel frame and powder coat finish provide maximum durability and protection
- Clamp jaw is designed to distribute the load away from the beam flange edge increasing safety
- Used for quick mounting of a hoist on a broad range of beams up to 10-5/8 inches wide for increased versatility
- Standards
- Complies with ANSI / ASME B30.17 and B30.20 standards
- Load tested to 125% of capacity with certificate
| Load Capacity (Metric Tons) | 3 |
| Capacity (Lbs.) | 6,600 |
| Weight (Lbs.) | 27 |
| Minimum Beam Flange Width (In.) | 4 |
| Load Capacity (Tons) | 3 |
There are no reviews yet
| Manufacturer warranty | ||
| 2 Year | ||
| Warranty details | ||
|
|
||
