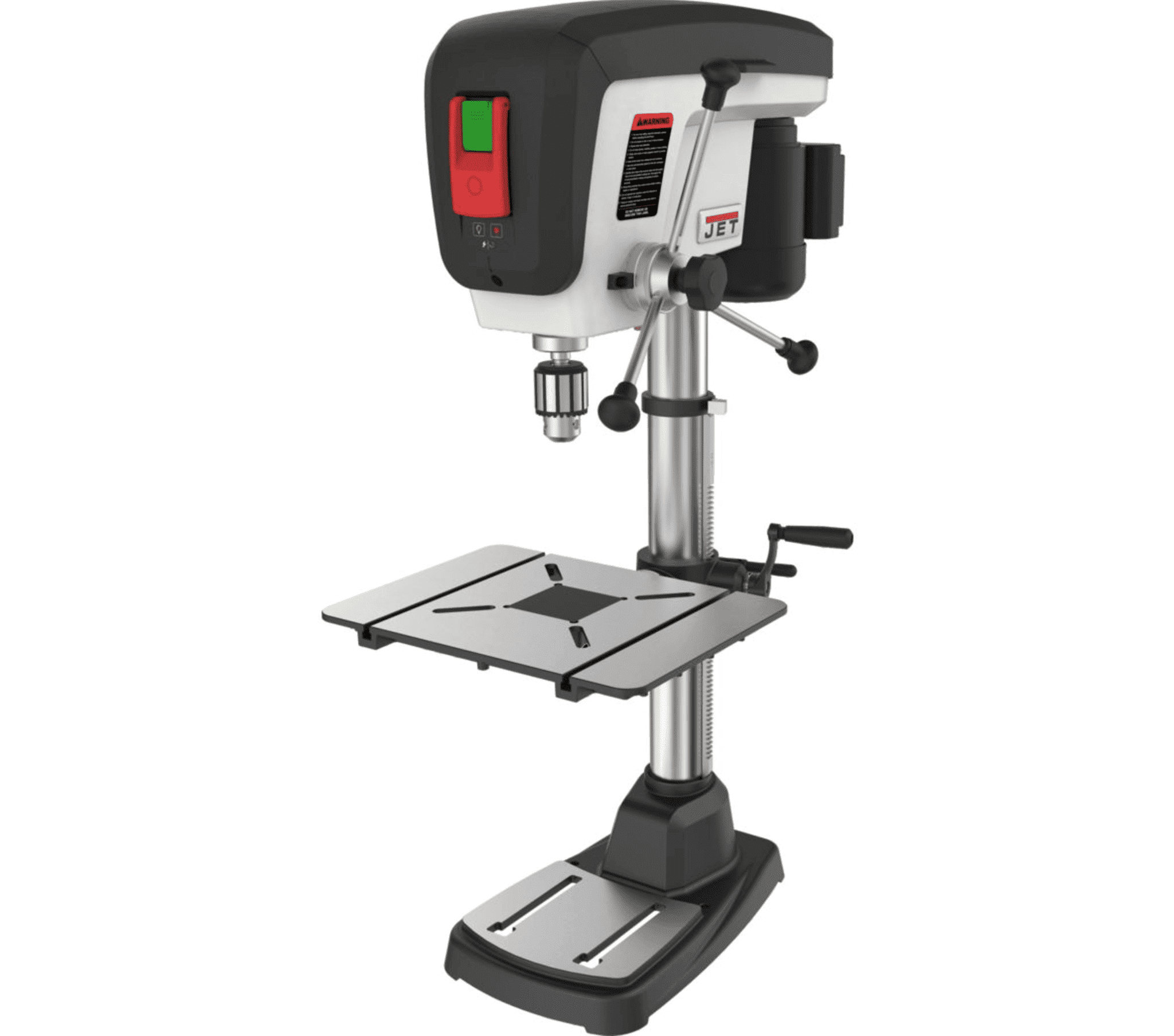

15" Benchtop Drill Press
- Spindle travels a full 3-1/8” with one revolution of the handle
- Large 12-1/2" x 17" precision ground work table features twin T-slot grooves and 4 table slots to accommodate any project
- One-handed belt tensioning allows for rapid speed changes
- Power switch features a safety key and large, paddle-style off button
- Integrated depth stop makes repetitive drilling quick and easy
- Xacta-X laser system easily identifies the drill center
- Long-lasting, built-in LED work light reduces shadows
- Table edge lip designed to make clamping easy
- Replaceable MDF table insert
- Large cast iron base provides stability
| Motor Power (HP) | 3/4 |
| Number of Spindle Speeds | 16 |
| Motor Voltage (V) | 115 |
| Spindle Speed Range (RPM) | 210 - 3500 |
| Spindle Distance to Table (Max.)(In.) | 18-5/16 |
| Style (Type) | SV_1375591258774 |
| Column Diameter (In.) | 2-3/4 |
| Swing (In.) | 15 |
| Chuck Size (In.) | 5/8 |
| Base Size (In.) | 18 x 11-3/8 |
| Motor Amps | 9 |
| Table Size (LxW)(In.) | 12-1/2 x 17 |
| Spindle Travel (In.) | 3-1/8 |
| Motor Phase (PH) | 1 |
| Prewired Voltage (V) | 115 only |
| Weight (Lbs.) | 154 |
| Spindle Taper | MT2/JT3 |
| Spindle Distance to Base (In.) | 26-3/4 |
| Assembled Machine Dimensions (LxWxH)(In.) | 27 x 17 x 42-1/2 |
There are no reviews yet
| Manufacturer warranty | ||
| 5 Year | ||
| Warranty details | ||
|
|
||
