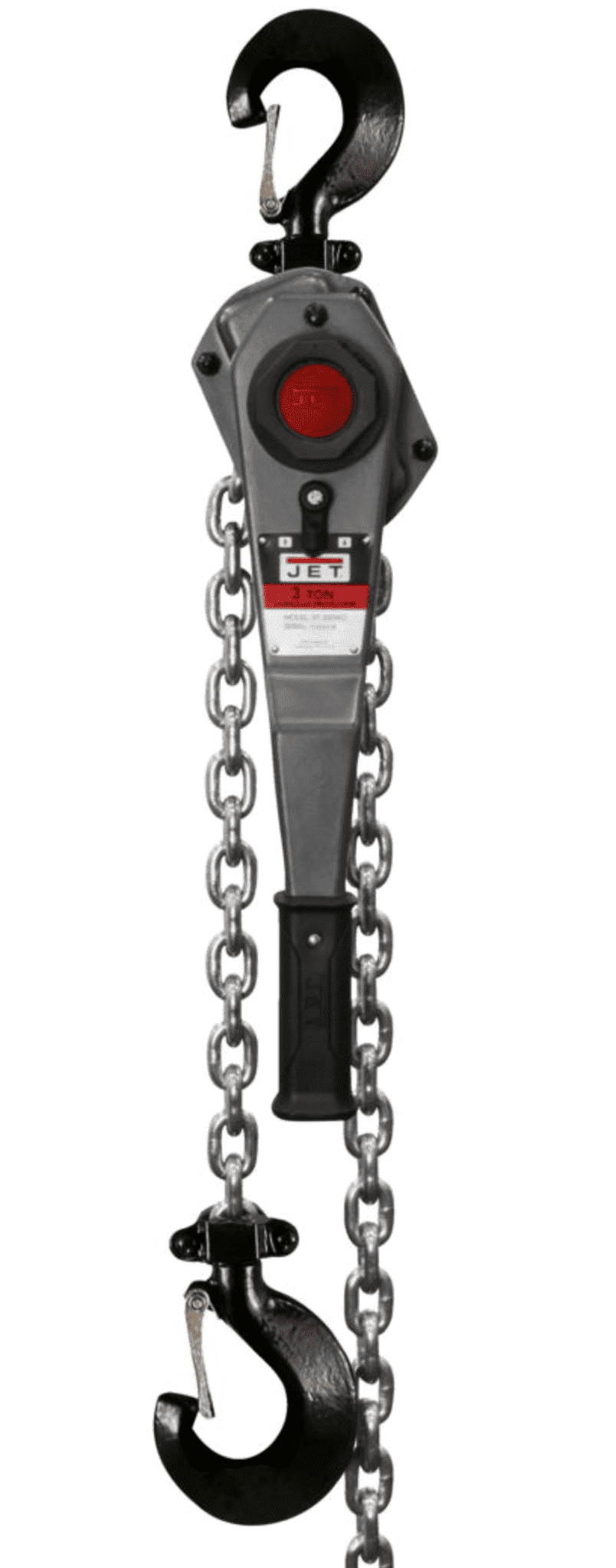

JLH Series 3 Ton Lever Hoist, 5' Lift with Overload Protection & Shipyard Hooks
- Safety
- Backed by a lifetime replacement warranty, JET’s revolutionary single-piece brake design fuses the three components into the safest brake system in the market
- NEW! All JLH-Series Lever Hoists come with slip clutch style overload protection that prevents lifting or pulling damaging loads beyond the rated capacity of the hoist and when triggered, the overload protection can be reset on site
- Weston style double ratchet pawl brake design splits the load to opposite sides of the ratchet gear for greater load security
- NEW! JET’s improved easy free chain design is a two-step, no load, free chaining system. The system permits quicker hoist positioning and take up of slack chain. And it is engineered not to free chain under load
- NEW! The patented, advanced offset handle design allows for extra clearance between the operator's hand and the load chain
- Industrial rated alloy steel hooks rotate 360 degrees for easy rigging and slowly stretch to indicate an overload situation
- Enhanced ergonomic grip allows for greater operator control and increased comfort
- Shipyard Hooks are blunt tip hooks, designed for point loading and virtually eliminate stretched hooks, reducing downtime for maintenance and repair
| Number of Falls | 1 |
| Lift per Turn (In.) | 3/4 |
| Load Capacity (Tons) | 3 |
| Lever Pull Force (LBF) | 84 |
| Weight (Lbs.) | 30 |
| Ship Yard Hooks | SV_1375591258807 |
| Lift (Ft.) | 5 |
| Headroom (In.) | 15-5/9 |
| Handle Length (In.) | 16-5/16 |
| Load Capacity (Metric Tons) | 3.2 |
| Overload Protection | Yes |
| Hook Throat Opening (In.) | 1-1/2 |
| Overall Width (In.) | 7-1/2 |
