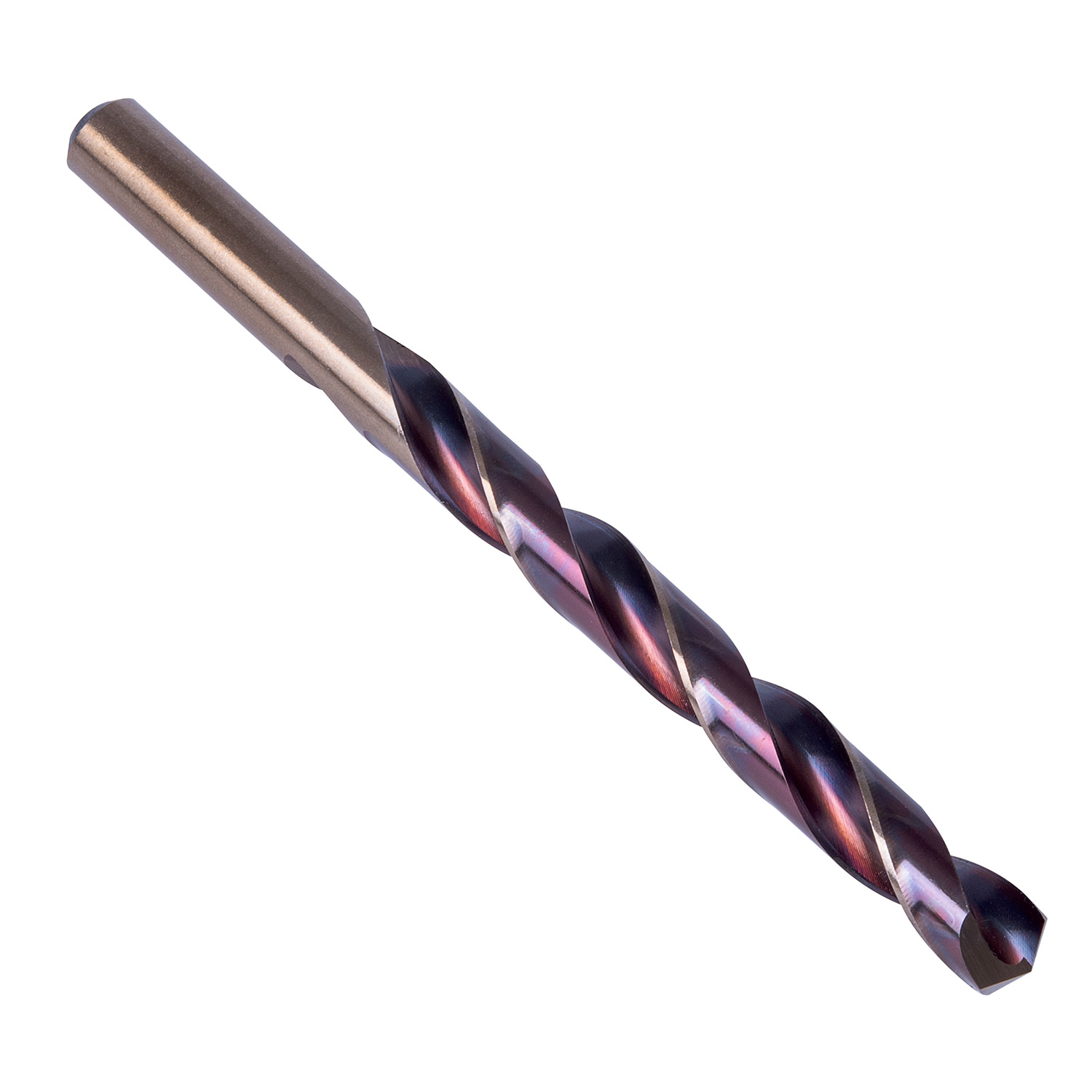

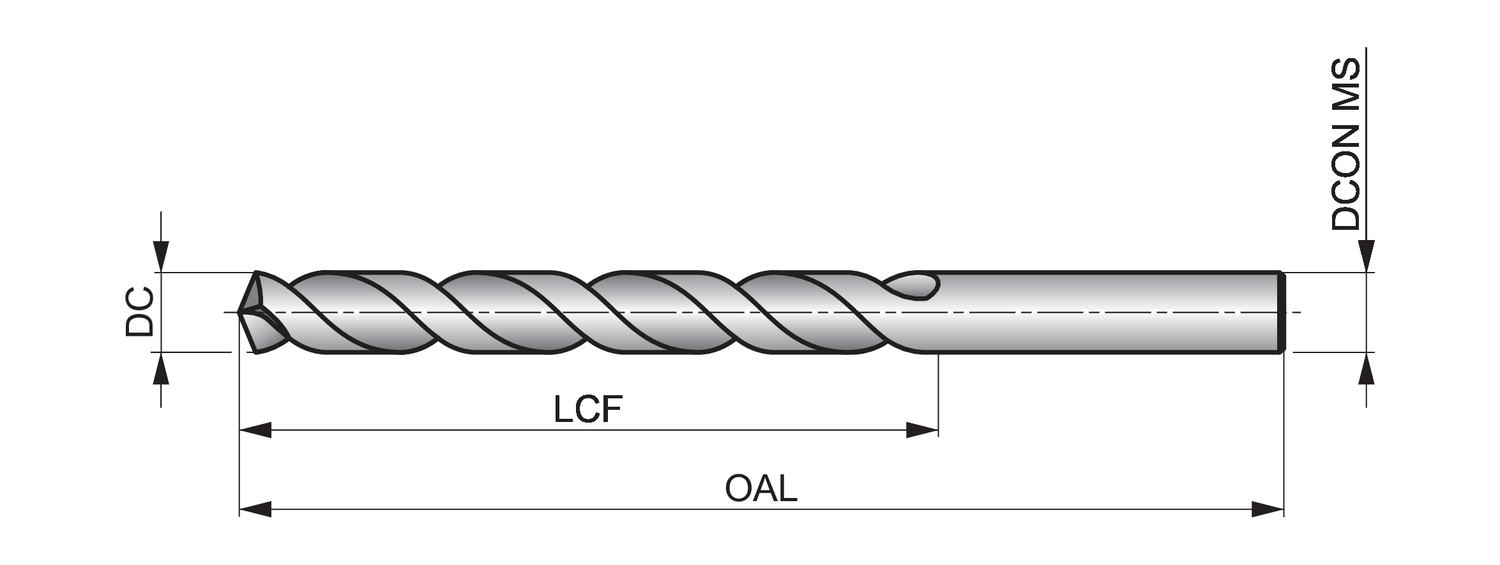

Jobber length drill with straight shank, diameter 0.2010" (N7) with an overall length of 3.5/8" and flute length of 2.7/16" according to ANSI standard with 135° split point, HSS with purple-bronze finish for 4xD drilling without pecking in steel and cast iron

• Product Name ISO: HX18N7
• Ordering Code ANSI: HX18N7
• EDP Number: 022107
• Coating: Purple/Bronze
• Material Code (BMC): HSS
• Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
