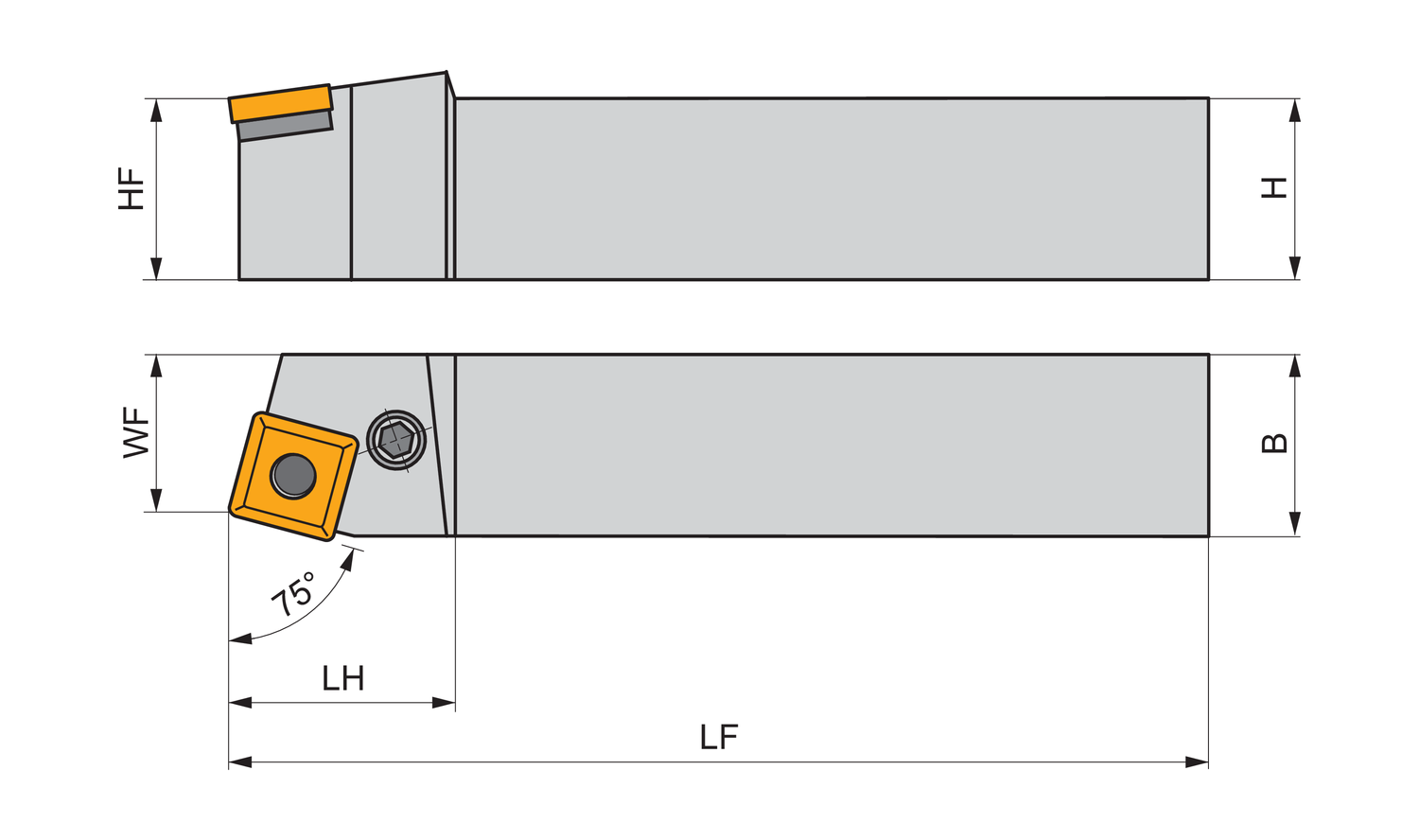

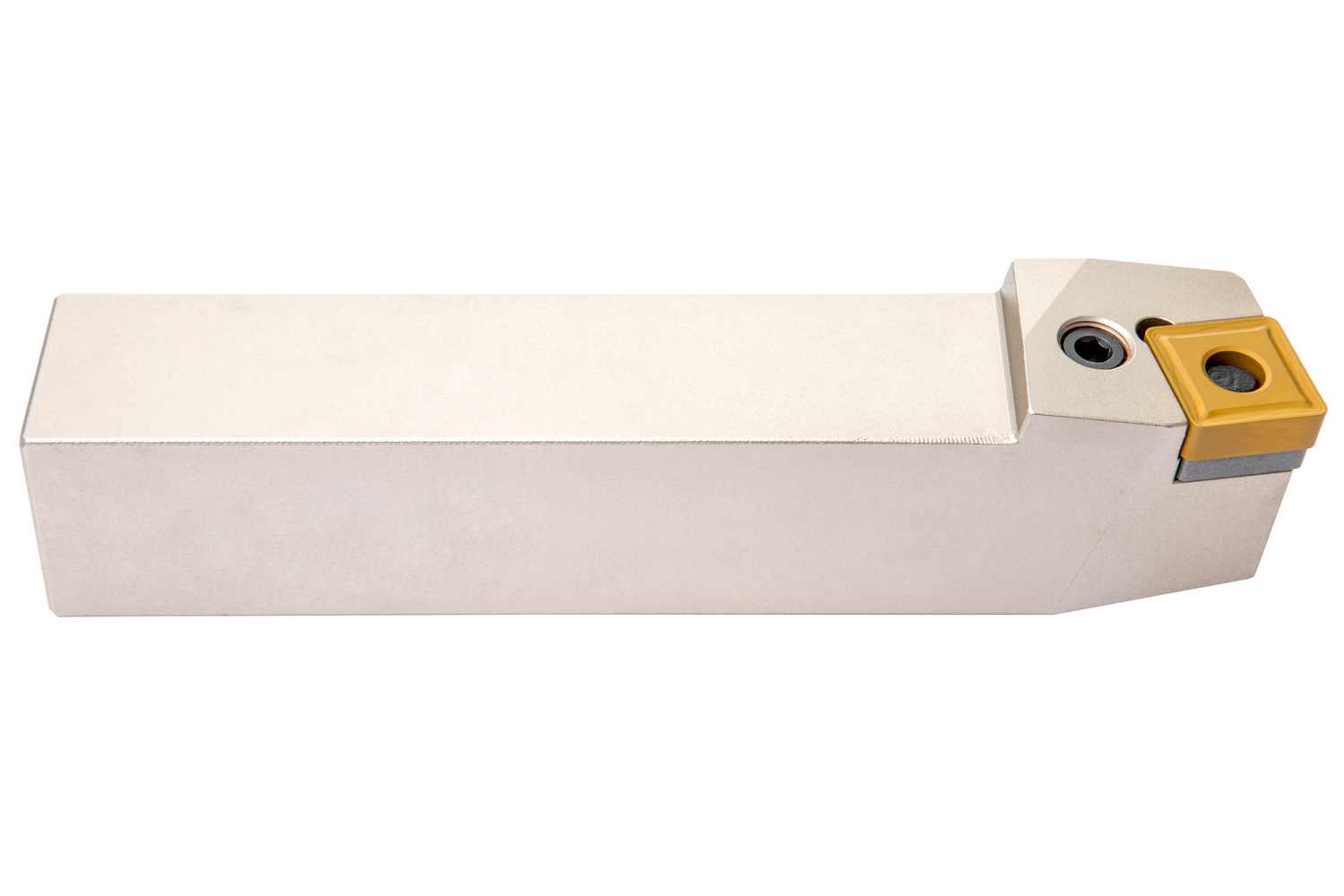

Lever lock turning tool for holding a square negative insert with an inscribed circle diameter of 19.05mm, 6.35mm thick (ISO designation SN.. 1906.. ), left hand 75° side cutting with straight shank, 32mm tool height x 32mm width x 170mm long for taper turning and longitudinal turning without shoulder
- Product Name ISO: PSBNL 3232 P 19
- Ordering Code ANSI: PSBNL 3232 P 19
- EDP Number: 6756958
- Material Application Priority Usage: H - Hardened materials (any engineering metal with a hardness > 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
Product Measurement Standard | Metric |
Head Length (Mm.) | 42 |
Direction of Tool | Left |
Clamping Type | Hole Clamping |
