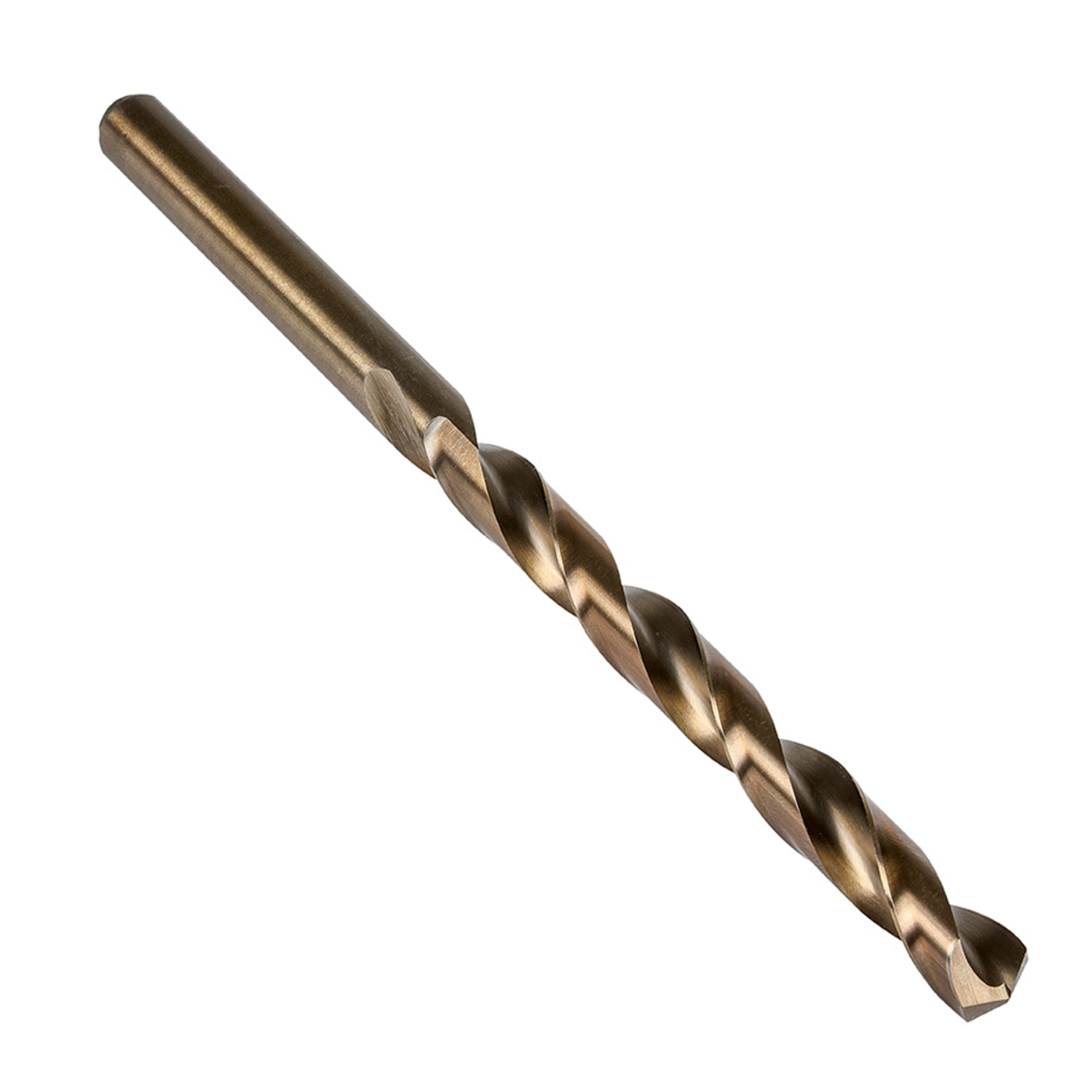

Long series drill with straight shank, diameter 0.2090" (N4) with an overall length of 6" and flute length of 3.5/8" according to ANSI standard with 135° split point, cobalt based HSS-E with bronze finish for 6xD drilling without pecking in steel, stainless steel, cast iron and super-alloy
- Product Name ISO: M52CON4
- Ordering Code ANSI: M52CON4
- EDP Number: 052304
- Coating: Bronze
- Material Code (BMC): HSS-E
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Inch |

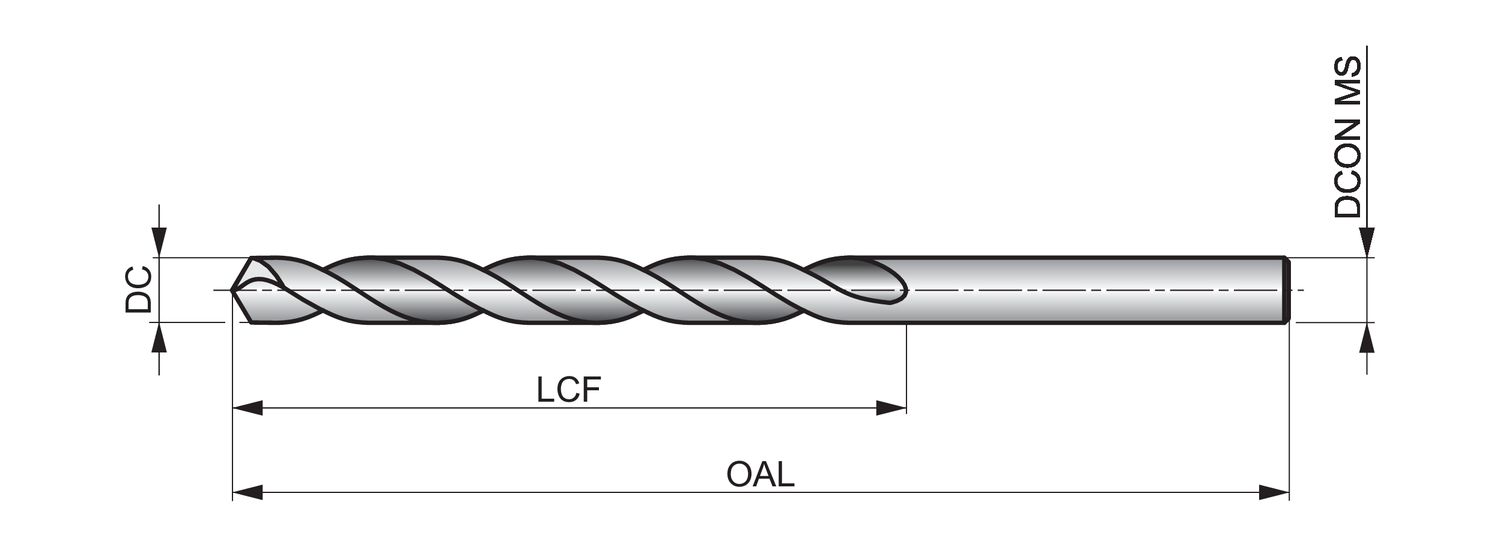

| Cutting Diameter (Mm.) | 5.31 |
| Cutting Diameter (In.) | 0.209 |
| Cutting Diameter Wire Gauge | N4 |
| Overall Length (Mm.) | 152.4 |
| Length Chip Flute (In.) | 3.625 |
| Connection Diameter (In.) | 0.209 |
| Overall Length (In.) | 6 |
| Material Code | HSS-E |
| Coating | Bronze |
| Shank | Cylindrical Shank |
| Point Angle | 135 |
| Cutting Direction | Right |
