Milling Insert - Chamfering TCMT 16-001328:M8330

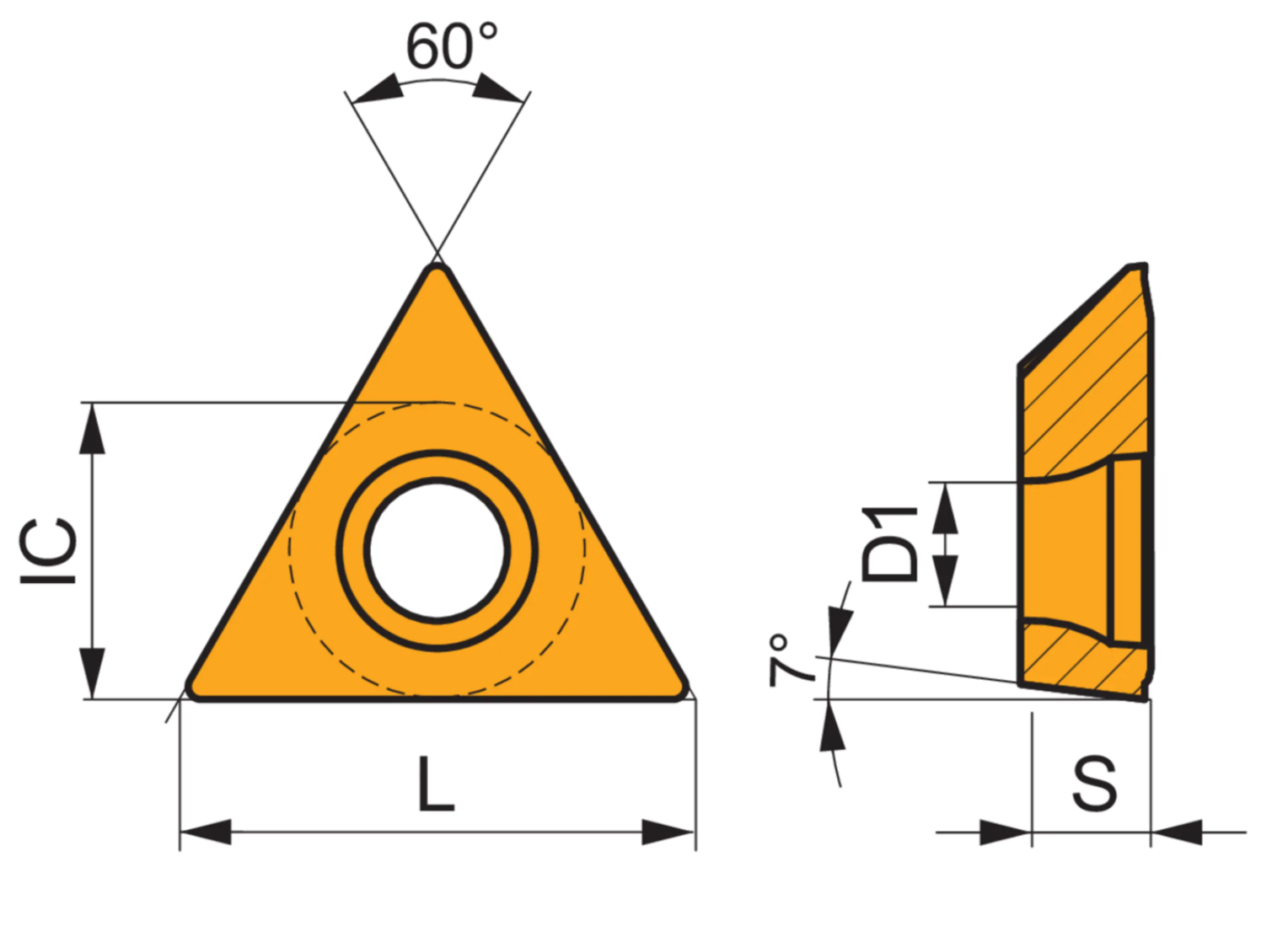

- Corner radius (RE): 0.4 mm
- Cutting edge length (L): 16.5 mm
- Fixing hole diameter (D1): 4.6 mm
- Inscribed circle diameter (IC): 9.525 mm
- Insert shape code (SC): T- Triangular 60° included angle
- Insert thickness (S): 3.97 mm
- Insert clearance code and angle: C 7°
- Insert Design: TCGT 16-S
- Insert Size: 16
- Insert Thickness: T3
- Insert Type: T
- Grade: M8330
- ANSI: TCMT16-001328:M8330
- Net Weight: 5.5 grams
- Gross Weight: 5.74 grams
- Product Number (SAP): 80033649
- EDP: 8057899
| Product Measurement Standard | Metric |
| Corner Radius (Mm.) | 0.4 |
| Fixing Hole Diameter (Mm.) | 4.6 |
| Inscribing Circle Dia. (Mm.) | 9.525 |
| Insert Thickness (Mm.) | 3.97 |
