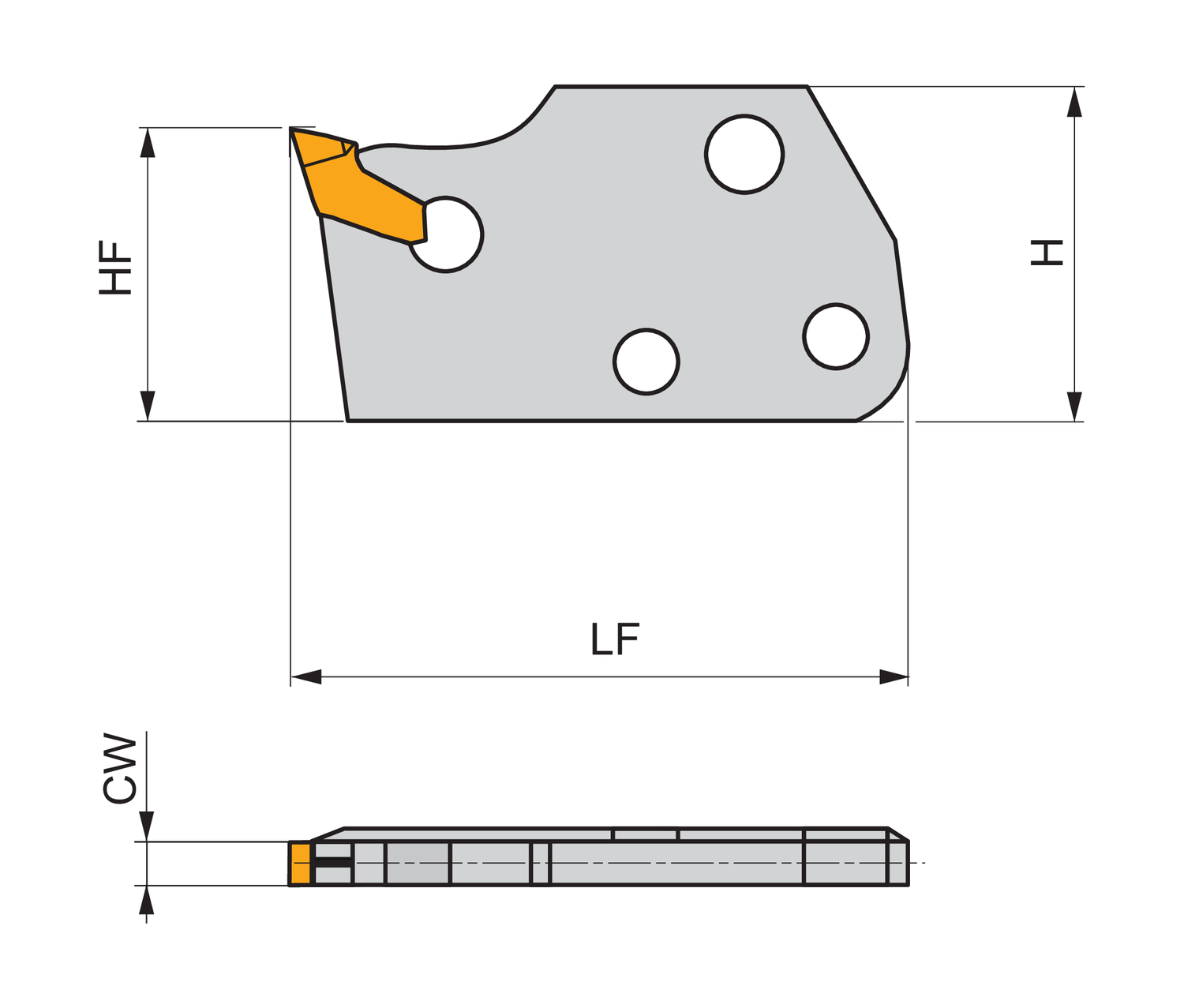

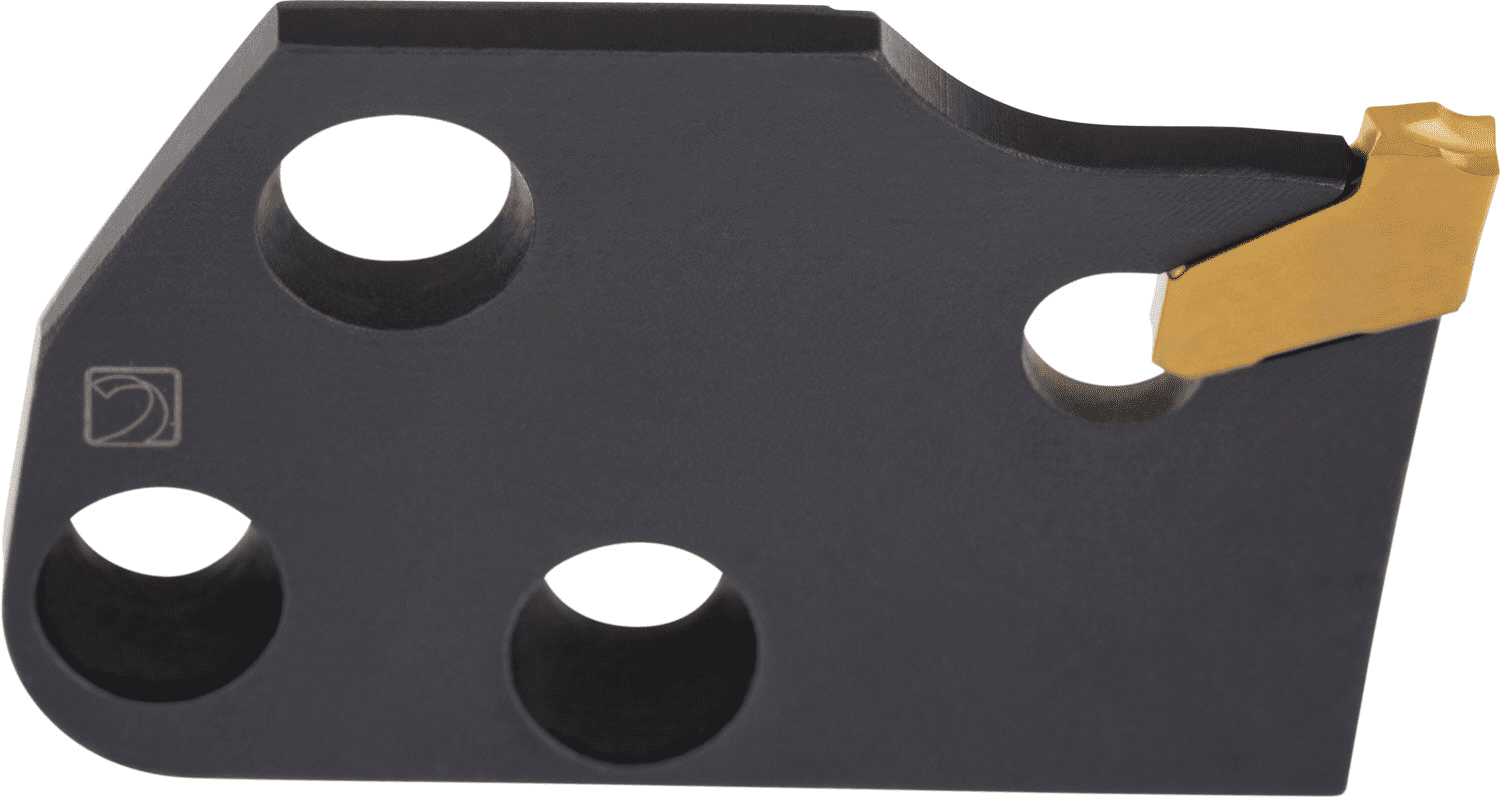

Spring clamp parting and grooving tool blade for holding a single ended insert with 3mm cutting width (designation LFMX 3.1-. ), tool style assembly with MS-EN.. (KMP)(S), left handed with insert parallel to the shank for a maximum grooving depth of 20mm, with a counter clockwise curved blade for face grooving a diameter range of 100 and 155mm

• Product Name ISO: XLXFL 250220-3.00-100
• Ordering Code ANSI: XLXFL 250220-3.00-100
• EDP Number: 6756346
• Material Application Priority Usage: H - Hardened materials (any engineering metal with a hardness > 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), N - Non-ferrous metals (metals including alloys without an appreciable amount of iron), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
