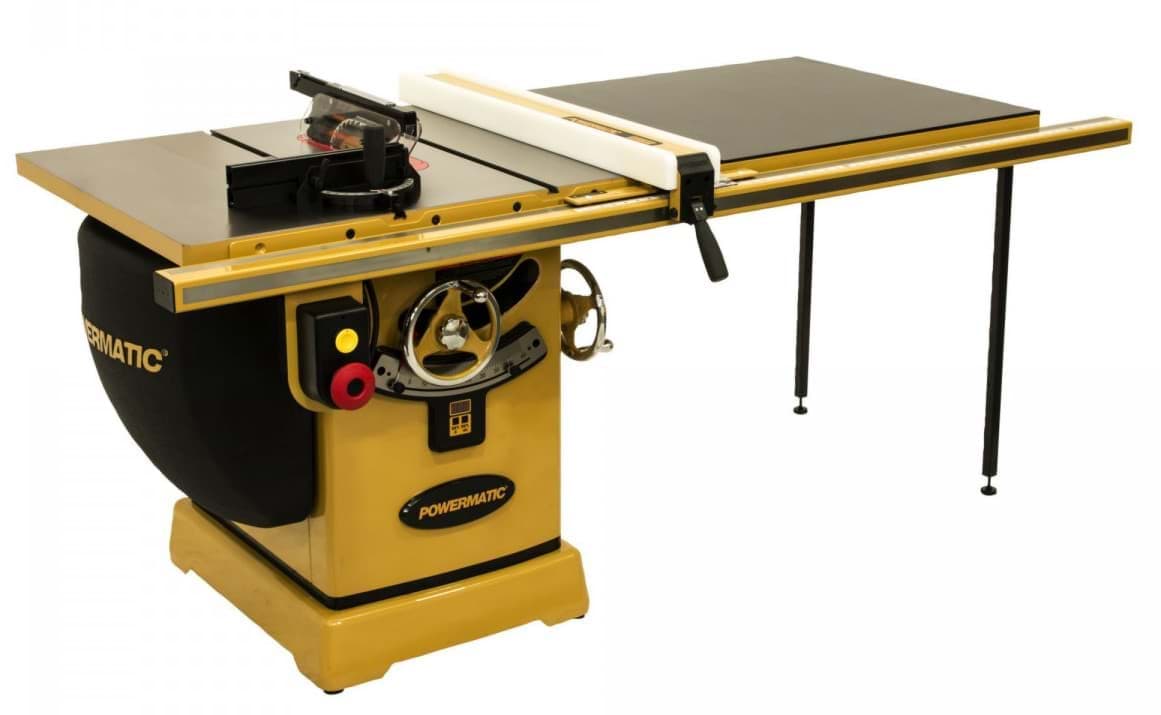

Powermatic 2000B table saw - 5HP 3PH 230/460V 50" RIP w/Accu-Fence
- Integrated Digital Read Out for precise bevel cuts
- Newly designed integrated hydraulic castor system with greater travel than previous model
- Matching beveled edge between table and extension wings
- Newly designed Arbor lock for quick and easy blade changes
- Improved dust collection inside and outside of the cabinet
- Quick release riving knife lever for hassle free riving knife changes
- Wider stance, box trunnion design
- Newly designed Accu-Fence® system for precision cuts
- Following strict guidelines and electrical requirements, these Powermatic PM2000B Table Saws are CSA Certified
| Style (Type) | Cabinet |
| Prewired Voltage (V.) | 230 |
| Table Height from Floor (In.) | 35 |
| Maximum Diameter of Dado (In.) | 8 |
| Arbor Speed (RPM) | 4500 |
| Table Size (In.) | 22 x 30-1/2 |
| Maximum Width of Dado (In.) | 13/16 |
| Motor Power (HP) | 5 |
| Blade Diameter (In.) | 10 |
| Table Type | Cast Iron |
| Maximum Rip Right of Blade (In.) | 50 |
| Motor Voltage (V.) | 230/460 |
| Dust Port Outside Diameter (In.) | 4 |
| Table T-Slot (In.) | 3/4 x 3/8 |
| Motor Phase | 3 |
| Arbor Diameter (In.) | 5/8 |
| Recommended Circuit Size (Amps.) | 20 |
| Dust Collection Minimum CFM Required (CFM) | 400 |
| Motor Current (Amps) | 13/6.5 |
| Table Size with Extensions (In.) | 42 x 30-1/2 |
| Maximum Depth of Cut at 90 Degrees (In.) | 3-1/8 |
| Maximum Depth of Cut at 45 Degrees (In.) | 2-1/8 |
| Table in Front of Saw Blade at Maximum Depth of Cut (In.) | 11-1/4 |
There are no reviews yet
| Manufacturer warranty | ||
| 5 Year | ||
| Warranty details | ||
|
|
||
