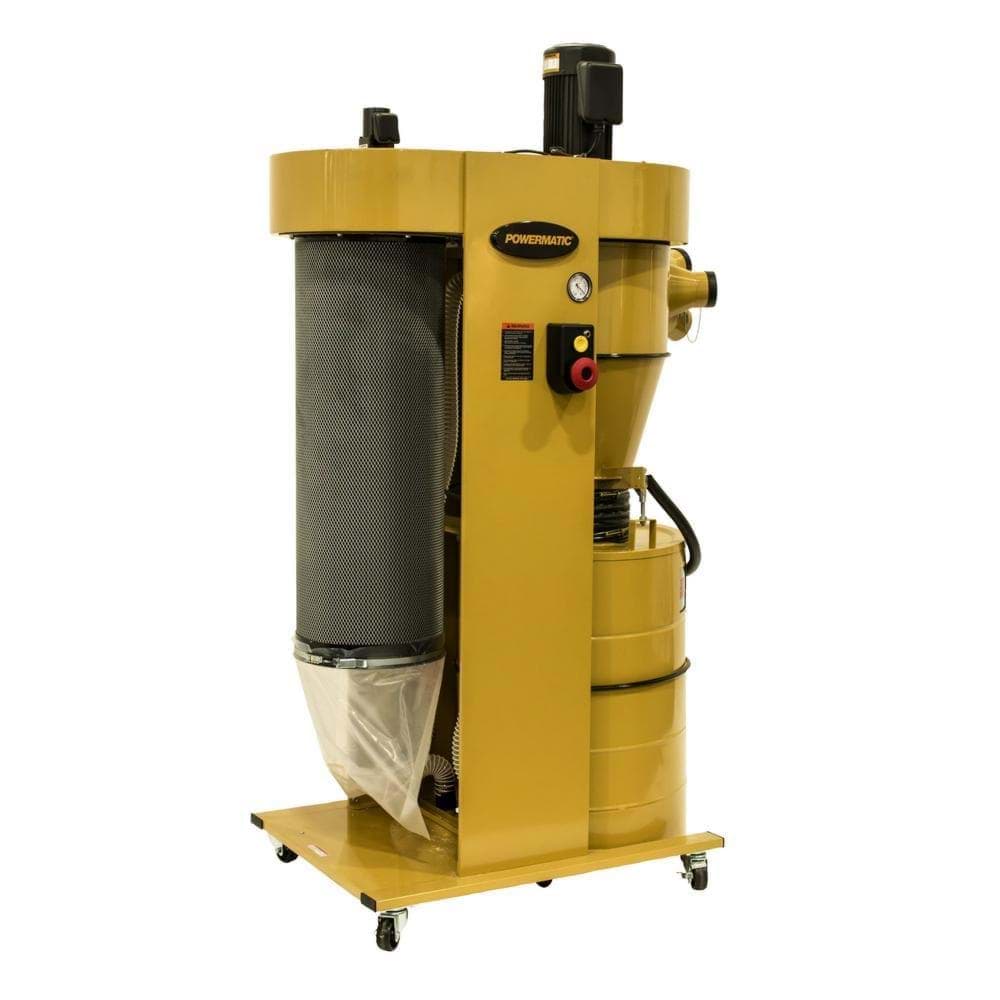

PM2200 Cyclonic Dust Collector - with HEPA Filter Kit
- Proprietary Auto-Cleaning HEPA Filter technology for better filtration and longer filter life
- HEPA Filter collects 99.97% of all particles passing through as small as 0.3 Micron
- Powerful 3 HP motor moves 1,543 Cubic Feet if air per Minute
- Integrated vacuum lines in the drum retain the bag without the need for a separate bag frame
- One-handed drum release allows for simple removal of the drum for bag changes
- Vacuum pressure gauge for greater user feedback
| Motor Voltage (V.) | 230 |
| 3-Hose Connection Diameter (In.) | 4 |
| Impeller Diameter (In.) | 15.8 |
| Recommended Circuit Size (Amps.) | 30 |
| Motor Current (Amps) | 16 |
| Static Pressure (WC) | 14.13 |
| Number of Air Inlets | 1(8") or 3(4") |
| 1-Hose Connection Diameter (In.) | 8 |
| Motor Phase | 1 |
| Motor Power (HP) | 3 |
| Sound Rating (DB) | 78 |
| Efficiency (Micron) | 0.3 |
| Collection Bag Capacity (Cu. Ft.) | 55 |
| Collection Bag Length (In.) | 31-3/8 |
| Impeller Material | Steel |
There are no reviews yet
| Manufacturer warranty | ||
| 5 Year | ||
| Warranty details | ||
|
|
||
