RSD Technologies Long Point Live Center
The RSD Technologies Long Point Live Center is specifically designed for applications requiring additional clearance and enhanced workpiece accessibility. Featuring an extended point profile with a reduced neck diameter behind the center, this design allows cutting tools to machine closer to the supported workpiece without interference from the center body.
Manufactured from hardened, precision-ground components and supported by a robust bearing system, the Long Point Live Center delivers exceptional accuracy, rigidity, and durability while providing increased reach for complex machining operations. The coolant deflector helps shield critical bearing components from coolant and chip contamination, ensuring reliable performance in demanding production environments.
This design is especially beneficial when machining small diameters, intricate profiles, or parts requiring tool access near the center support point.
Features & Benefits
- Extended center point provides increased workpiece access
- Reduced neck diameter allows tooling to machine closer to the center
- Precision-ground point for maximum accuracy
- Heavy-duty bearing system ensures smooth operation
- Integrated coolant deflector protects internal components
- Hardened and ground construction for long service life
- Excellent concentricity and rotational accuracy
- Ideal for close-clearance machining applications
Typical Applications
- Small diameter shaft machining
- Close-clearance turning operations
- Complex profile turning
- Aerospace components
- Medical components
- Precision CNC machining
- Long, slender workpieces requiring additional support
Why Choose a Long Point Center?
The extended point and relieved neck design provide additional clearance between the cutting tool and live center body, allowing operators to machine features closer to the supported end of the workpiece. This reduces setup limitations, improves tool access, and increases machining flexibility without sacrificing rigidity or accuracy.

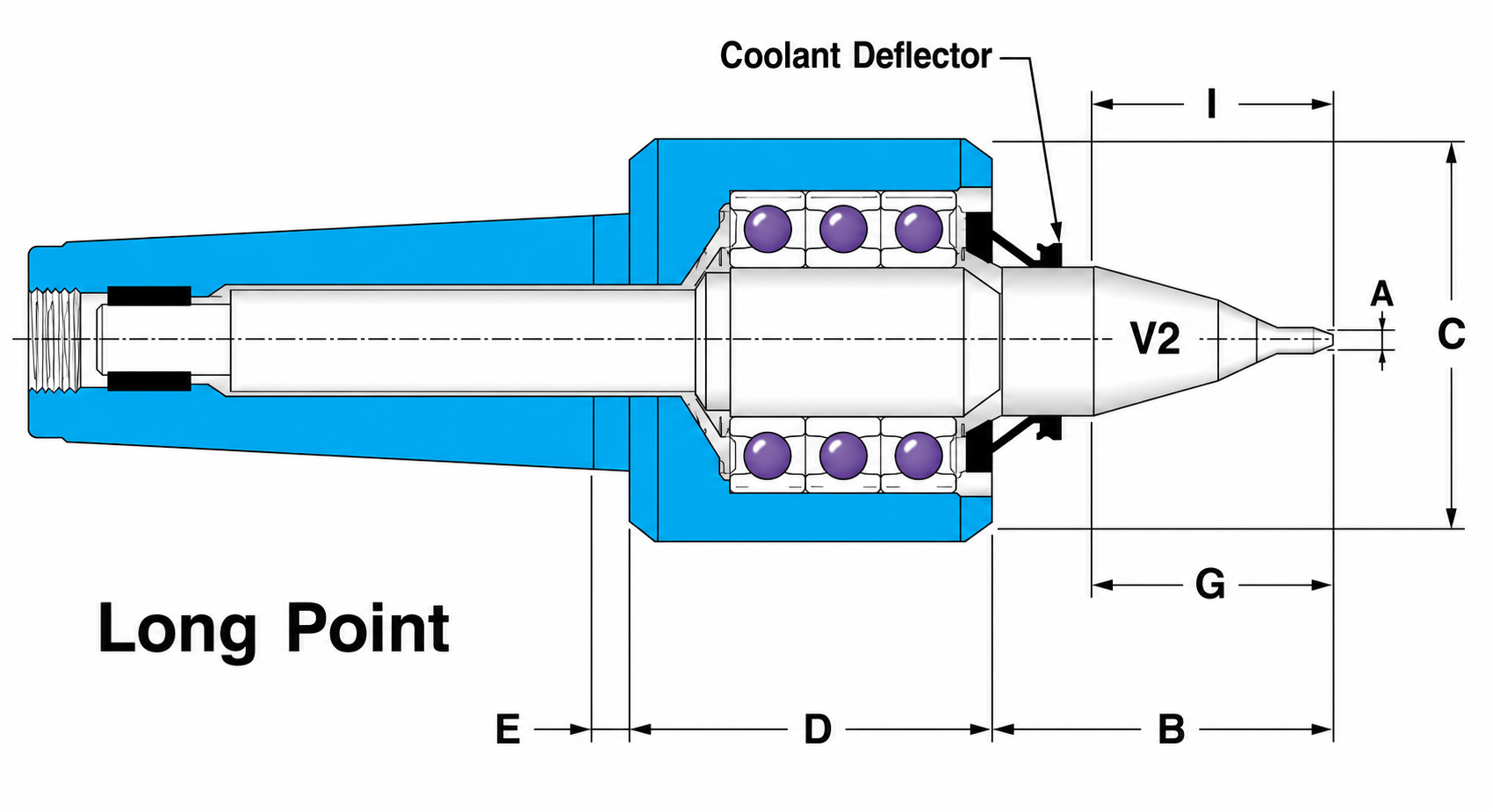

Specifications
- MT: 4
- A: 0.50
- B: 2.63
- C: 3.07
- D: 2.78
- E: 0.36
- G: .75
- V2: 60
- I: 1.96
