RSD Technologies Long Point Live Center

The RSD Technologies Standard Point Live Center is specifically designed for applications requiring additional clearance and enhanced workpiece accessibility. Featuring an extended point profile with a reduced neck diameter behind the center, this design allows cutting tools to machine closer to the supported workpiece without interference from the center body.

Manufactured from hardened, precision-ground components and supported by a robust bearing system, the Standard Point Live Center delivers exceptional accuracy, rigidity, and durability while providing increased reach for complex machining operations. The coolant deflector helps shield critical bearing components from coolant and chip contamination, ensuring reliable performance in demanding production environments.

This design is especially beneficial when machining small diameters, intricate profiles, or parts requiring tool access near the center support point.

Features & Benefits

• Precision-ground point for maximum accuracy
• Heavy-duty bearing system ensures smooth operation
• Integrated coolant deflector protects internal components
• Hardened and ground construction for long service life
• Excellent concentricity and rotational accuracy
• Ideal for close-clearance machining applications

Typical Applications

• Small diameter shaft machining
• Close-clearance turning operations
• Complex profile turning
• Aerospace components
• Medical components
• Precision CNC machining
• Long, slender workpieces requiring additional support

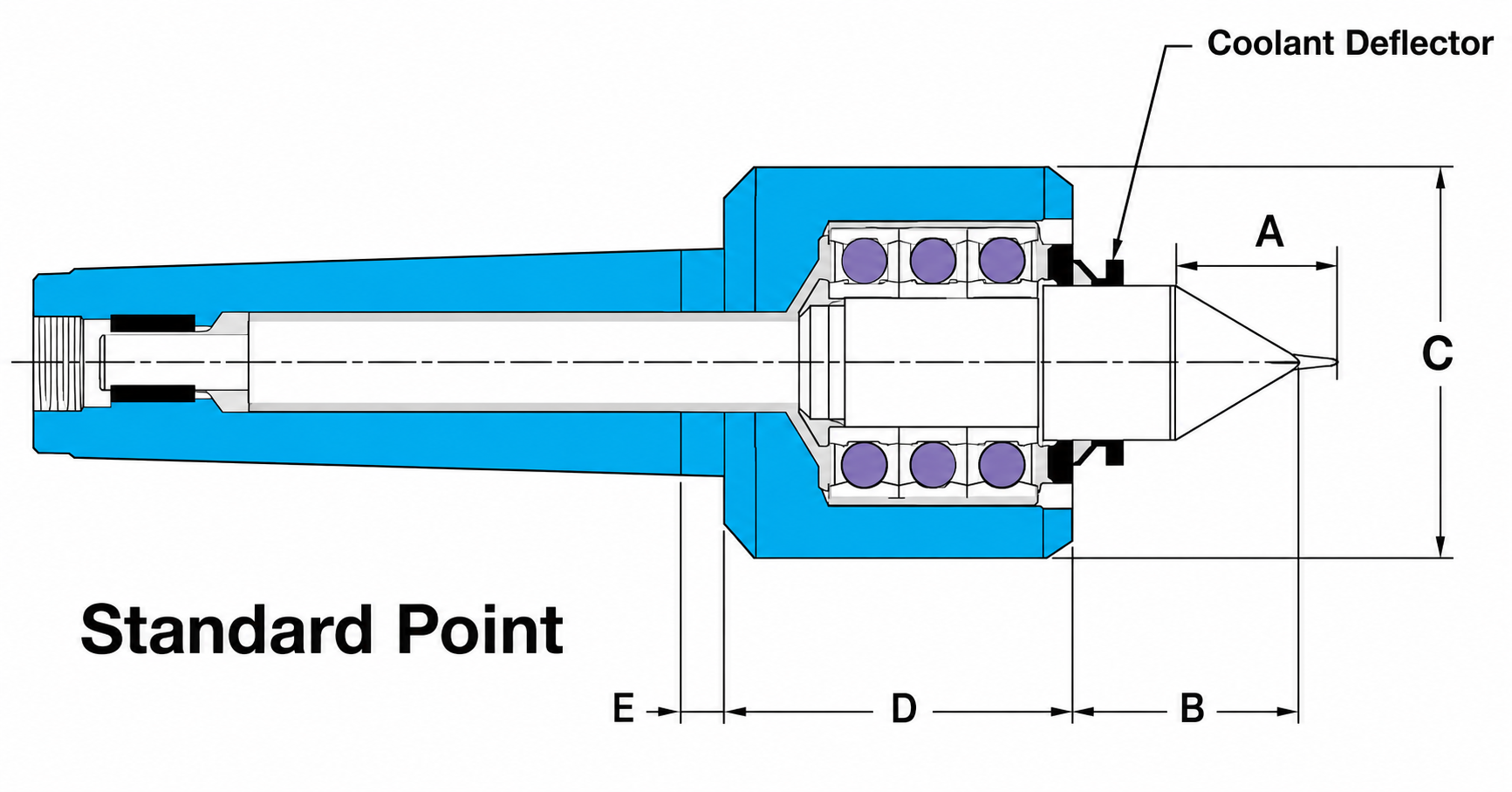

Specifications

• MT:  4
• A:  1.38
• B:  1.82
• C:  3.07
• D:  2.78
• E:  0.36
