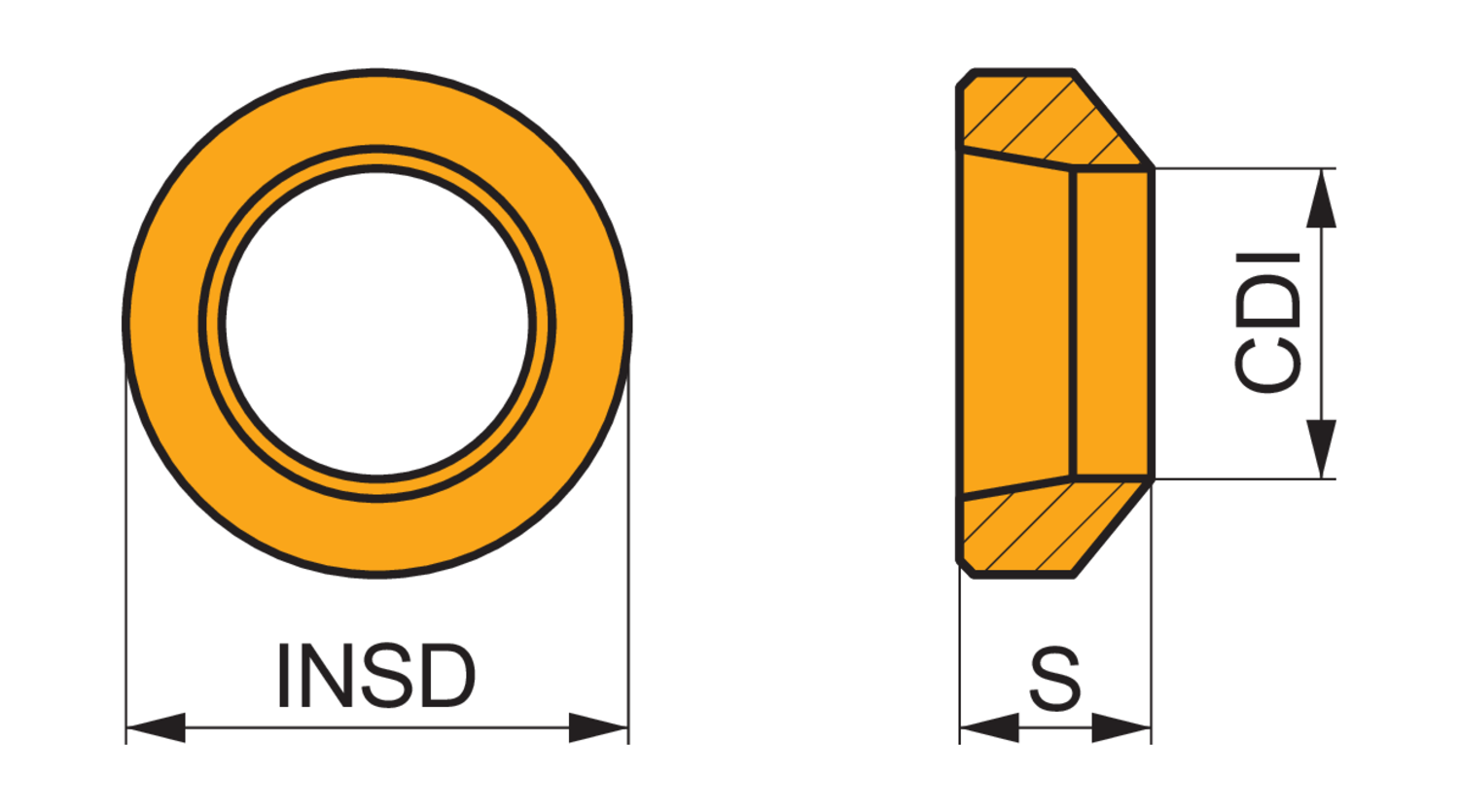

Scarfing ring with an outside diameter of 10mm, an inside diameter of 6mm, 5mm thick and a working radius of 6.8mm for tube diameters from 17 to 22mm, T9335 MT-CVD coated functionally graded WC-Co carbide within ISO-grade ranges P20-P45 and M15-M40 for deburring the inside of steel and stainless-steel tubes and pipes
- Product Name ISO: PSR0-5-R6,5:T9335
- Ordering Code ANSI: PSR0-5-R6,5:T9335
- EDP Number: 6874356
- Coating: T9335
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Product Measurement Standard | Metric |
| Insert Dia. (Mm.) | 10 |
| Insert Thickness (Mm.) | 5 |
| Coating | T9335 |
