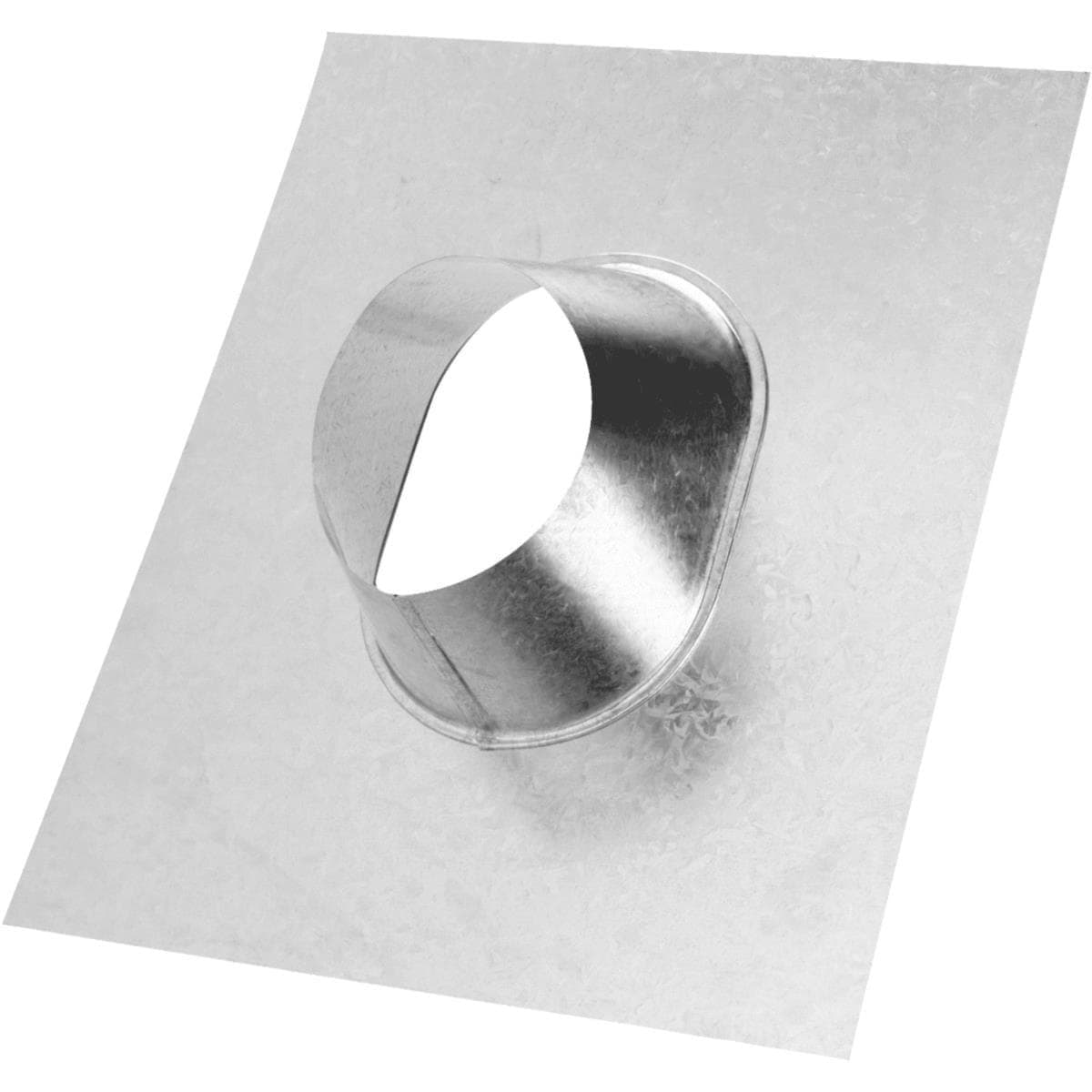

Used where the vent passes through a roof. Flat to 6/12. A = 4". C = 3-1/2" minimum flange dimension. Size refers to the inside diameter of the pipe or fitting. The outside diameter of RV is approximately 1/2" larger. Type B gas vent.
Size | 3" |
A Size | 3-1/2" |
B Size | 14-7/8" |
C Size | 12-1/4" |
D Size | 6-11/16" |
Material | Aluminum/Steel |
Temperature Range | 550 F |
Grade | UL Listed |
