Single ended keyway and slotting insert for broaching a width of 3mm within tolerance class D10, grade 333TN PVD coated HSS within ISO-grade ranges P45-P50 for machining of steel in combination with a PHZ…-06 size broach
- Product Name ISO: HZ90 0604-30 D10:333TN
- Ordering Code ANSI: HZ90 0604-30 D10:333TN
- EDP Number: 6755484
- Coating: 333TN
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)

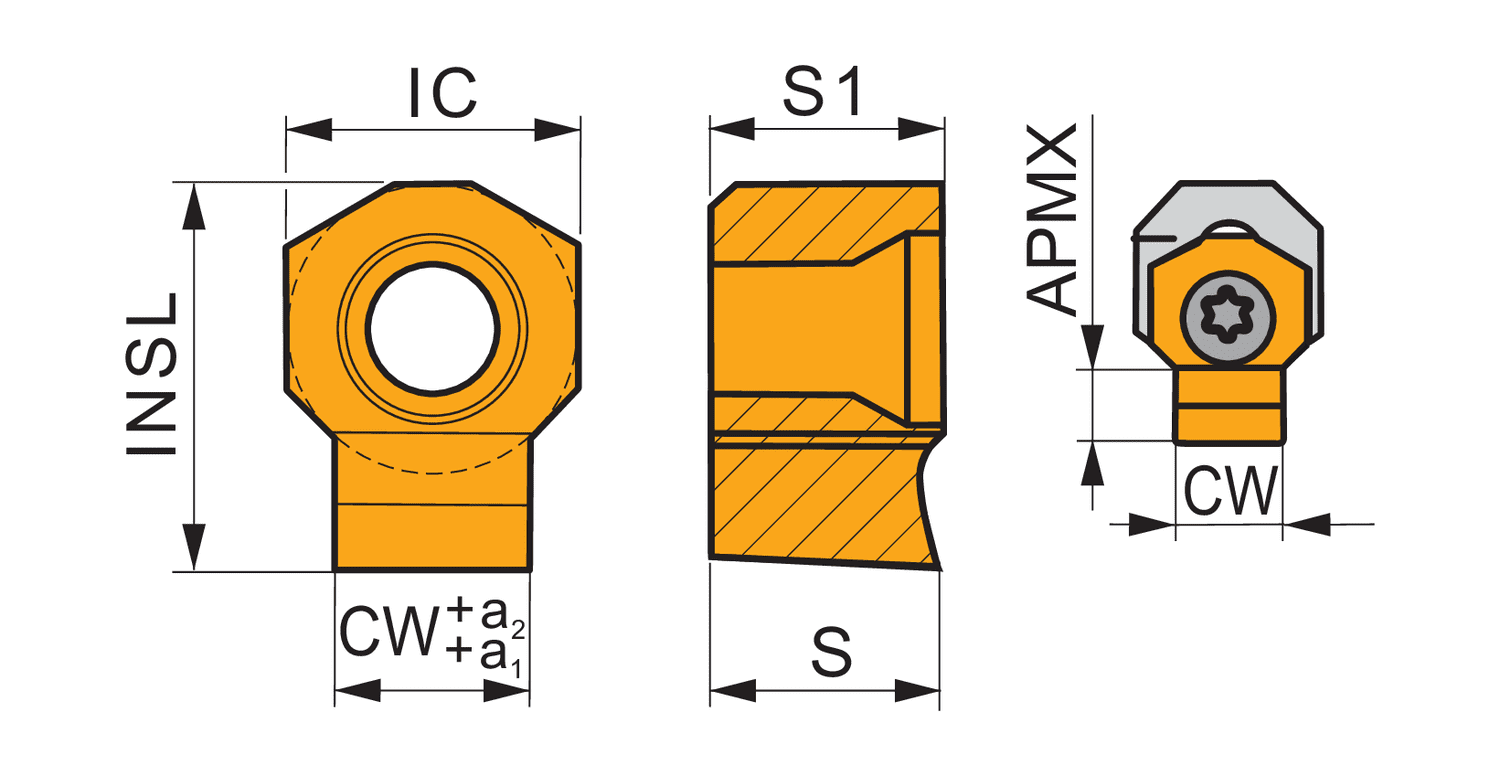

| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 1.6 |
| Inscribing Circle Dia. (Mm.) | 6 |
| Insert Length (Mm.) | 7.5 |
| Insert Thickness (Mm.) | 4.66 |
| Max Depth of Cut (In.) | 0.063 |
| Cutting Width Upper Tolerance (Mm.) | 0.06 |
| Cutting Width Lower (Mm.) | 0.02 |
| Coating | 333TN |
