Single ended keyway and slotting insert for broaching a width of 8mm within tolerance class C11, grade 333TN PVD coated HSS within ISO-grade ranges P45-P50 for machining of steel in combination with a PHZ…-10 size broach
- Product Name ISO: HZ 1006-80 C11:333TN
- Ordering Code ANSI: HZ 1006-80 C11:333TN
- EDP Number: 6755404
- Coating: 333TN
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)

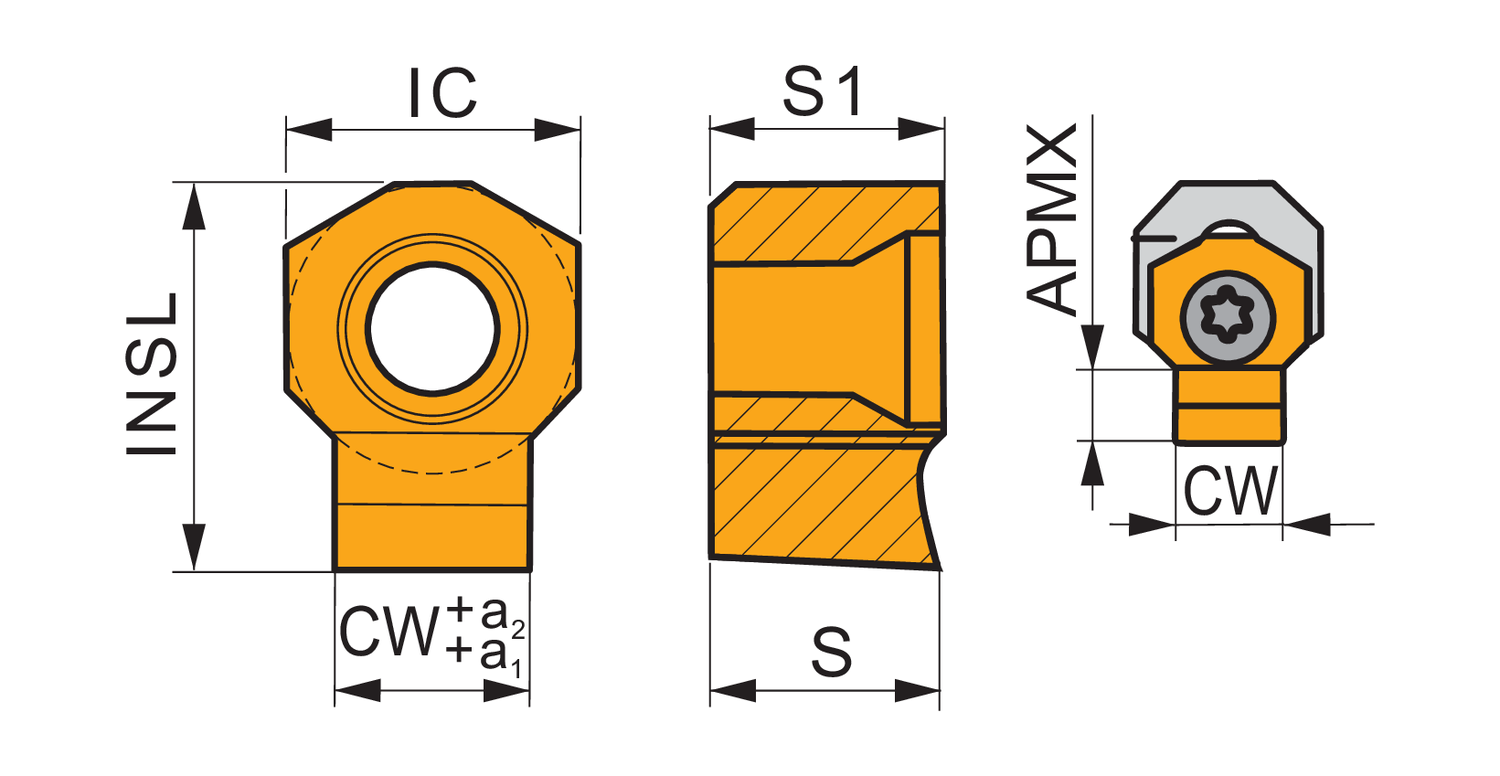

| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 5.2 |
| Inscribing Circle Dia. (Mm.) | 10 |
| Insert Length (Mm.) | 13.5 |
| Insert Thickness (Mm.) | 6.25 |
| Max Depth of Cut (In.) | 0.205 |
| Cutting Width Upper Tolerance (Mm.) | 0.17 |
| Cutting Width Lower (Mm.) | 0.08 |
| Coating | 333TN |
