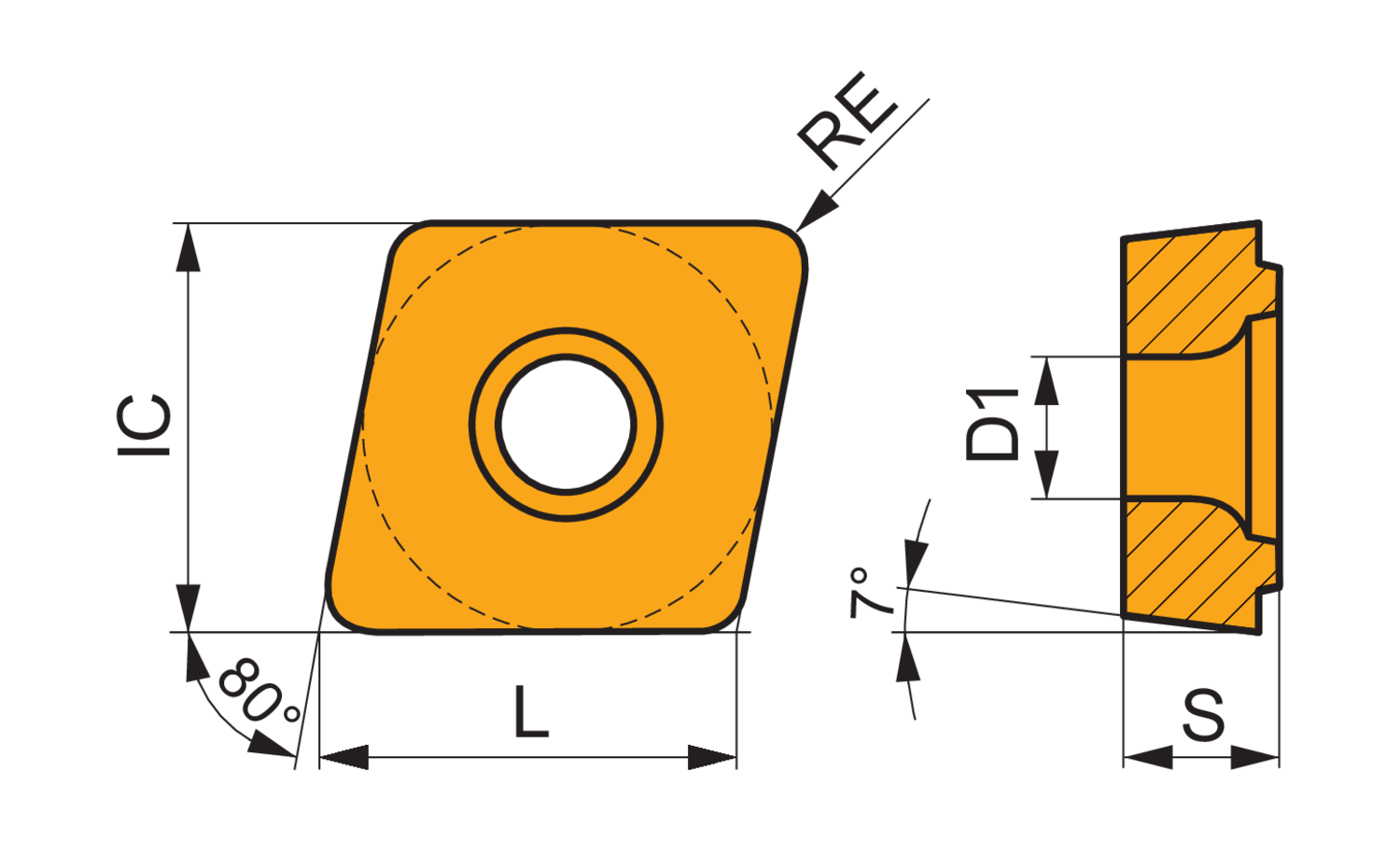

Single-sided milling insert CCMX 09T3, 80° rhomboid for a T-slot milling cutter of 1.6142", with .0315" corner radius, an indexing accuracy according to ISO-tolerance class-M and TS1 geometry with rounded cutting edges and facet, M8340 PVD coated fine grained WC-Co carbide within ISO-grade range P25-P50 for machining of steel with T-slot mill F-SCC

• Product Name ISO: CCMX 09T308S-TS1:M8340
• Ordering Code ANSI: CCMX 09T308S-TS1:M8340
• EDP Number: 6800826
• Coating: M8340
• Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
