Single-sided milling insert RCMT 1606 with chip-breakers, round for a maximum depth of cut of .315", with " corner radius, an indexing accuracy according to ISO-tolerance class-M and M geometry with rounded cutting edges and facet, M9340 MT-CVD coated WC-Co carbide within ISO-grade range M30-M40 for machining of stainless-steel with copy face mills SRC16
- Product Name ISO: RCMT 1606MOSN-M:M9340
- Ordering Code ANSI: RCMT 1606MOSN-M:M9340
- EDP Number: 6755680
- Coating: M9340
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)

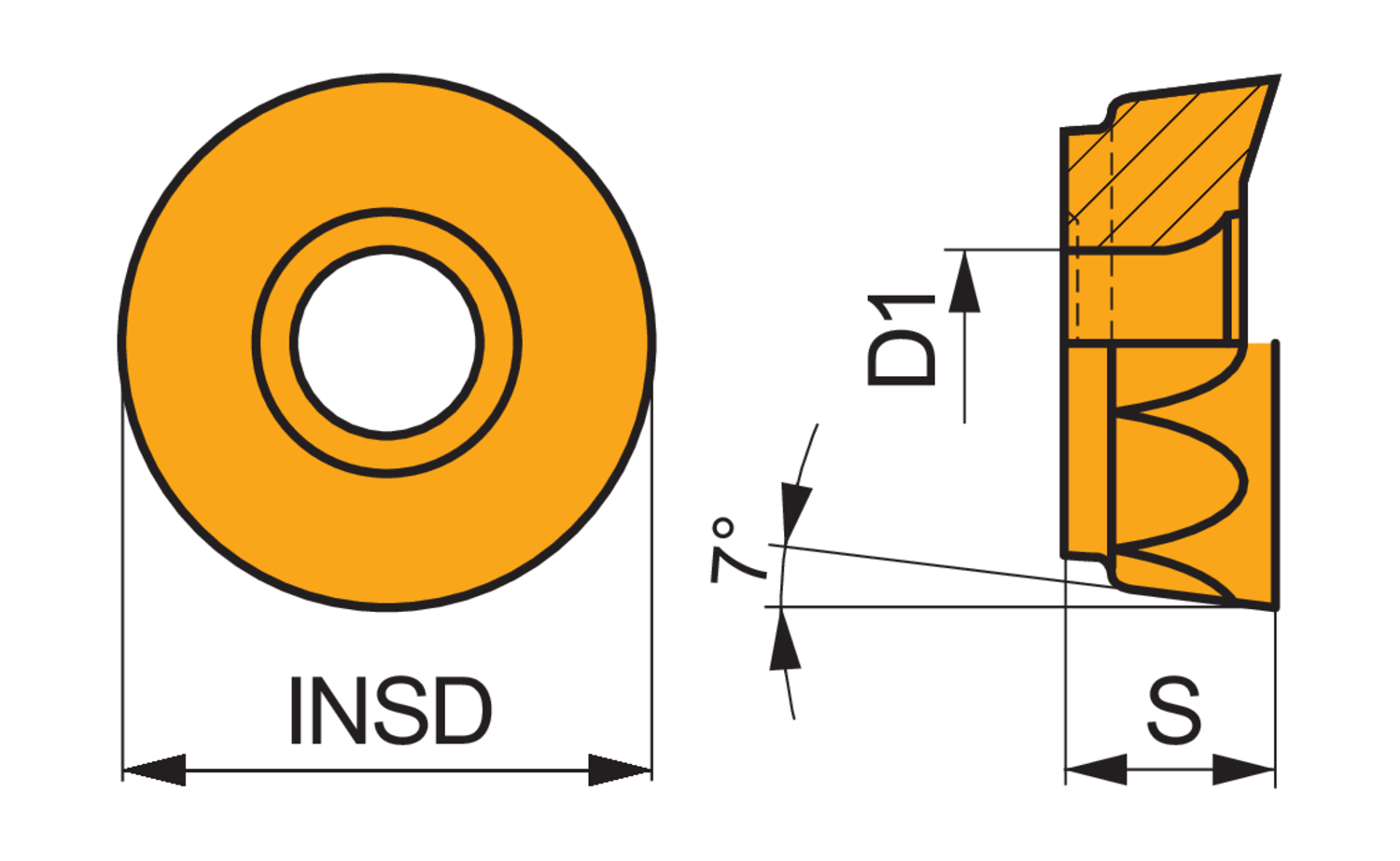

| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 8 |
| Fixing Hole Diameter (Mm.) | 5.5 |
| Insert Dia. (Mm.) | 16 |
| Insert Thickness (Mm.) | 6.35 |
| Max Depth of Cut (In.) | 0.315 |
| Coating | M9340 |
