Single-sided milling insert RCMT 2006 with chip-breakers, round for a maximum depth of cut of .3937", with " corner radius, an indexing accuracy according to ISO-tolerance class-M and M geometry with rounded cutting edges and facet, M9325 MT-CVD coated WC-Co carbide for machining of steel and cast-iron with copy face mills SRC20
- Product Name ISO: RCMT 2006MOSN-M:M9325
- Ordering Code ANSI: RCMT 2006MOSN-M:M9325
- EDP Number: 6756004
- Coating: M9325
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)

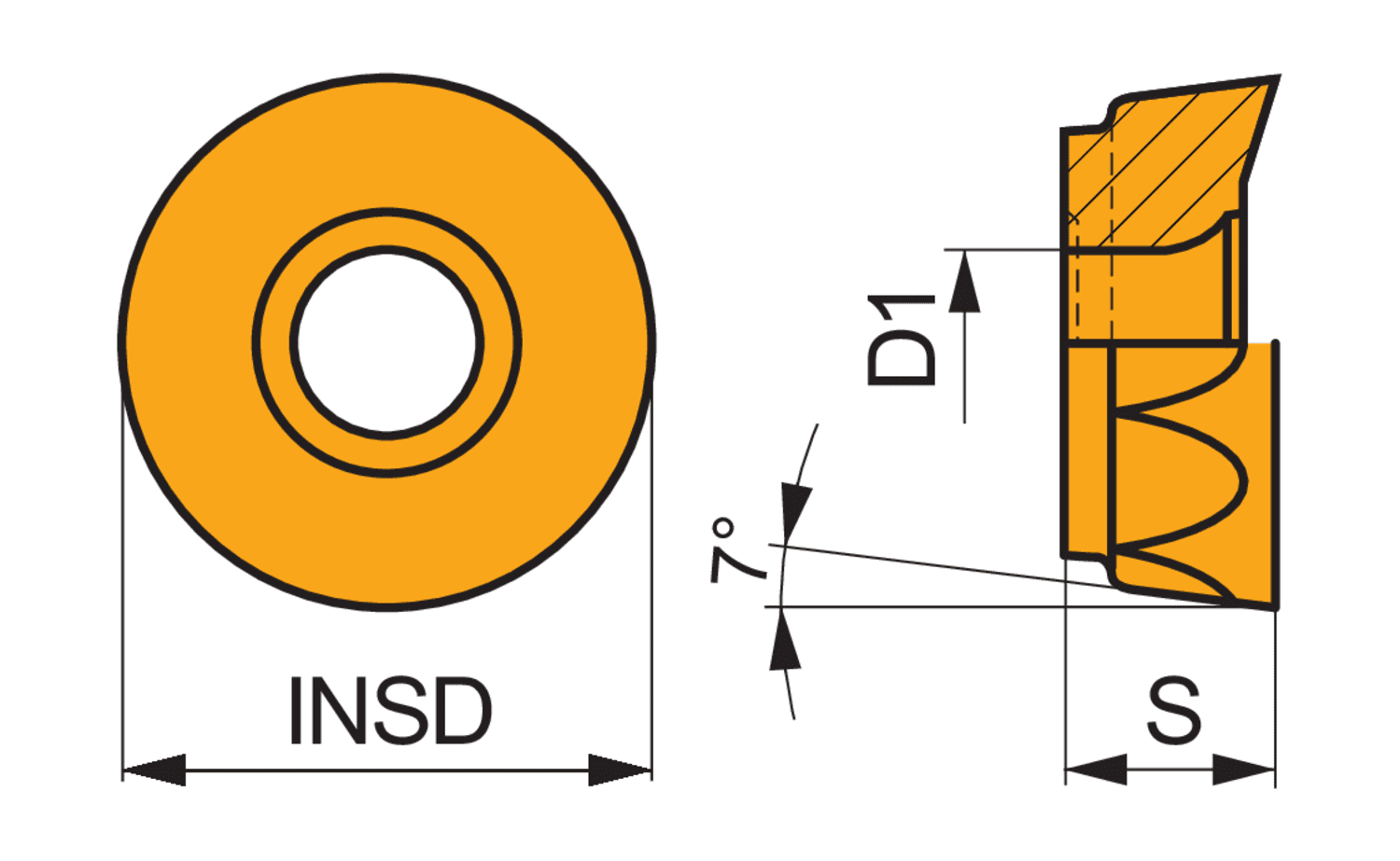

Product Measurement Standard | Metric |
Depth of Cut Maximum (Mm.) | 10 |
Fixing Hole Diameter (Mm.) | 6.5 |
Insert Dia. (Mm.) | 20 |
Insert Thickness (Mm.) | 6.35 |
Max Depth of Cut (In.) | 0.394 |
Coating | M9325 |
