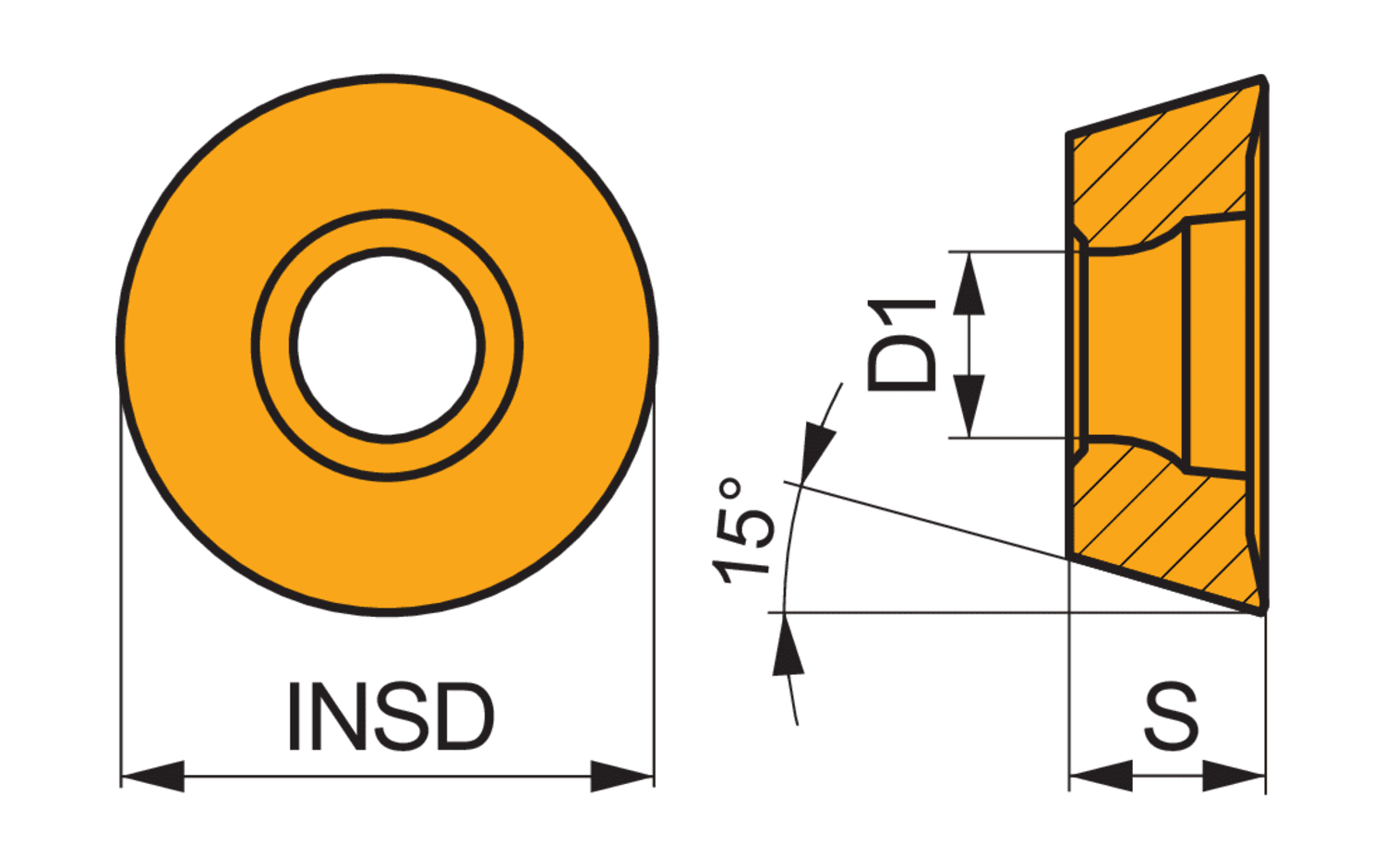

Single-sided milling insert RDGT 12T3 with chip-breakers, round for a maximum depth of cut of .1181", with " corner radius, an indexing accuracy according to ISO-tolerance class-G with cutting edges with facet, M9340 MT-CVD coated WC-Co carbide within ISO-grade range M30-M40 for machining of stainless-steel with copy face mills SRD12
- Product Name ISO: RDGT 12T3MOT:M9340
- Ordering Code ANSI: RDGT 12T3MOT:M9340
- EDP Number: 6755647
- Coating: M9340
- Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 3 |
| Fixing Hole Diameter (Mm.) | 3.9 |
| Insert Dia. (Mm.) | 12 |
| Insert Thickness (Mm.) | 3.97 |
| Max Depth of Cut (In.) | 0.118 |
| Coating | M9340 |
